DORMA ITS96- FL Concealed Cam Action Free Swing Door Closer EN3-6 (HUKP-0304-07) - Door Control

Verified by manufacturer 5 months ago

Hafele UK Ltd

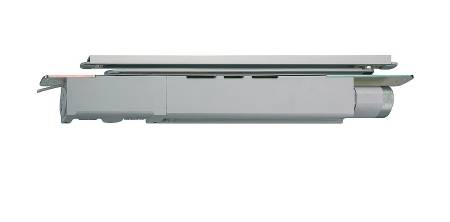

Concealed cam action free swing door closer with guide rail.

Jump to:
+44 (0)800 171 2907 Website

Application

  • Suitable for door widths up to 1400 mm.
  • Suitable for up to one hour on timber door sets.
  • Not suitable for metal door leaves.
  • Not to be fitted to timber door sets without Intumescent protection.

Description

Concealed cam action free swing door closer with guide rail.



Features and benefits:

  • Dormakaba ITS96-FL free swing closer and guide rail.
  • Mechanical opening angle restraint, E-Hydraulic H/open 24 V d.c.
  • Minimum 54 mm thick.
  • Closing force and latching action infinitely variable.
  • Cam action technology for rapidly decreasing opening resistance.
  • EN 3-6 Max door opening angle approximately 120°.
  • Maximum door leaf 180 kg.

General information

Color

Black

Bronze

Gold

Silver

Manufacturer guidance

RAL colour available to special order.

Finish

Satin

Matt

Polished

Material

Stainless steel

Shape

Rectangle

Length

476 mm

Width

40 mm

Height

56 mm

Warranty description

Seven year

Uniclass

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/12 Controlled door closers

P21/410 Controlled door closers

Specification data - Controlled door closers

Standard

To BS EN 1154.

Classification grades (minimum)

-

Category of use

3.

Durability

8.

Door closer power size

6.

Safety

1.

Closer functions

Latching.

Materials and finishes

-

Bodies

Stainless steel.

Matt.

Polished.

Satin.

Arms

Stainless steel.

Casings

Stainless steel.

Colour

Silver.

Satin stainless

Matt black.

Light bronze.

Dark bronze.

Hafele black.

Polished brass.

Satin brass.

RAL colour.

Manufacturer guidance

Other finishes available to special order.

Third-party certification

CE marked and Certifire approved CF 140 / EN 1155.

Dimensions

476 x 51 mm.

Guidance for specification option:

Length x width.

Maximum weight

180 kg.

Guidance for specification option:

Maximum door weight.

Opening

120°.

Sustainability data

Contains Red List materials

Yes

Guidance for specification option:

Lead in metal alloy.

Country of material origin

Germany

Country of product manufacture

Germany

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

7.68 kg CO₂ eq/kg

Self declared

Recyclability

Yes
