Architectural Slimline Cam Action Guide Rail Door Closer Size EN 2-4 (HUKP-0204-02) - Door accessories
Verified by manufacturer 2 months ago
Cam action guide rail door closer.
Application
Suitable for high efficiency doors with high use and not suitable for steel doors and frames.
Description
Cam action guide rail door closer.
Features and benefits:
- Cam action closer with high efficiency for doors with high use.
- Power adjustable by spring, closing speed and latch action.
- Maximum opening angle 110° - single action.
- Power size EN 2-4.
- Maximum door weight 80 kg.
- Maximum door width 1100 mm.

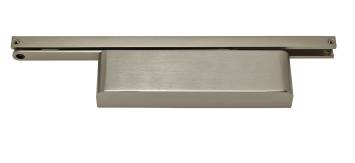

- Slimline design shown with satin stainless semi-radius cover.
General information
Color | Bronze Black Cream Silver White Manufacturer guidanceRAL colour available to special order. |
Finish | Polished Satin Matt |
Material | Stainless steel |
Shape | Rectangle |
Length | 215 mm |
Width | 32 mm |
Height | 53 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
Product range |
Specification data - Controlled door closers
Standard | To BS EN 1154 and BS 8300. |
Classification grades (minimum) | |
Category of use | 3. |
Durability | 8. |
Door closer power size | 4. |
Safety | 1. |
Form | Overhead, face fixed. |
Closer functions | Latching. |
Materials and finishes | |
Bodies | Stainless steel.Polished.Satin.Matt. |
Arms | Stainless steel. |
Casings | Stainless steel. |
Colour | Polished stainless.Satin stainless.Silver sprayed.Light bronze.Dark bronze.Hafele black.Matt black.Satin brass.RAL colour.Manufacturer guidanceOther finishes available to special order. |
Third-party certification | CE marked and Certifire approved CF 5783. |
Dimensions | 215 x 32 mm. Guidance for specification option: Length x width. |
Maximum weight | 80 kg. Guidance for specification option: Maximum door weight. |
Opening | 110°. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 97 % |
Literature
7. Project - Architectural Door Controls
