ELECTRISEAL BOX 350–320
ELECTRISEAL BOX 350–320
Flexible air sealing of up to three cavity wall sockets.
Application
Suitable for:
- Internal use.
- Partel vapour control layers.
- Other vapour control layers and OSB.
- The airtight in-feeding of cables up to Ø22 mm.
- Onsite or offsite construction.
- New residential and commercial buildings.
- Retrofit and renovation projects.
Description

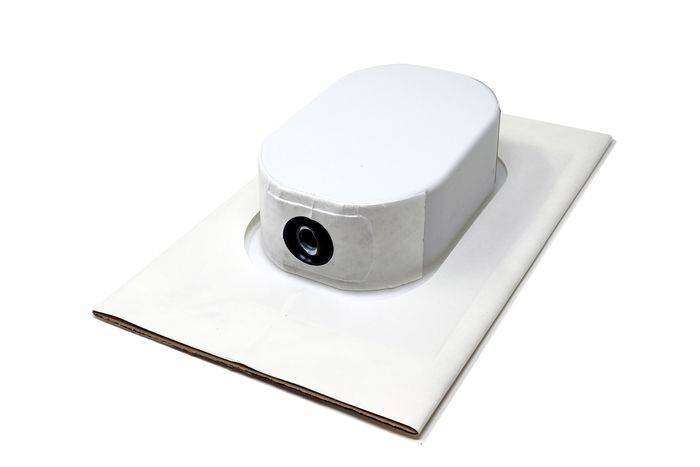

ELECTRISEAL BOX is a flexible and efficient airtight housing for sealing electrical back boxes, capable of accommodating up to three cavity sockets.
Designed for internal use, this airtight electrical box ensures accurate and permanent airtight electrical connections while providing tension relief and resistance to damp climates.
Features and benefits:
- Suitable for single, double, and triple cavity wall socket combinations.
- Adhesive sleeve with excellent adhesion, withstands a damp climate.
- Permanent airtight electrical connections according to Part L and DIN 4108-7.
- Airtight and thermal-bridge-free electrical installation in accordance with DIN 18015-5.
- Meets the required level of tension relief.
- Strong age-resistant acrylic adhesive, that withstands a damp climate.
- Ease of application – split release liner for quick installation.
- Halogen-free, ensuring safe and eco-friendly usage.
General information
Color | White |
Material | Polystyrene High density polyethylene (HDPE) Guidance for specification option: Adhesive sleeve. |
Shape | Oval Rectangle |
Length | 350 mm 450 mm |
Width | 320 mm |
Uniclass | |
CAWS | P31/40 Sealing around services P31/710 Sealing |
Specification data - Surface and concealed wiring enclosures
Standards | |
Surface enclosures | To DIN ISO 527. |
Enclosure | |
Material | Polystyrene. |
Enclosure depth (minimum) | 2 x 4–22 mm. |
YieldStress | To DIN ISO 527, 24 MPa/ 50 mm/ min. |
Elongation at break | To DIN ISO 527, 60%/ 50 mm/ min. |
Tensile Modulus | To DIN ISO 527, 2000 MPa/ 1 mm/ min. |
Electrical resistance | To IEC 60243, 65 kV/ mm. |
Colour | White. |
Seal | Special HDPE film. Guidance for specification option: Acrylic water-resistant adhesive.
|
Seal colour | White. |
Seal size | 350 x 320 mm. |
Application temperature range | -30°C to 100°C. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Polystyrene High density polyethylene (HDPE) Guidance for specification option: Adhesive sleeve. |
Expected Life | Lifetime |
Literature

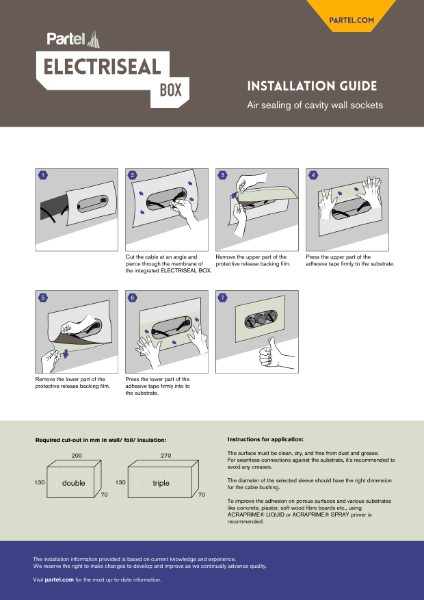

ELECTRISEAL BOX

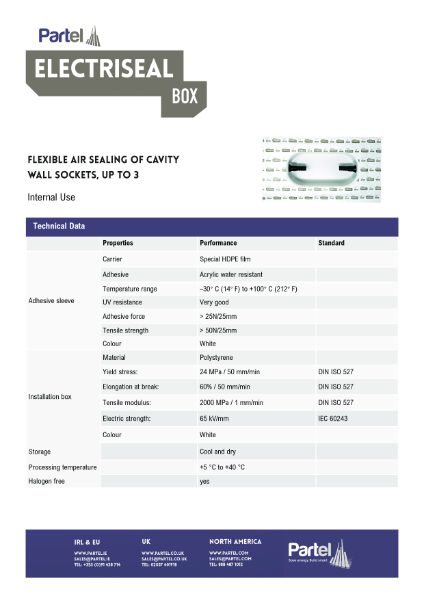

ELECTRISEAL BOX - final digital
