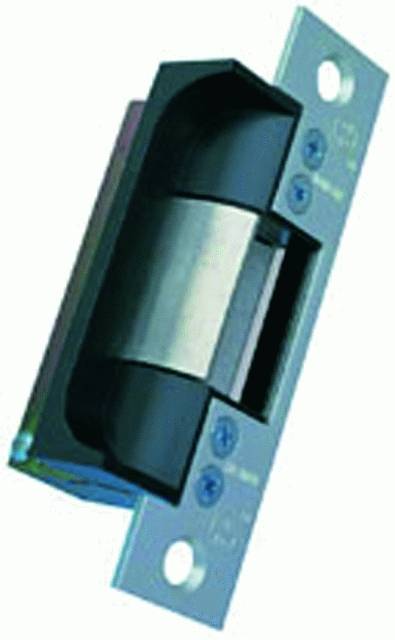

Electric Strikes 7160
Description

The Adams Rite 7100 Series is for remote use access control of any door equipped with Adams Rite 4700 series (or similar) deadlatch. The 7160 has a flat faceplate and will accommodate a 19 mm latch throw.

Benefits:

  • Suitable for use on aluminium doors.
  • This compact mechanism fits into a hollow jamb section as shallow as 47 mm.
  • Facility to change duty from fail-safe to fail-secure and vice-versa.
  • 907 kg holding force.
  • Flat faceplate for installation into the frame of a single leaf door.
  • Round corners of faceplate to aid installation into aluminium doors.
  • Non-handed.
  • Electrical actuation unlocks the strike jaw, releasing the latchbolt so the door can be opened without operating the latch itself.

Additional information for this product is available from - http://www.adamsrite.co.uk/en/site/Adams-Rite-Europe/Products/Electric-locking/Electric-Strikes/

General information

Features

Monitored/ Fail safe

Monitored/ Fail secure

Standard/ Fail safe

Standard/ Fail secure

Uniclass 2015

Pr_75_30_27_26 Electric strikes and faceplatesPrimary
Specification data - Electric strikes and faceplates

Product Reference

7160

Voltage

12 V

24 V

Current and duty

AC intermittent – Fail secure only.

DC continuous

DC intermittent

Features

Monitored/ Fail safe

Monitored/ Fail secure

Standard/ Fail safe

Standard/ Fail secure

Face plate finish

313 Bronze

335 Black

628 Satin aluminium

Monitoring

Not required

Single, latch only

Double, latch and solenoid

Sub cover extension

91-0171-01

Door centreline to jamb edge: 38.1 mm.

91-0171-02

Door centreline to jamb edge: 41.4 mm.

91-0171-03

Door centreline to jamb edge: 44.5 mm.

91-0171-04

Door centreline to jamb edge: 47.8 mm.

91-0171-05

Door centreline to jamb edge: 50.8 mm.

91-0171-06

Door centreline to jamb edge: 54.1 mm.

91-0171-07

Door centreline to jamb edge: 57.2 mm.

91-0171-08

Door centreline to jamb edge: 60.5 mm.

91-0171-09

Door centreline to jamb edge: 63.5 mm.

91-0171-10

Door centreline to jamb edge: 66.8 mm.

91-0171-11

Door centreline to jamb edge: 69.9 mm.

91-0171-12

Door centreline to jamb edge: 73.2 mm.

91-0171-13

Door centreline to jamb edge: 76.2 mm.

Standard product features

General:

  • Case: Zinc aluminium alloy.
  • Mechanism: Stainless steel internal blocking mechanism.
  • Faceplate: Aluminium.

Standard:

ANSI/BHMA 156.5 grade 1. UL listed for burglary resistance.
