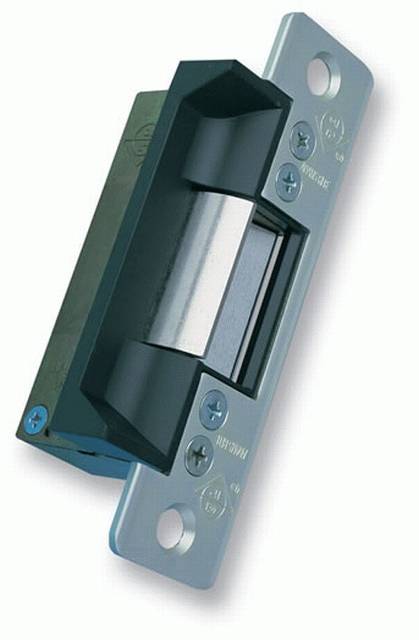

Electric Strikes 7100 and 7101

Application

  • The 7100 has flat faceplates for installing in the frame of a single action single leaf doors.
  • The 7101 has a radiused faceplate for mounting in the rounded nose in the inactive leaf of paired doors.

Description

The Adams Rite 7100 Series is for remote use access control of any door equipped with Adams Rite 4700 series (or similar) deadlatch.

Application:

  • The 7100 has flat faceplates for installing in the frame of a single action single leaf doors.
  • The 7101 has a radiused faceplate for mounting in the rounded nose in the inactive leaf of paired doors.

Benefits:

  • Suitable for use on aluminium doors.
  • Facility to change duty from fail-safe to fail secure and vice-versa.
  • Non-handed.
  • The compact mechanism fits into an aluminium jamb section as shallow as 44.45 mm.
  • Electrical actuation unlocks the strike jaw, releasing the latchbolt so the door can be opened without operating the latch itself.
  • 907 kg holding force.
  • Round corners of faceplate to aid installation into aluminium doors.

Additional information for this product is available from - http://www.adamsrite.co.uk/en/site/Adams-Rite-Europe/Products/Electric-locking/Electric-Strikes/

General information

Features

Monitored/ Fail safe

Monitored/ Fail secure

Standard/ Fail safe

Standard/ Fail secure

Uniclass 2015

Pr_75_30_27_26 Electric strikes and faceplatesPrimary

Specification data - Electric strikes and faceplates

Product Reference

7100

7101

Voltage

12 V

24 V

Current and duty

AC intermittent

Fail secure only.

DC continuous

DC intermittent

Features

Monitored/ Fail safe

Monitored/ Fail secure

Standard/ Fail safe

Standard/ Fail secure

Face plate finish

313 Bronze

335 Black

628 Satin aluminium

Monitoring

Not required

Single, latch only

Double, latch and solenoid

Sub cover extension

Not required

7101.

91-0171-01

Door centreline to jamb edge: 38.1 mm.

91-0171-02

Door centreline to jamb edge: 41.4 mm.

91-0171-03

Door centreline to jamb edge: 44.5 mm.

91-0171-04

Door centreline to jamb edge: 47.8 mm.

91-0171-05

Door centreline to jamb edge: 50.8 mm.

91-0171-06

Door centreline to jamb edge: 54.1 mm.

91-0171-07

Door centreline to jamb edge: 57.2 mm.

91-0171-08

Door centreline to jamb edge: 60.5 mm.

91-0171-09

Door centreline to jamb edge: 63.5 mm.

91-0171-10

Door centreline to jamb edge: 66.8 mm.

91-0171-11

Door centreline to jamb edge: 69.9 mm.

91-0171-12

Door centreline to jamb edge: 73.2 mm.

91-0171-13

Door centreline to jamb edge: 76.2 mm.

Standard product features

General:

  • Case: Zinc aluminium alloy.
  • Mechanism: Stainless steel internal blocking mechanism.
  • Faceplate: Aluminium.

Standards:

ANSI/BHMA 156.5 Grade 1. UL Listed for burglary resistance.
