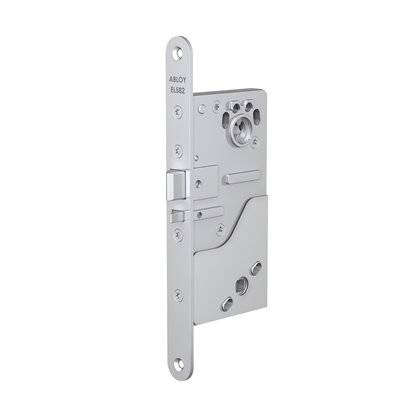

Electric Lock Standard Scandinavian 50 mm (EL582)

Name: Electric Lock Standard Scandinavian 50 mm (EL582)
Brand: Abloy UK
SKU: 331v4KXF9QrPsAoyvNRMuy

Verified by manufacturer over a year ago

Abloy UK

EL582 handle controlled lock case for solid doors with 50 mm backset.

Jump to:

+44 (0)1902 364500 Website

Application

Suitable for use as interior and exterior exit or fire rated doors of business premises, public buildings, hospitals and schools.
Can be used in the exterior doors of residential buildings.
Not suitable for use with door automatics.

Description

Handle controlled lock case for solid wooden or metal doors with a 50 mm backset. The locks are automatically deadlocked when the door is closed and can be controlled by card reader, keypad and timer systems.

Features and benefits:

Deadlocked latch bolt with either a 14 or 20 mm throw.
Bolt position and handle operation.
Outside handle controlled.
Request to exit (RQE).
Selection of controlled follower side and side of handle control.
Easily reversible trigger bolt and deadbolt, suitable for all hands of door.
Quick change fail locked to fail unlocked.
Automatic deadlocking of deadbolt only when door shuts.
Retrofits mechanical Scandinavian mortice locks.
Change of handing.
Programmable fail locked/ fail unlocked function.

General information

Color	Silver
Finish	Chrome
Material	Steel
Shape	Other
Length	225 mm
Width	22 mm

Uniclass	Pr_30_36_08_36 Door locksPrimary
CAWS	P21/26 Special function door locks P21/530 Special function door locks

Specification data - Door locks

Description	EL582 handle controlled lock case for solid doors with 50 mm backset.
Manufacturer	Abloy UK.
Standard	To EN 14846.
Lock type	Cylinder mortice lock.
Backset	50 mm.
Material and finish	Chrome plated, steel faceplate.
Fasteners for hardware	Fasteners for hardware.

Voltage	12–24 V d.c. Guidance for specification option: -10%,+15%.
Power consumption	550–270 mA. Guidance for specification option: Max consumption at 12—24 VDC (Idle consumption 240—110 mA at 12—24 VDC).
TemperatureRange	-20°C to +75°C.
Forend	22 mm.
Bolt	14 mm. 20 mm. Manufacturer guidance Bolt throw.
Configuration	Non-handed.
Spindle	8 mm.
Spring strength	Select to prevent un-sprung lever handles drooping. Guidance for specification option: Consult manufacturer and insert requirements or omit. Manufacturer guidance Handle Spring.
