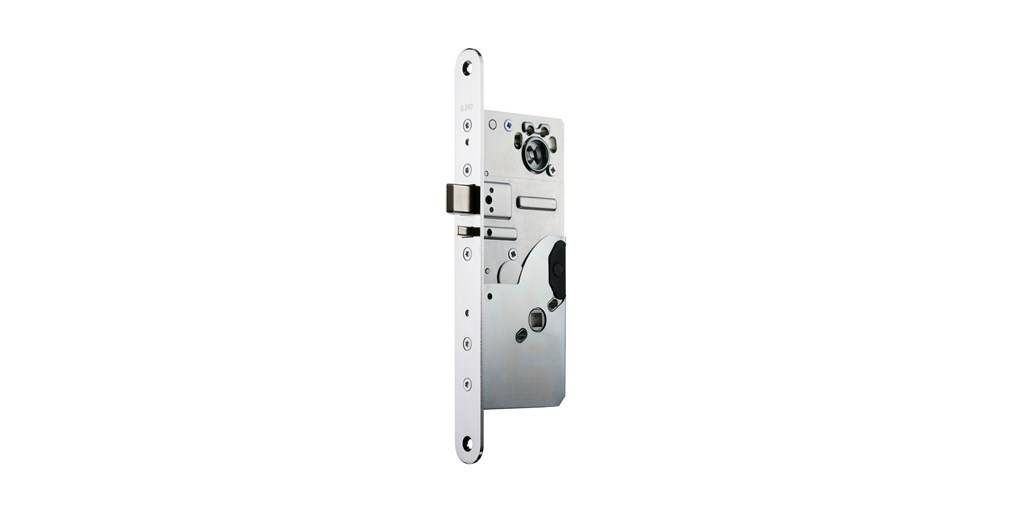

Electric Lock Standard (EL590)

Name: Electric Lock Standard (EL590)
Brand: Abloy UK
SKU: 5QjjoDcg3KntRo1Ciemhkv

Verified by manufacturer over a year ago

Flexible multifunctional locking.

Jump to:

Application

Suitable for interior and exterior exit or fire rated doors in offices, business premises, hospitals and schools.
Can be used in the exterior doors of apartment buildings and doors with automatics.

Motor lock for one- and two-way access controlled fire doors and emergency exit doors.

Features and benefits:

Deadbolt throw can be configured to 14 or 20mm (PE590: 14 mm only).
Inside handle operates at all times or can be controlled electrically in two-way access controlled doors.
Meets EN 179 and EN 1125 for emergency and panic exits and EN 1634-1 for fire resistance doors (when inside handle can always be operated and installed with suitable hardware).
Tested to mechanical resistance standard EN 12209.
Tested to draft standards prEN 14846.
Retrofits mechanical Scandinavian mortice locks.

Uniclass	Pr_30_36_08_36 Door locksPrimary
CAWS	P21/24 Door locks P21/515 Door locks

Description	Motor lock for one- and two-way access controlled fire doors and emergency exit doors.
Manufacturer	Abloy UK.
Standard	To BS EN 12209.
Classification grades (minimum)	-
Category of use	BS EN 12209, grade 3.
Durability	BS EN 12209, grade S.
Door mass and closing force	BS EN 12209, grade 6.
Suitability for use on fire resisting and/ or smoke control doorset	BS EN 12209, grade 1.
Safety	BS EN 12209, grade 0.
Corrosion resistance and temperature	BS EN 12209, grade F.
Security and drill resistence	BS EN 12209, grade 3.
Key identification requirement	BS EN 12209, grade 0.
Lock type	Cylinder mortice lock.
Backset	50 mm.
Material and finish	Chrome stainless steel.
Fasteners for hardware	Fasteners for hardware.

Voltage	12–24 V d.c. Guidance for specification option: -10%,+15%.
Power consumption	1700–700 mA. Guidance for specification option: Max consumption at 12—24 VDC. (Idle consumption 50—25 mA at 12—24 VDC).
TemperatureRange	-20°C to +60°C.
Forend	22 mm.
Bolt	14 mm. 20 mm. Manufacturer guidance Bolt throw.
Spindle	8 mm.
Spring strength	Select to prevent un-sprung lever handles drooping. Guidance for specification option: Consult manufacturer and insert requirements or omit. Manufacturer guidance Handle spring.
