Application

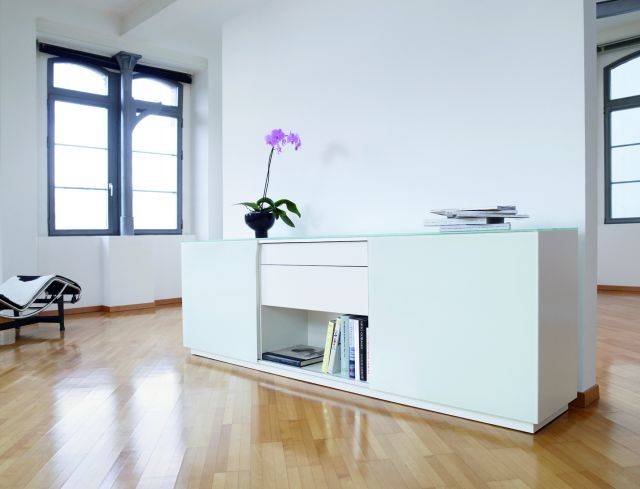

Suitable for sliding door combinations in locations such as:

  • Private living areas.
  • Private and public offices.
  • Shelves.
  • Under units in bathrooms.

Fitting can be used in combination with ESG float glass, ESG satinato glass, ESG with ceramic screen printing, double mirror or laminated glass. (ESG: Tempered safety glass). Recommended adhesive: PENLOC TYP GTI / GZH.

Description

Sliding track designed for two or three all-glass doors weighing up to 25 kg each, installed forward of the frame on furniture. Connecting plates are adhered onto the glass and connected to the running gear. The track is attached to the base and the top panel from the front using the EKU clipping technology, concealing all fastening components. As no cabinet preparation is required, this sliding solution can also be retrofitted.

Features and benefits:

  • Optional soft closing system.
  • Forslide design: Sliding panels are installed forward of the supporting frame/ structure.
  • Tracks easy to install using clips.
  • The fitting can be subsequently adapted to the shelving system.
  • Continuous height adjustment.
  • Freely adjustable end stopper with retainer.

- Suitable for use with door panels:

  • Panel thickness: 4–6 mm.
  • Maximum panel width: 1200 mm.
  • Maximum panel height: 1800 mm.
  • Maximum panel weight: 25 kg.

Components:

System: Clip-on track 20/ 22 mm, with connecting plate glue fixed (glass without drilling) for glass doors.

Applications:

Suitable for sliding door combinations in locations such as:

  • Private living areas.
  • Private and public offices.
  • Shelves.
  • Under units in bathrooms.

Fitting can be used in combination with ESG float glass, ESG satinato glass, ESG with ceramic screen printing, double mirror or laminated glass. (ESG: Tempered safety glass). Recommended adhesive: PENLOC TYP GTI / GZH.

General information

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

EKU-REGAL B 25 GK Forslide (FS)

EKU-REGAL B 25 GK Forslide (FS) Soft Closing

Installation/ Design

As drawing

Insert requirements, various possibilities available. Consult manufacturer for details.

Running track

2500 mm

3500 mm

6000 mm

Guide track

As running track

2500 mm

6000 mm

Vertical profile

As running track

2500 mm

6000 mm

Accessories/ Other requirements

See 'Options' below and insert requirements.

Standard product features

Running track, guide track and vertical profile:

Anodized aluminium.

Safety clip:

Die-cast, grey, for 040.3040.

Spacers:

Plastic, grey, for two doors at one level.

Product Options

Accessories/ Other requirements:

Other accessories and spares are also available, consult the manufacturer for details.
