Application

Suitable for sliding wooden doors in locations such as:

  • Private living areas.
  • Private and public offices.
  • Interior furnishings.

Description

Sliding door mechanism designed for use with one wooden door weighing up to 100 kg.

Features and benefits:

  • Ceiling or wall mounting.
  • Freely positionable stopper.
  • Ball-bearing running gear.
  • Optional three-point or four-point roller guide.
  • Installation height: 73–88 mm.
  • Tested in accordance with DIN EN 1527.

- Suitable for use with door panels:

  • Maximum panel thickness: 80 mm.
  • Maximum panel width: 4000 mm.
  • Maximum panel height: 4000 mm.
  • Maximum panel weight: 300 kg.

Components:

Quantities of each component may vary dependent - consult manufacturer for details. Fittings available individually or in set with track. Spare parts available on request.

  • Running track.
  • Four-wheeled trolley x 2, with ball bearings and plastic rollers.
  • Zinc-plated steel supporting bracket x 2.
  • Zinc-plated steel suspension bolt, M10 x 45 mm x 2.
  • Zinc-plated steel stopper with rubber buffer.
  • Zinc-plated steel supporting angle bracket/ bottom guide.

Applications:

Suitable for sliding wooden doors in locations such as:

  • Private living areas.
  • Private and public offices.
  • Interior furnishings.

General information

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

N10/10 Purpose-made

N10/110 Purpose-made

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

EKU PORTA 100 H

Installation/ Design

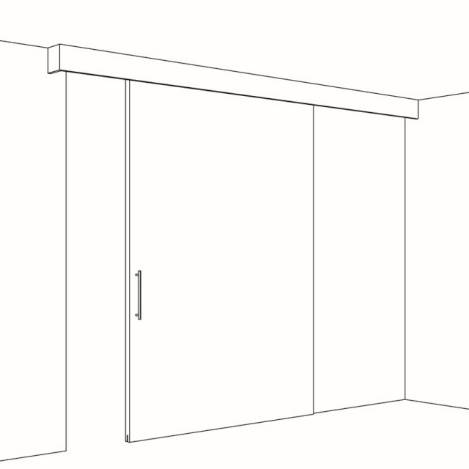

As drawing

Insert requirements, various possibilities available. Consult manufacturer for details.

Mounting

Ceiling

Standard.

Wall

Running track

-

Material

Anodized aluminium, pre-drilled

Steel

Length

3000 mm

6000 mm

Roller guide

Not required

Three-point

Four-point

Accessories/ Other requirements

See 'Options below and insert requirements.

Standard product features

Configuration:

Top hung, sliding.

Product Options

Accessories/ Other requirements:

Other accessories and spares are also available, consult manufacturer for details.
