Application

Suitable for sliding door combinations in locations such as:

  • Private living areas.
  • Private and public offices.
  • Kitchen cabinets up to 2200 mm.
  • Shelving and cabinets.
  • Design options in aluminium frame or wood.

Fitting can be used in combination with ESG float glass, ESG satinato glass, ESG with ceramic screen printing, double mirror or lamina-ted glass. (ESG: Tempered safety glass). Recommended adhesive: PENLOC TYP GTI / GZH.

Description

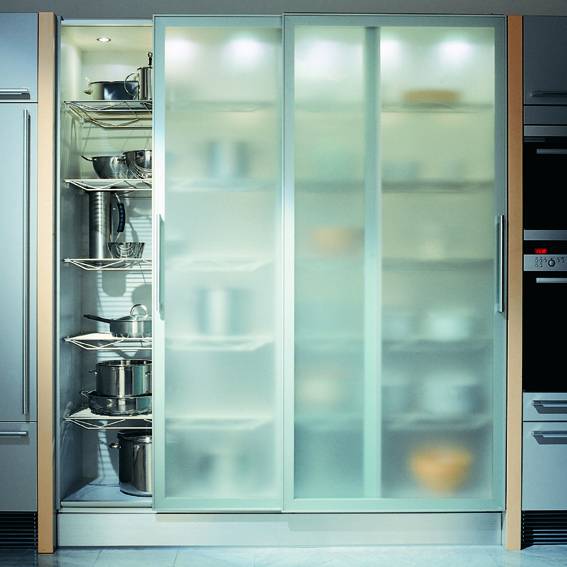

Sliding track designed for two or three aluminium frame doors with panels weighing up to 25 kg each, installed forward of the furniture frame. The elegant 20/20 aluminium frame system with the Forslide design allows doors to glide in front of the cabinet. No cabinet processing is required with the EKU-FRONTAL 25 GR FS, meaning that the system can also be retrofitted. The aluminium frames are easy to cut to size to fit the door and install.

Features and benefits:

  • Simple customizing of the aluminium framed door.
  • Forslide design: Sliding panels are installed forward of the supporting frame/ structure.
  • Easy door installation with Allen key.
  • Easy height adjustment with Allen key.
  • Freely adjustable end stopper with and without retainer.
  • Optional soft closing.

- Suitable for use with door panels:

  • Panel thickness: 20/ 4 mm.
  • Maximum panel width: 800 mm.
  • Maximum panel height: 2000 mm.
  • Maximum panel weight: 25 kg.

Components:

System: Tracks (clip on / screw on), for two or three aluminium framed doors up to 25 kg. Aluminium frames: 20/ 20 mm.

Applications:

Suitable for sliding door combinations in locations such as:

  • Private living areas.
  • Private and public offices.
  • Kitchen cabinets up to 2200 mm.
  • Shelving and cabinets.
  • Design options in aluminium frame or wood.

Fitting can be used in combination with ESG float glass, ESG satinato glass, ESG with ceramic screen printing, double mirror or lamina-ted glass. (ESG: Tempered safety glass). Recommended adhesive: PENLOC TYP GTI / GZH.

General information

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

EKU FRONTAL 25 GR 20/20 Forslide FS

EKU FRONTAL 25 GR 20/20 Forslide FS Soft Closing

Installation/ Design

As drawing

Insert requirements, various possibilities available. Consult manufacturer for details.

Running and track guide

2500 mm

3500 mm

6000 mm

Vertical profile

As running and track guide

2500 mm

3500 mm

6000 mm

Fixing

As standard

With connecting bolt

Accessories/ Other requirements

See 'Options' below and insert requirements.

Standard product features

Running and track guide:

Anodized aluminium.

Vertical profile:

Anodized aluminium.

Safety clip:

Die-cast, grey (every 400 mm).

Product Options

Accessories/ Other requirements:

Other accessories and spares are also available, consult the manufacturer for details.
