Range of sliding door mechanism designed for use with two wooden doors up to 36 kg.
Suitable for sliding doors in locations such as:
Range of sliding door mechanisms designed for use with two wooden doors up to 36 kg each.
EKU-CLIPO 15 H Inslide (IS) Wood:
Designed for two top-running wooden doors weighing up to 15 kg each with the Inslide design. The running track is groove mounted. The running gear is clipped in during installation. The height is adjusted using the finger-operated adjusting wheel on the clip running gear. There is no panel to affect the appearance.
EKU-CLIPO 16 H Inslide (IS) Wood:
Designed for two top-running wooden doors weighing up to 16 kg each with the Inslide design. The soft closing is mounted invisibly in the running track. The running gear is clipped in during installation. The height is adjusted using the finger-operated adjusting wheel at the clip running gear.
EKU-CLIPO 26 and 36 H Inslide (IS) Wood:

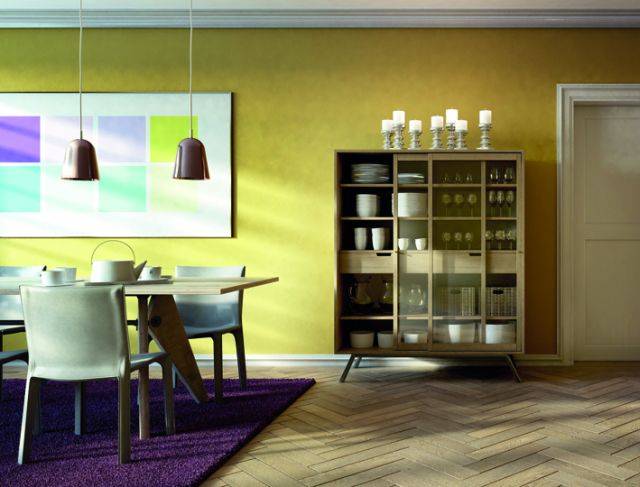

Designed for two to three top-running wooden doors weighing up to 26/ 36 kg each with the Inslide design. Suitable for medium-sized storage solutions in offices, living rooms, dining rooms and bedrooms do not require a groove in the base, nor is a fascia necessary. The two-sided soft close with self-closing and retaining function is invisibly integrated into the running track. The door is attached to the running system using the quick and tool-less clip-on system. Adjustment is convenient using the EKU height adjusting facility.
Features and benefits:
- Suitable for use with door panels:
Components:
Applications:
Suitable for sliding doors in locations such as:
Uniclass 2015 | |
CAWS | N10/10 Purpose-made N10/110 Purpose-made P21/10 Quantities and locations P21/350 Door track and running gear |
Product Reference | EKU CLIPO 15 H Inslide (IS) WoodEKU CLIPO 15 H Inslide (IS) Wood, soft closingEKU CLIPO 16 H Inslide (IS) WoodEKU CLIPO 26 H Inslide (IS) WoodEKU CLIPO 36 H Inslide (IS) Wood |
Running track | - |
Type | DoubleSingle |
Size | 2500 mm3500 mm6000 mm |
Guide track | As running track2500 mm3500 mm6000 mm |
Clip panel | As running track2500 mm3500 mm6000 mm |
Fixing | For press-fitting or glue fixingWith swivel lugNot suitable for hardwood/ medium density fibreboard (MDF). For screw fixingFor surface mounting with screws (19 mm doors only)For screw fixing (19/ 25 mm doors only) |
Accessories/ Other requirements | See 'Options' below and insert requirements. |
Standard product features | Running track: Aluminium. Guide track: Aluminium/ plastic, anthracite. Clip panel: Anodized aluminium. Track end piece: Plastic grey (for screw or swivel lug fixing). |
Product Options | Accessories/ Other requirements: Other accessories and spares are also available, consult the manufacturer for details. |
