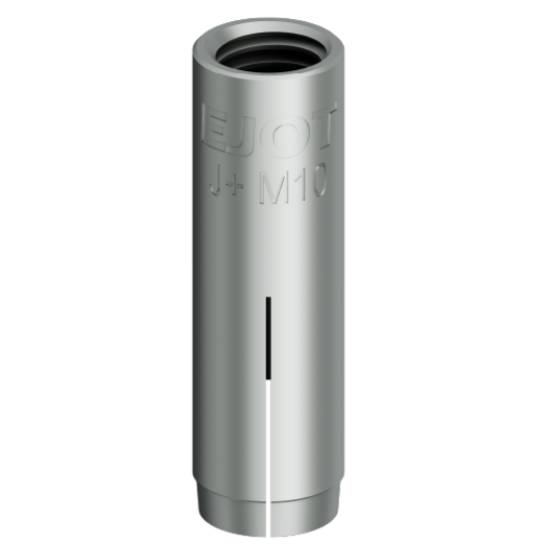

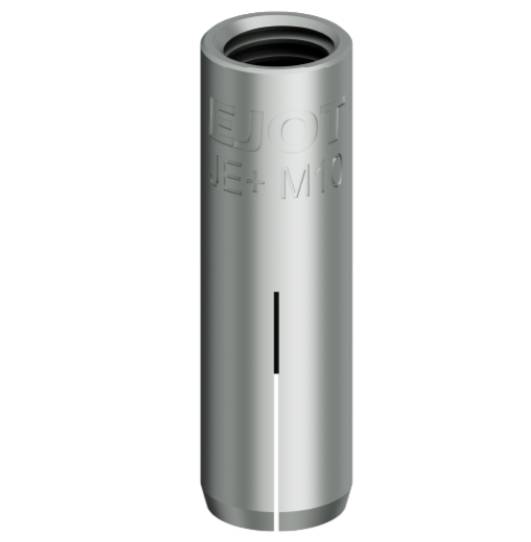

EJOT Drop In Anchor - Expansion Anchor
Verified by manufacturer 5 days ago
Drop in anchor J+ 6
Drop in anchor J+ 6
Deformation controlled expansion anchor with internal thread for metric bolts and rods, suitable for pre-installation in concrete and hollow core slabs.
Application
- For dry indoor and temporary outdoor use.
- Suitable bolt length is 1-1.5 x the nominal size of the anchor + fixture thickness.
- Suitable for use in cracked and uncracked concrete, hollow core slabs, and natural stone for non-structural applications.
- Used with metric bolts and rods for medium heavy loads in suspension systems and fixing applications.
Description
https://www.ejot.co.uk/search?text=drop+in+anchor
EJOT Drop In Anchor is a deformation controlled expansion anchor designed for multiple use in non-structural applications in cracked and uncracked concrete, as well as hollow core slabs. It features an internal thread for metric bolts and rods and is suitable for pre-installation with an installation tool. The suitable bolt length is one to one and a half times the nominal size of the anchor plus fixture thickness. The anchor is zinc plated for dry indoor and temporary outdoor use or available in A4 stainless steel for dry internal conditions and external atmospheric exposure or permanent internal damp conditions.
Features and benefits:
- Internal thread for metric bolts and rods.
- Suitable for medium heavy loads.
- Displacement controlled expansion anchors.
- Fixing screws or anchor rods in steel grade categories 4.6, 5.6, 5.8, or 8.8 according to EN ISO 898-1.
- Available in zinc electroplated carbon steel or A4 stainless steel.
- ETA-approved for use in cracked and uncracked concrete and hollow core slabs.
- Suitable for pre-installations with an installation tool.
General information
Color | Silver |
Finish | Zinc plated Stainless steel |
Material | Carbon steel Stainless steel |
Shape | Circle |
Length | 25 mm 30 mm 40 mm 50 mm 65 mm |
Width | 8 mm 10 mm 12 mm 15 mm 20 mm |
Uniclass | |
CAWS | G20/721 Expansion anchors Z20/305 General fixings F30/265 Support systems F30/290 Proprietary special fixings Z20/30 General fixings E60/30 Precast slab G12/350 Proprietary anchors E60/297 Proprietary infill blocks E60/130 Precast slab E42/330 Anchor bolts |
SKU Code | 9650070100 |
Specification data - Expansion anchors
Classification data | |
Certification | European Assessment Document (EAD) with CE marking and a Declaration of Performance (DoP). |
Format | Internally threaded anchor. |
Material | Carbon steel. |
Finish | Zinc-plated. |
Anchor length | 25 mm. |
Thread diameter | M6. |
Sustainability data
Material | Carbon steel Stainless steel |
Recyclability | 100% |
