Ei3030 Multi-Sensor Heat & Carbon Monoxide (CO) Alarm - Multi-Sensor Fire and CO Alarm
Verified by manufacturer 26 days ago
BSI Kitemark
Certificate type
BSI Kitemark
Certificate type
BSI Kitemark
Certificate type

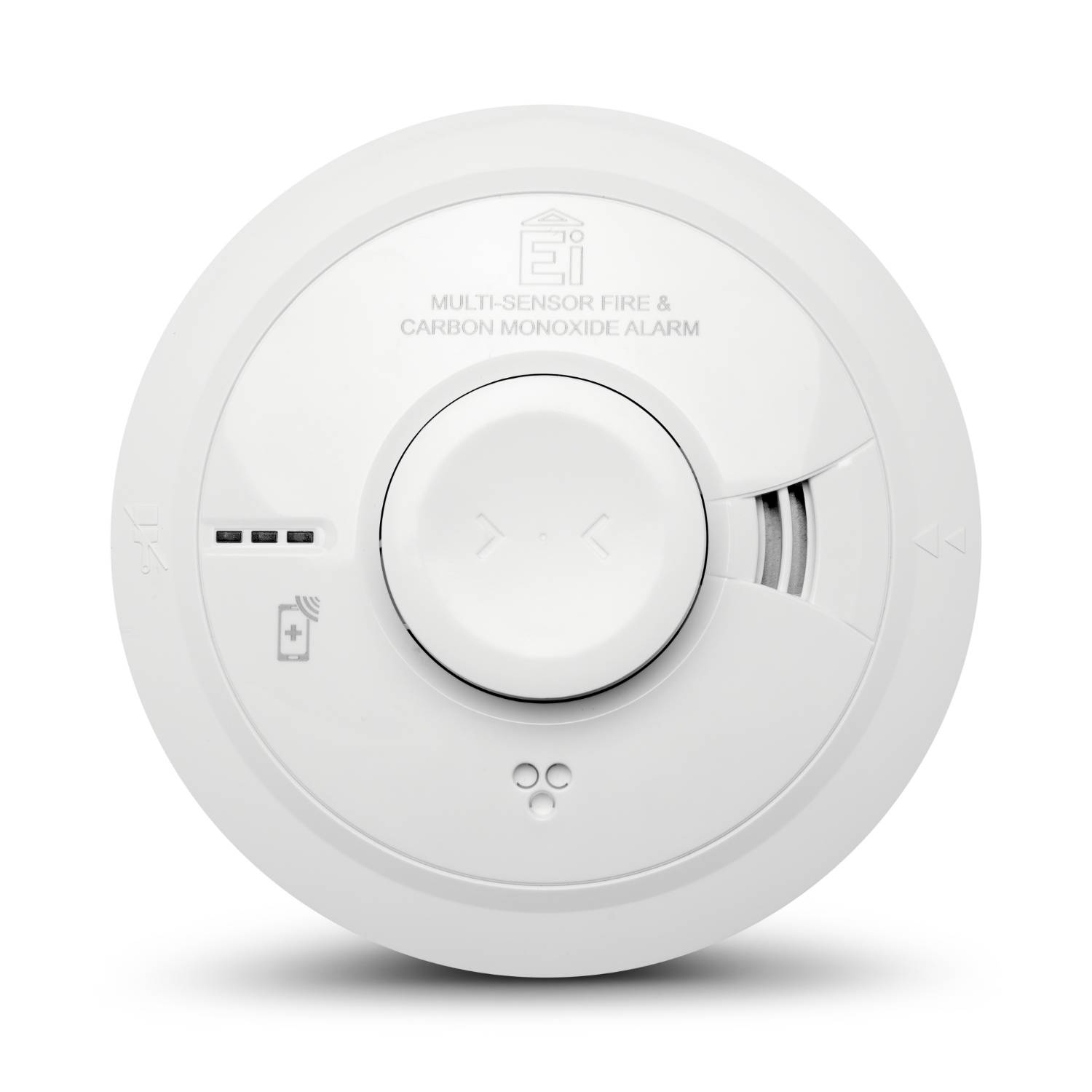

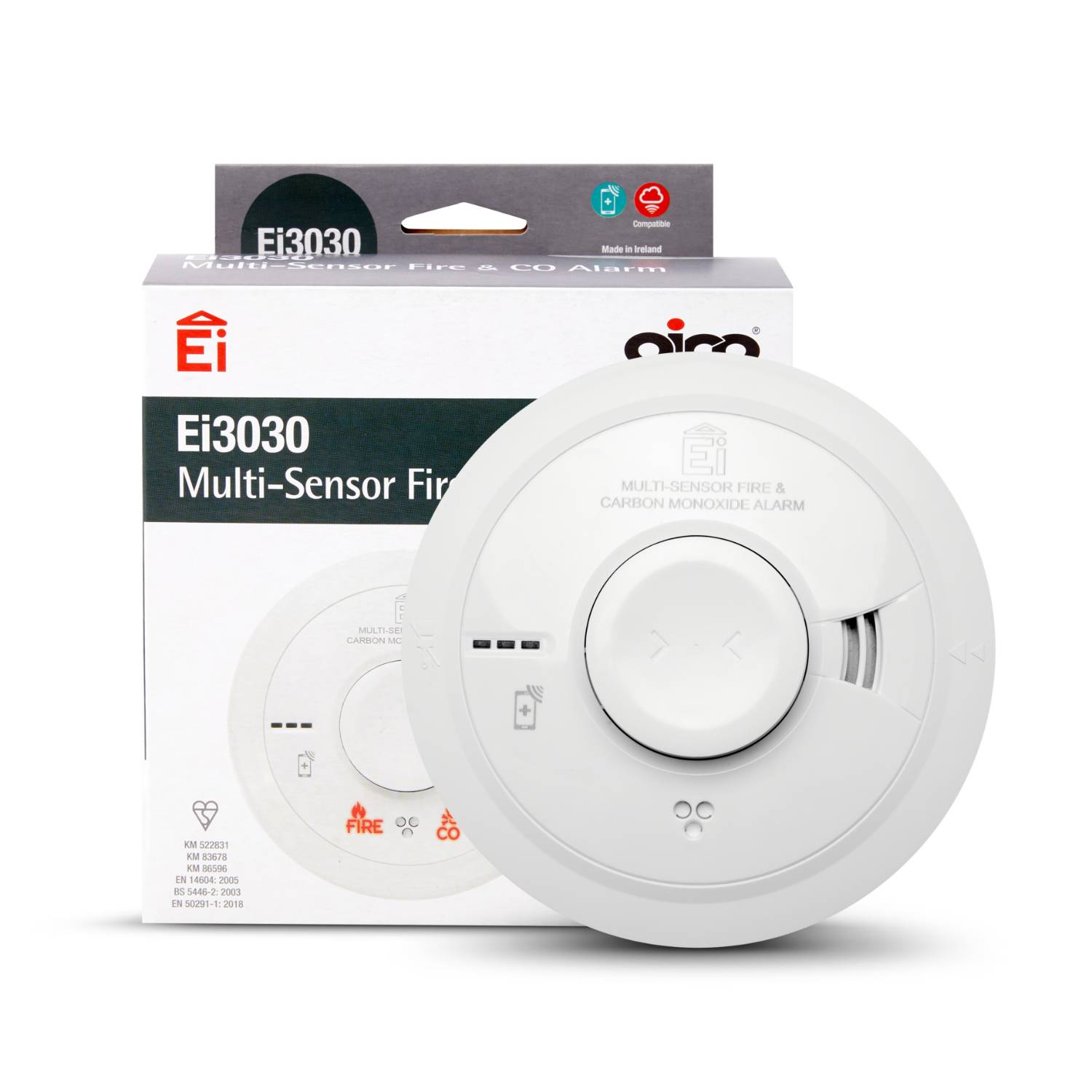

Aico EI3030 multi-sensor fire and carbon monoxide (CO) alarm.
Application
Multi-sensor fire and carbon monoxide (CO) alarm. Applications include:
Bedrooms, dining rooms, garages, hallways, landings, living rooms and lofts.
Description
The Ei3030 is a mains-powered multi-sensor fire and carbon monoxide (CO) alarm.
Features and benefits:
- Contains the Thermistor Heat Sensor, Optical Sensor and Electrochemical CO Sensor to provide the ultimate response, working independently and together.
- Offering visual indicators that trigger according to which alarm is activated.
- Built-in intelligent dust compensation technology eliminating the risk of nuisance alarms from contamination
- Built-in AudioLINK+ data extraction technology.
- Up to 12 units can be interconnected via a hardwired or wireless system.
- Upgradeable to SmartLINK wireless interconnection using an Ei3000MRF module.
- Mains powered with tamper proof lithium cell battery back-up (ten-year life).
- Kitemarked to BS EN 14604:2005 & BS 5446-2:2003 and BS 50291 – 1:2018.
- EAN number: 5099383010466.
General information
Color | White |
Finish | Other |
Material | Polystyrene |
Shape | Circle |
Length | 150 mm Guidance for specification option: Diameter. |
Width | 150 mm Guidance for specification option: Diameter. |
Height | 66 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | W90/330 Smoke alarms W90/330 Smoke alarms W90/335 Heat alarms W90/335 Heat alarms W90/331 Carbon monoxide alarms W90/332 Combined smoke and carbon monoxide detectors W90/332 Combined smoke and carbon monoxide detectors |
SKU Code | Ei3030 |
GTIN/EAN | 5099383010466 |
Specification data - Carbon monoxide and heat multi-sensor detectors
Classification data | |
Standard | To BS EN 14604:2005, BS 5446-2:2003 and BS 50291 – 1:2018. |
Third-party certification | Kitemarked: KM86596, KM522831, KM83678. |
Integral sensors | Optical sensor: Optical photoelectric; Heat sensor: Thermistor Class A1 detection – alarm is triggered at 58°C. Electrochemical CO sensor. Guidance for specification option: Includes Intelligent Dust Compensation and mesh insect shield around the Optical sensor to reduce false alarms. |
Power supply | 100–250 V a.c., 50 Hz, 0.25 W. |
Battery back-up | Built-in ten-year rechargeable Vanadium Pentoxide Lithium cells. Guidance for specification option: Fully charged, the battery will provide up to six months (without module fitted) or three months (with module fitted) back-up without mains power. |
Alarm | Piezoelectric alarm sounder; 85 dB(A) at 3 m (minimum). |
Operating temperature | -10 to 40°C. |
Accessories | None. Ei3000MRF module. Guidance for specification option: SmartLINK wireless interconnection upgrade. Can be specified separately. |
Fixings | Supplied with Easi-fit anti-tamper mounting plate with integral terminal block and wiring cover, includes screws and wall plugs. |
Indicator colour | Green: Power supply; test. Yellow: Fault; end-of-life (EOL). Red: Memory; pre-alarm; alarm (if coincides with alarm sounding). Guidance for specification option: Memory (red, alarm is not sounding): 24 hours; indicates that the alarm has previously detected fire and or dangerous levels of CO. Manufacturer guidanceLEDs. |
Display | Indicates fire or carbon monoxide (CO). |
Weight | 0.412 kg (including packaging). |
Enclosure material | High impact polystyrene (HIP) UL94 V0 flame retardant. |
Sustainability data
Contains Red List materials | Yes |
Country of material origin | Netherlands |
Country of product manufacture | Ireland |
Manufacturing plant location | |
Material | Polystyrene |
Recyclability | Follow WEEE regulations |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | Ten year |
Product certifications
BSI Kitemark
BS 5446-2 - KM 83678
BSI Kitemark
BS EN 14604 - KM 522831
BSI Kitemark
BS EN 50291-1 - KM 86596
