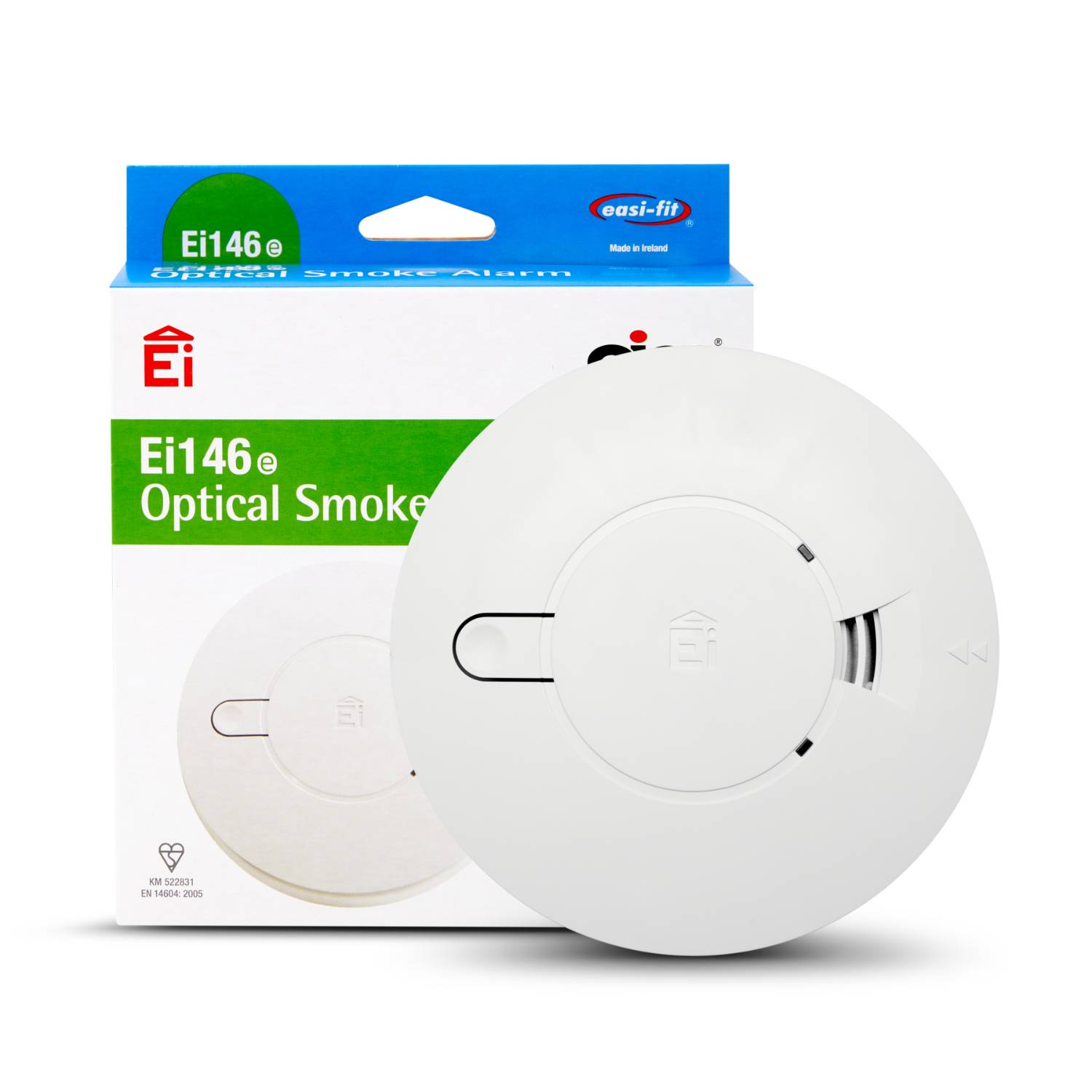

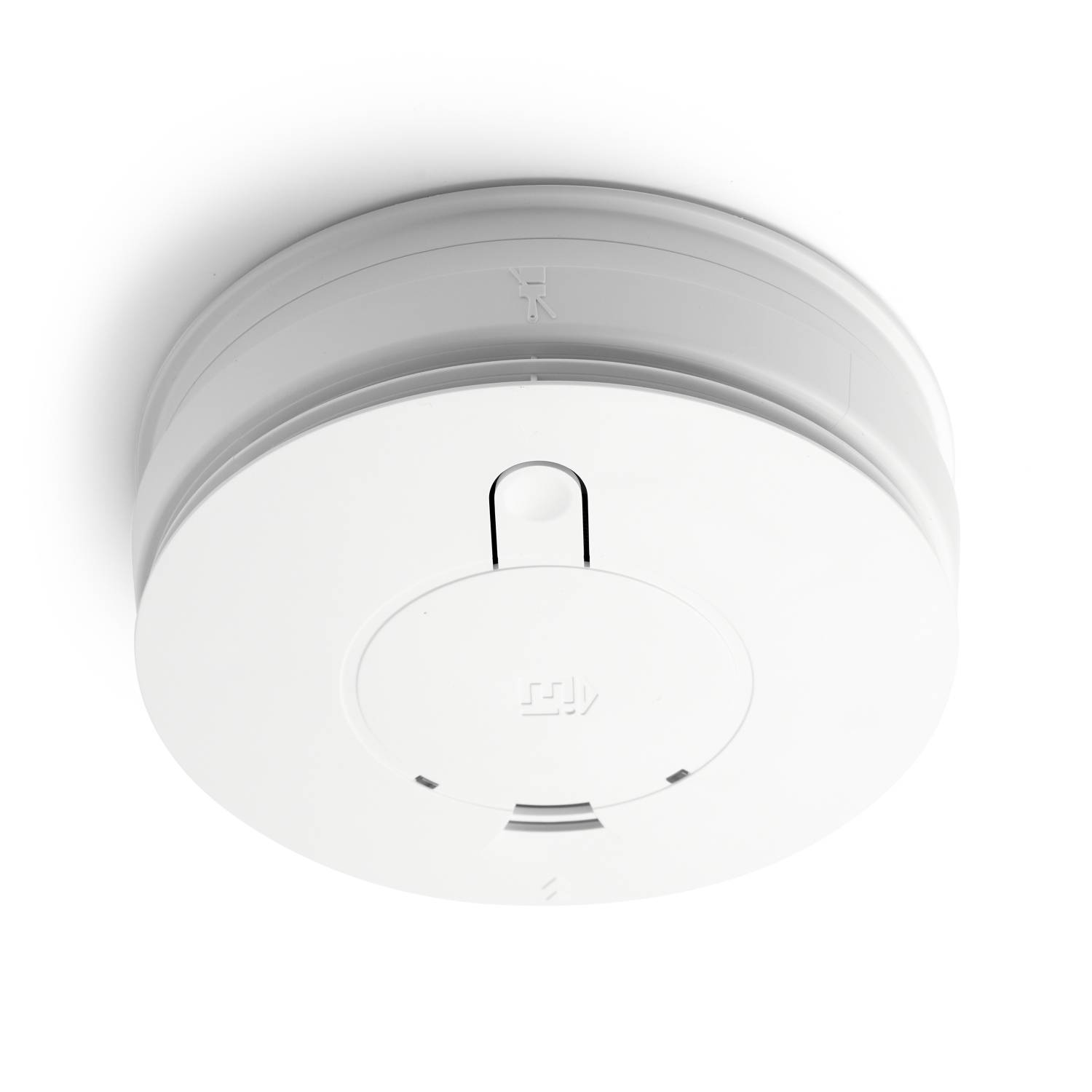

Ei146e Optical Smoke Alarm - Smoke Alarm
Verified by manufacturer 25 days ago
BSI Kitemark
Certificate type
Optical smoke alarm. 230V with alkaline battery back-up. Easi-fit base.
Application
Suitable for use in hallways, landings, living rooms, dining rooms and bedrooms.
Description
The Ei146e Optical Smoke Alarm is a mains powered alarm with a 9 V alkaline battery back-up and contains a proven optical smoke chamber. The alarm features a new modern design and improved optical sensor with sealed insect mesh and automatic dust compensation for reduced false alarms. It is supplied with an easi-fit base to make it quick and simple to install. Compatible with the Ei168RC RadioLINK Base for wireless interconnection
Features and benefits:
- Optical sensor - quick response to slow smouldering fires.
- Automatic dust compensation
- Mains powered with 9 V alkaline battery back-up.
- Easi-fit base for quick and simple installation.
- Kitemarked to BS EN14604:2005.
- Five year guarantee.
- Part of the 140e Series
- Kitemark reference: 522831.
- EAN number: 5099383010206
Product datasheet - https://aicodatasheets.epim.online/Datasheet?part=Ei146e&template=AicoDatasheet
General information
Color | White |
Finish | Other |
Material | Polystyrene Guidance for specification option: HIP UL94 V0 flame retardant. |
Shape | Circle |
Length | 148 mm |
Width | 148 mm |
Height | 47 mm |
Warranty description | Five year |
Uniclass | |
CAWS | W90/330 Smoke alarms W90/330 Smoke alarms |
SKU Code | Ei146e |
GTIN/EAN | 5099383010206 |
Specification data - Smoke alarms
Classification data | |
Standard | To BS EN 14604:2005. |
Third-party certification | BSI Kitemark-approved. |
Detector type | Optical. |
Power supply | |
Primary | 230 V a.c. |
Battery backup | 9 V alkaline battery. |
Manufacturer's warranty (minimum) | Five years. |
Colour | White. |
Enclosure material | High impact polystyrene (HIP) UL94 V0 flame retardant. |
Packaged weight | 0.389 kg. |
Weight | 0.345 kg. Guidance for specification option: Plastic weight: 0.002 kg. Manufacturer guidanceProduct weight. |
Type | Alkaline PP3. Guidance for specification option: Battery weight: 0.036 kg. Manufacturer guidanceBattery type. |
Width | 148 mm. |
Depth | 47 mm. |
Height | 148 mm. |
Power consumption | 0.75 W. |
Fixing | Screws included. |
TemperatureRange | -10 to 40 °C. |
RelativeHumidity | 15-95%. Manufacturer guidanceHumidity range. |
Indicator colour | Green - Power; Red - Alarm or fault. |
Sustainability data
Contains Red List materials | Yes |
Country of material origin | Netherlands |
Country of product manufacture | Ireland |
Manufacturing plant location | |
Material | Polystyrene Guidance for specification option: HIP UL94 V0 flame retardant. |
Recyclability | Follow WEEE regulations |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | Ten year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Product certifications
BSI Kitemark
BS EN 14604 - KM 522831
