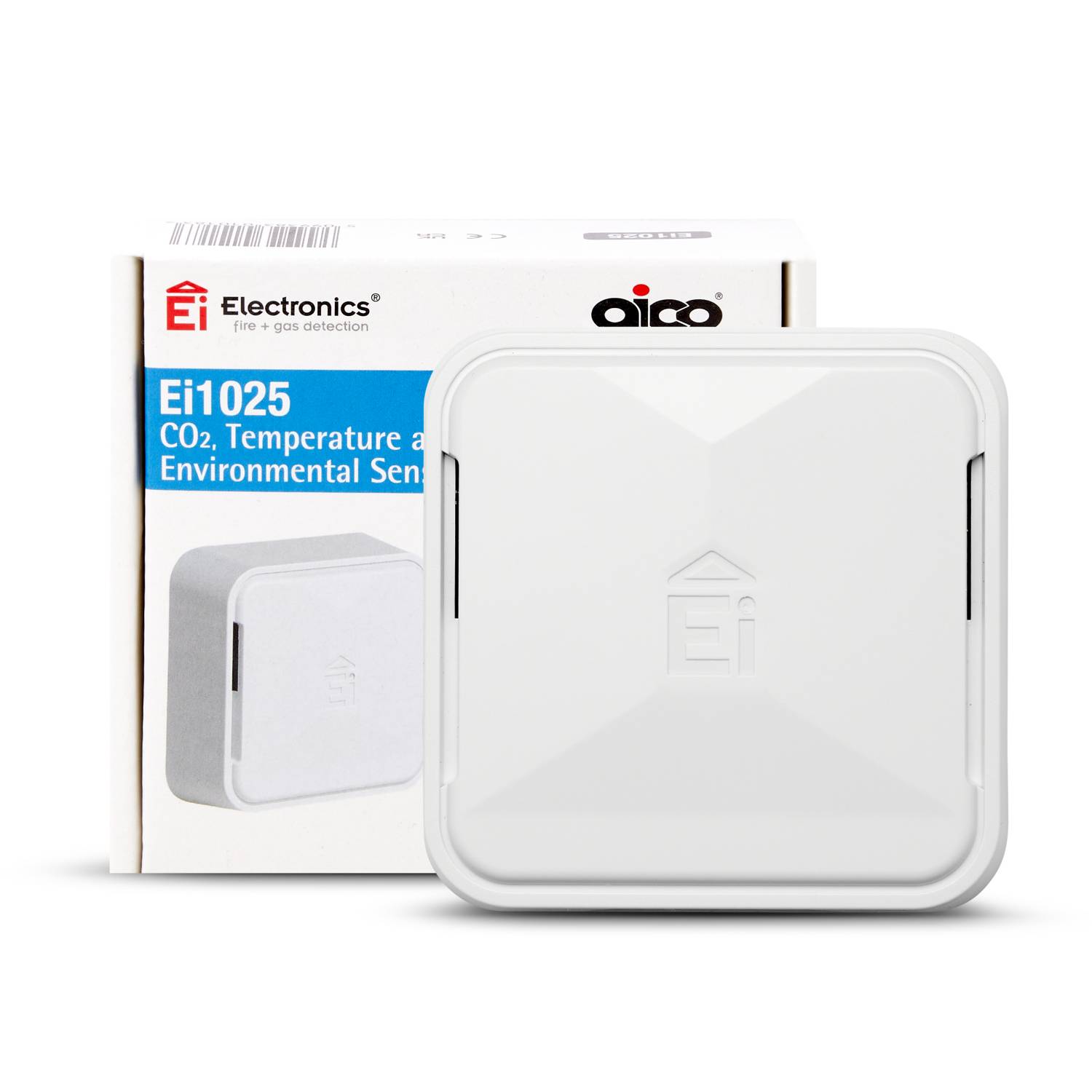

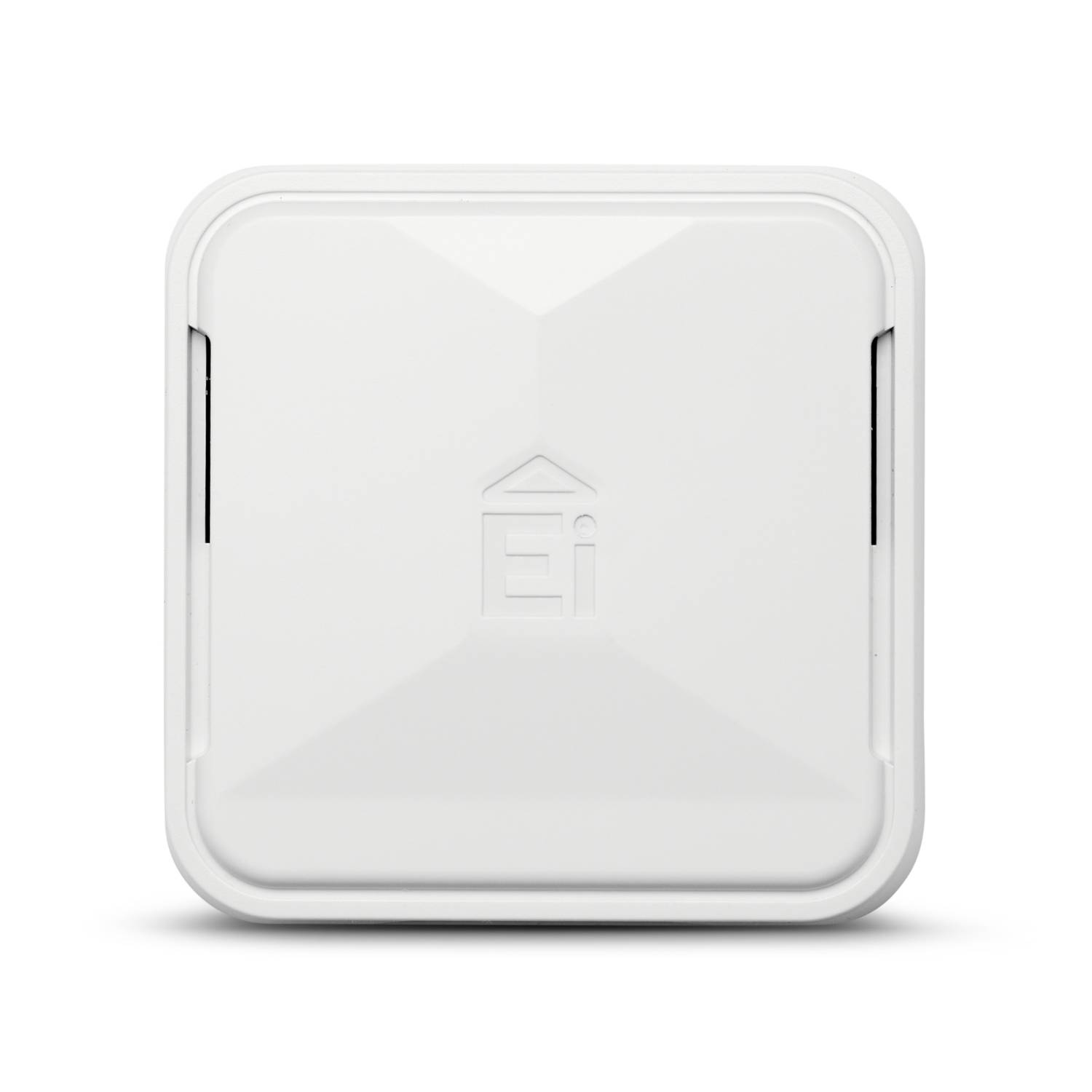

Ei1025 Temperature, Humidity and CO2 Environmental Sensor - Environmental Sensor

Verified by manufacturer 9 days ago

Aico Ltd

Temperature, humidity and CO2 environmental sensor.

Jump to:
BIM object icon
+44 (0)1691 664100 Website

Application

Monitoring of environmental conditions, temperature, humidity and carbon dioxide (CO2), within a property

Description

The Ei1025 temperature, humidity and CO2 environmental sensor is powered by a built in ten year lithium battery. It connects wirelessly to the Ei1000G SmartLINK gateway to provide actionable insights on the health of a property via the HomeLINK dashboard and resident app, including risk of condensation, damp and mould, air quality, dust mite allergens, cold home risk and heat loss risk.


It connects wirelessly to the Ei1000G SmartLINK gateway to provide actionable insights on the health of a property via the HomeLINK dashboard and resident app.


Features and benefits:

  • Gather data on indoor environmental conditions of a property.
  • Provides risk insights via HomeLINK dashboard and resident app including condensation, damp and mould, air quality, dust mite allergens, cold home risk and heat loss.
  • Ten year lithium battery powered.
  • Suitable for wall and ceiling mounting.
  • Connection to Ei1000G SmartLINK gateway required to extract data.
  • EAN number: 5099383010183.


Certification/Approvals:

  • EN 300 220-1, EN 300 220-2, EN 301 489-1, EN 301 489-3 & EN 62368-1


Product datasheet - https://aicodatasheets.epim.online/Datasheet?part=Ei1025&template=AicoDatasheet

General information

Color

White

Finish

Other

Material

Polystyrene

HIP UL94 V0 flame retardant.

Shape

Square

Length

70 mm

Width

70 mm

Height

35 mm

Warranty description

Five year

Uniclass

Pr_75_50_76_02 Air quality sensorsPrimary

CAWS

U90/580 Sensors, thermal

U90/580 Sensors, thermal

U90/560 Sensors, humidity

U90/550 Sensors, air quality

U90/550 Sensors, air quality

U90/560 Sensors, humidity

Specification data - Air quality sensors

Sensor type

Temperature, humidity and CO2.

Equipment interconnectivity

-

Radio-based

-

Communications protocol

Wireless.

Sensor power supply

Integral battery.

Battery life (minimum)

Ten year.

Mounting

Wall and ceiling.

Fixings

Screws included.

Enclosure material

High impact polystyrene (HIP) UL94 V0 flame retardant.

Packaged weight

0.134 kg.

Weight

Product weight (kg).

0.081 kg.

Type

Battery type.

Lithium primary.

Battery weight: 0.014 kg.

Width

70 mm.

Depth

35 mm.

Height

70 mm.

TemperatureRange

-10 to 40 °C.

RelativeHumidity

Humidity range.

15-95%.

Frequency

Radio frequency (RF).

868.2 MHz.

RF range: >100 m in free air.

Sustainability data

Contains Red List materials

Yes

Country of material origin

Netherlands

Country of product manufacture

Ireland

Recyclability

Follow WEEE regulations

Recycled content

0 %
