Egcobox

Third party certifications:
  • BBA Agrément Certificate

    Certificate type

MAX FRANK Ltd

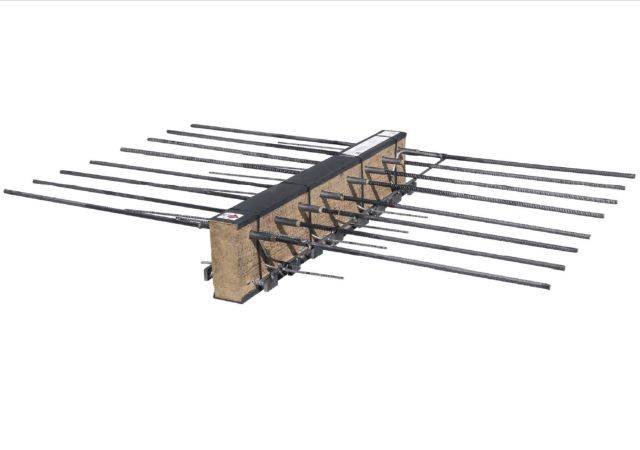

Cantilever connection system for use in reinforced concrete structures to form a thermal break between balcony and internal floor.

Jump to:
+44 (0)1782 598041 www.maxfrank.com
Description

Forms a thermal break between balcony and internal floor, allowing full transfer of load from an external balcony into the main structure whilst providing a thermal break to reduce heat loss to the outside. The products are used primarily in reinforced concrete structures and are designed to form integrally with the floor construction.

Benefits:

  • Reduces thermal bridging in accordance with building regulations.
  • Provides continuity of reinforcement and reinforcement properties between building components.
  • Non-standard sizes or elements with special loading or design calculations are available.
  • Fire rating: REI 120.
  • All units provided with mineral wool insulation (polystyrene option available if required).

General information
Specification data
Product Reference

Egcobox A

Elements for parapet walls.

Egcobox F

Elements for parapets, horizontal connection.

Egcobox Mz ±

Elements for changing loads (positive and negative M and V).

Egcobox Mz-D

Standard elements to transfer shear forces and bending moments.

Egcobox Mz-D-F

Standard elements to transfer shear forces and bending moments. Partitional model especially for precasting plants.

Egcobox Mz-Eck

Corner elements for inside or outside corners.

Egcobox Mz-G

Standard elements to transfer shear forces and bending moments incorporating thrust blocks.

Egcobox Mz-HV

Standard elements to transfer shear forces and bending moments; for stepped balconies.

Egcobox O

Elements for cantilevered brackets.

Egcobox S

Elements for major loads.

Egcobox Vz

Shear force elements to only transfer shear forces.

Egcobox Vz ±

Shear force elements for changing loads (positive and negative shear forces).

Egcobox Vz-DK

Short elements to transfer shear forces.

Egcobox Vz-DK ±

Short elements to transfer positive and negative shear forces.

Egcobox W

Wall elements.

Height

160–250 mm, except Egcobox S (400–500 mm) and Egcobox W (1500–2500 mm). Insert requirements.

Insulation -
Type

Foamglass

Polystyrene

Rockwool

Styrofoam

Width

60–120 mm; insert requirements.

Standard product features

Length:

1000 mm.

Components:

  • Insulation.
  • Ribbed steel tensile reinforcing bars (BST 500S to DIN 488-1).
  • Ribbed stainless steel shear and compression reinforcement to BS EN 10088-3 (tensile strength 500 N/mm²).
  • Two-component resin.
  • 30 x 50 mm structural steel (grade S235 JRG1) compression thrust blocks welded to stainless steel ribbed reinforcement by applying a continuous fillet weld around the circumference of the bar.
