Application

Suitable for:

  • Floors and walls.
  • Use with underfloor heating.
  • Structural floors (maximum 400 mm between) centres.

Description

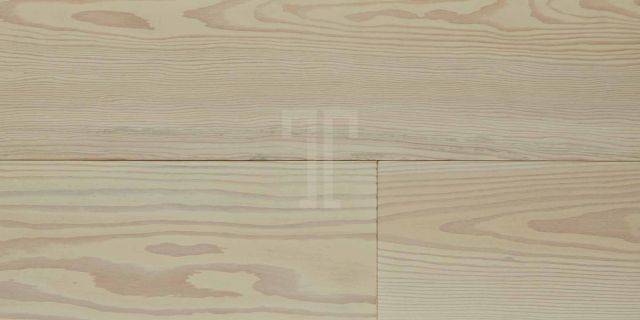

Engineered Douglas fir flooring, designed to be laid in a plank format.

Features and benefits:

  • Part of the EDITIONS collection; consult manufacturer's literature for other formats.
  • EU Timber Regulation (EUTR) compliant.
  • Can be fully bonded to subfloor (with Ted Todd MS Flex high strength adhesive).

Applications:

Suitable for:

  • Floors and walls.
  • Use with underfloor heating.
  • Structural floors (maximum 400 mm between) centres.

- Can be installed over:

  • Concrete (dry, flat).
  • Plywood.
  • Screed (dry, flat; manufacturer recommends Primerfast moisture barrier).
  • Joists (maximum 400 mm centres).

Related products:

A range of complementary products is available, including formed treads and risers, L-sections, T-sections, reducers, scotia, skirting and architraves. Consult manufacturer for details.

Guarantee

25-year product warranty.

General information
Size

Thickness: 20 mm

Length: Random, up to 3000 mm

Uniclass 2015
Wood laminate strips and boards (Pr_25_71_97_93)Primary
Specification data - Wood laminate strips and boards
Product Reference

EDITIONS Collection - Plank (Douglas Fir)

Type

Breton

Width

220 mm

260 mm

300 mm

Standard product features

Size:

  • Thickness: 20 mm.
  • Length: Random, up to 3000 mm.

Technical characteristics:

  • Wood species: Douglas fir.
  • Grade: Nature.
  • Construction: Two ply engineered, 100% hardwood.
  • Edge detail: Micro bevelled.
  • Wear layer: 6 mm hardwood (nominal).
  • Finish: Burnished hardwax oil.
  • Surface texture: Delicately smooth.
  • Profile: Tongue and grooved to all sides.
  • Tolerance: ±0.50 mm/ 95% in tolerance.
  • Moisture content: 8–12% fair and average.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Fire rating to EN 13501-1 (flooring): D fl - s1.
  • Emissions to EN 14342: E1.
  • Humidity requirements: Between 40% and 60% relative humidity.
  • Janka hardness rating: 620 lbf (2760 N).
  • Formaldehyde emission: E1.
  • Thermal conductivity: 0.10 m²K/W (1.0 Tog).
  • Tonal variation: Low natural.
  • Batch variation: Not advised to mix batches in one floor area.
  • Tone: Light.
