Application

Suitable for high traffic washrooms, including restaurants, schools, nightclubs, bars, airports, service stations, hotels, large offices, hospitals, gyms, cinemas and shopping centres.

Description

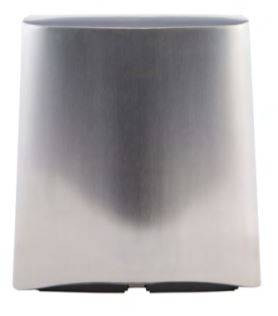

Fast, clean and quiet ‘hands-in’ blade hand dryer equipped with the latest V-style twin blade technology. It delivers high-speed drying, eco-friendly switchable power modes and a built-in air-cleaning HEPA filter for the highest levels of hygiene. It has automatic operation and fast cut off for the most efficient use of energy.

Features and benefits:

  • Twin-blade dryer with V-style formation for fast, quiet drying under nine seconds.
  • Produces sheets of ‘clean’ air at over 100 m/s.
  • Heavy-duty stainless steel casing provides excellent ongoing protection against corrosion and vandalism.
  • The automatic ‘no touch’ operation ensures impeccable hygiene.
  • Eco-mode switches inside the casement to allow power consumption adjustment, helping reduce cost and carbon footprint.
  • Automatic cut-off minimises energy waste.
  • Reduced noise levels make this one of the most quiet and discrete dryers in any class.
  • Built-in removable HEPA filter for hygienic operation with filtered air.
  • Easy to install and maintain.
  • Finishes available in brushed metal, reflex silver and arctic white.

Application:

Suitable for high traffic washrooms, including restaurants, schools, nightclubs, bars, airports, service stations, hotels, large offices, hospitals, gyms, cinemas and shopping centres.

General information
Color

Brushed Metal, Silver, White

Features

Automatic operation, Vandal proof hardware, 9 seconds drying time, 70db noise output, Easy installation

Finish

Brushed Metal, Silver, White

Material

304 Stainless Steel

Shape

Rectangular, chamfered profile

Size

310mm W x 325mm H x 188mm D

WarrantyDescription

2 years

Uniclass 2015
Hand dryers (Pr_40_70_62_37)Primary
Specification data - Hand dryers
Product Reference

Edge Hand Dryer

Standards

CE, RoHs

Form

Hands-under

Operation

Infrared automatic ‘no touch’

Timer

60 seconds auto cut off

Electrical supply -
Power rating

Variable 800–2000 W

Rated operational voltage

220–240 V AC

Frequency

50/ 60 Hz

Body -
Finish

Arctic white

Brushed metal

Reflex silver

Ingress protection minimum

IPX1

Noise level at 1 m maximum

70 dB

Installation

Wall mounted

Drying time

9 seconds

Air speed

100 m/s

Thermal protection

Cut off above 70°C

Net weight

6 kg

Filter

HEPA filter

Standard product features

Colour:

Dependent on finish.

Features:

Automatic operation, vandal proof hardware, 9 seconds drying time, 70 dB noise output, easy installation.

Finish:

Three finishes available.

Material:

Stainless steel, grade 1.4301 (304).

Shape:

Rectangular, chamfered profile.

Size:

310 x 325 x 188 mm (w x h x d).

Warranty description:

Two years.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
