EcoTherm Eco-Cavity - Cavity Wall Insulation

Name: EcoTherm Eco-Cavity - Cavity Wall Insulation
Brand: Kingspan Insulation
SKU: k2FihWykLCLBkKBbZyrhcv

Verified by manufacturer 3 days ago

Eco-Cavity Insulation Board - 50 mm

Kingspan Insulation

Product certifications:

EPD
Certificate type
ISO 37301 (Compliance Management Systems)
Certificate type
ISO 37301 (Compliance Management Systems)
Certificate type
Certificate of Approval cdfa
Certificate type
BBA Agrément Certificate
Certificate type

Partial fill polyisocyanurate (PIR) insulation for cavity wall applications.

Jump to:

Request BIM

+44 (0)1544 388601 Website

Application

Suitable for use within partial fill cavity walls.
Eco-Cavity is ideal for use with traditional masonry walls.

Description

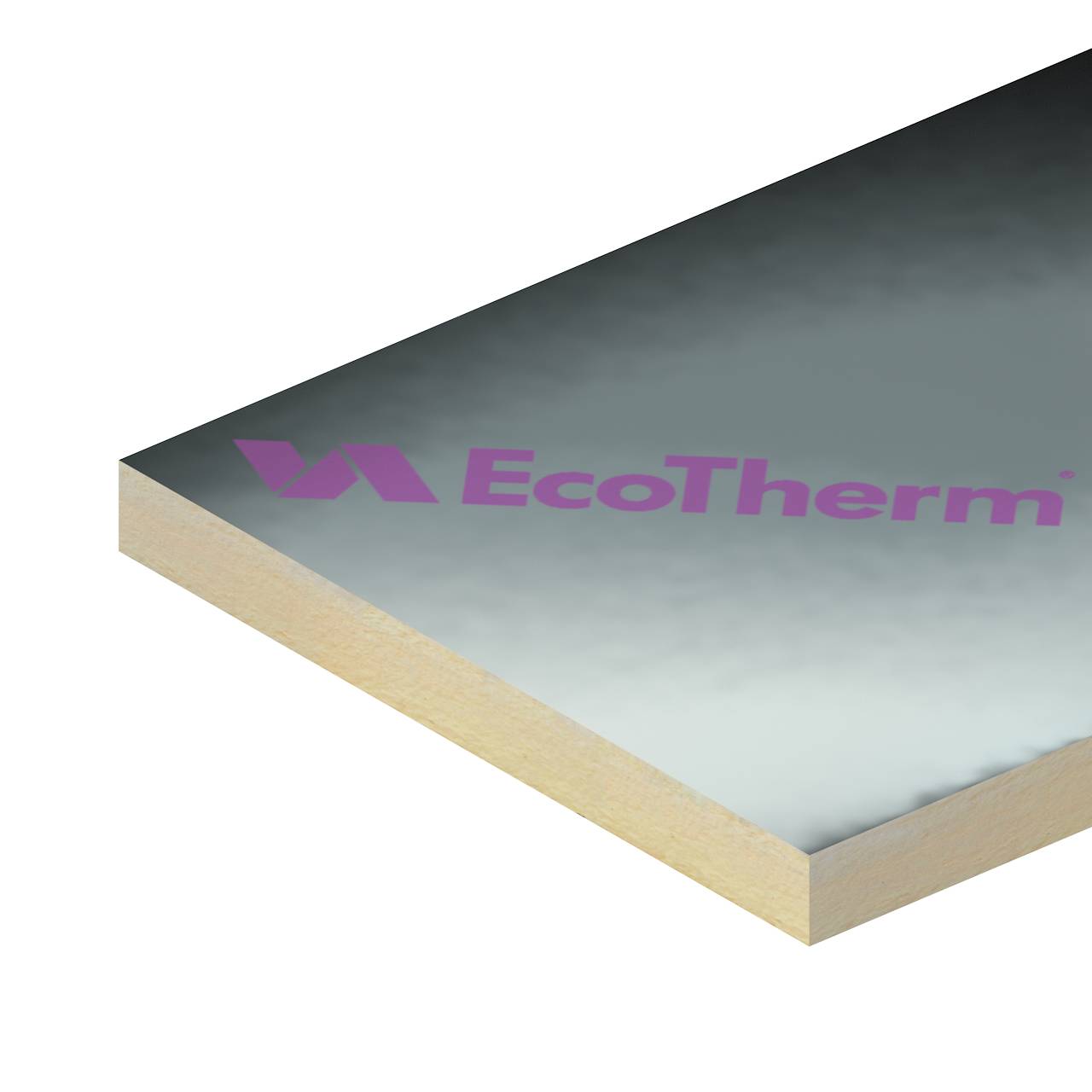

Eco-Cavity comprises a polyisocyanurate (PIR) insulation core faced with a low emissivity aluminium foil composite on both sides. Eco-Cavity is a partial fill cavity wall insulation used within traditional masonry constructions.

It can achieve high levels of thermal performance whilst maintaining a clear residual air gap, providing effective protection against driving rain, particularly in coastal and exposed locations. Eco-Cavity is conveniently sized so that the boards co-ordinate with brick and block dimensions and to allow the insertion of wall ties into the construction at the appropriate spacing.

Features and benefits:

Air gap between the insulation and masonry outer leaf acts as a barrier to external moisture penetration.
Lightweight insulation – easy to transport.
Rigid polyisocyanurate (PIR) insulation core.
Aluminium composite foil facing to both sides.
British Board of Agrément (BBA) certification.

General information

Color	Silver
Material	Polyisocyanurate (PIR) Aluminium
Shape	Rectangle
Length	1200 mm
Width	450 mm
Height	50 mm 60 mm 70 mm 75 mm 80 mm 100 mm Show more Manufacturer guidance Thickness.

Uniclass	Pr_25_71_63_66 Polyisocyanurate (PIR) foam boardsPrimary
CAWS	F30/10 Full fill cavity insulation F30/150 Full fill cavity insulation

Specification data - Polyisocyanurate (PIR) foam boards

Classification data
Standard	To BS EN 13165.
Third-party certification	British Board of Agrément (BBA) certification.
Fire performance	Euroclass F. Guidance for specification option: Under system 4 AVCP.
Thermal conductivity (maximum)	To EN 12667, 0.022 W/mK.
Compressive strength at 10% deformation	120 kPa. Guidance for specification option: To BS EN 826. Manufacturer guidance Declared compressive stress at 10% compression.
Cross section	Uniform thickness.
Thickness (nominal)	50 mm.
Face size (length x width)	1200 x 450 mm.
Facing	Foil. Guidance for specification option: Aluminium composite foil on both outer and inner facing. Makes up 12% of material for insulation board.
Edges	Square.
Thermal resistance	To BS EN 13165, 2.25 m²K/W.
Unit weight	1.1 kg.
Core material	Polyisocyanurate (PIR). Guidance for specification option: Makes up 88 % of material for insulation board.
