EcoStruxure EV Charging Expert - EV Charging Load Management
Verified by manufacturer 15 days ago

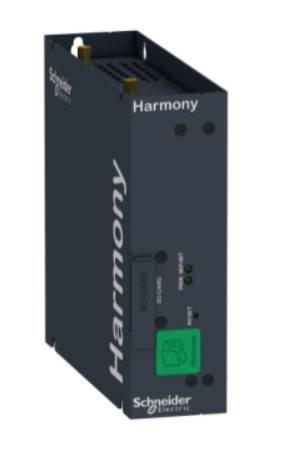

HMIBSCEA53D1EDL - 100 charging stations, dynamic charge management
HMIBSCEA53D1EDL - 100 charging stations, dynamic charge management
Electric vehicle charging management infrastructure.
Application
To manage the overall energy allocated to each vehicle.
EcoStruxure EV Charging Expert provides a solution for fleets, private company parking or condominiums to enjoy EV charging services all while ensuring an optimized use of energy and a cost-effective and sustainable operation.
EcoStruxure EV Charging Expert controls the EV charging infrastructure. It allows to limit the instantaneous power drawn by the entire set of connected electric vehicles, and manages the power allocated to each one of them.
Description
EV charging infrastructure load management, access management and supervision solution. Monitor, control and maximize EV charging based on the real-time available power in each building.
Features and benefits:
- Maximized continuity of service all while providing fair and controlled EV charging services.
- Minimum infrastructure upgrade.
- On-peak/off-peak tariff settings.
- Connection to embedded dashboard for supervision and control, to a CPO backend or to BMS.
- Upgrade to a higher level software license to adapt to evolving EV charging needs.
- Easy installation and commissioning with a configuration assistant and features such as automatic scan of chargers.
- Easy operation with user access management and charging sessions data registering.
- Easy maintenance with remote charging station control and logs data registering.
- Avoids facility disruption, causing operating losses.
- Reduces power and electrical infrastructure costs.
- Makes operations more efficient.
- Increases driver satisfaction.
General information
Color | Black |
Finish | Smooth |
Material | Metal |
Shape | Rectangle |
Length | 157 mm |
Width | 46 mm |
Height | 150 mm |
Warranty description | 18 months |
Uniclass | |
CAWS | V90/445 Electric vehicle charging points V90/430 Electrical accessories V90/590 Equipment |
SKU Code | HMIBSCEA53D1EDL |
GTIN/EAN | 3606481455536 |
Specification data - Field controllers
Classification data | |
Description | Charge controller, EVlink, 100 charging stations, dynamic charge management. |
Enclosure | |
Ingress protection (minimum) | IP40. |
Mounting | Suitable for surface fixing. Guidance for specification option:
Suitable for DIN rail mounting. |
Network communications options | Web server for OCPP 1.6. Via Modem. |
Port arrangement | Ethernet RJ45 Cat.6 to connect device to charging station. Ethernet RJ45 to connect device to charging station. Modem to connect device to central management system. |
Controller inputs, sensors and devices | Energy meter. |
User interfaces | Webserver. |
Accessories | Manufacturer guidanceConsult manufacturer and insert requirements. |
Dimensions | 150 x 157 x 46 mm. Manufacturer guidanceHeight x width x depth. |
Voltage | 12–24 V DC. |
Power consumption | 16 W. |
Standards | To EN/IEC 61131-2, EN 55011 and EN/IEC 61000-6-4. |
Certification | CE, EAC and RCM Marked. |
Sustainability data
Country of product manufacture | Taiwan |
Material | Metal |
