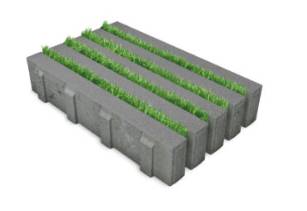

EcoSteen Stroke Paving Units - Permeable Concrete Paving
Verified by manufacturer 2 months ago
Cannobio
Cannobio
Permeable Concrete Paving.
Application
Suitable for outdoor green paving applications including parking in public spaces.
Description
EcoSteen is a climate-adaptive paving solution. Long sections of permeable space allow space for plants and water to use. This combines liveability, functionality and design freedom into one modular product. It can hold heavy loads while allowing water permeability making it a good candidate for green parking spaces.
Features and benefits:
- Suitable for parking.
- Suitable for green spaces.
- Manufactured to BS EN 1339.
- High water infiltration.
- 20% permeable.
General information
Color | Grey Black |
Material | Precast concrete |
Shape | Rectangle |
Length | 600 mm |
Width | 400 mm |
Height | 120 mm |
Uniclass | |
CAWS | Q24/117 Permeable concrete block paving – partial infiltration |
Specification data - Special composite paving units
Size | 600 x 400 x 120 mm.Manufacturer guidanceLength x width x thickness. |
Material | Cement, cement replacements, aggregates. |
Finish | Natural aggregate. |
Colour | Cannobio. |
Standard | To BS EN 1339. |
Arrises | Bevelled. |
Density | 2300 kg/m³. |
Abrasion resistance | ≥ 23. Guidance for specification option: Wide wheel abrasion test. |
BendingStrength | ≥ 4.0 MPa. |
TensileStrength | ≥ 3.6 MPa. |
Slip resistance | To BS EN 16165, PTV ≥ 0.3 (dry), ≥ 0.4.0 (wet). Guidance for specification option: With the GMG200. |
Fire performance | Class A1 non combustable. |
Declaration of conformity | CE Marked to BS EN 1339:2003. |
