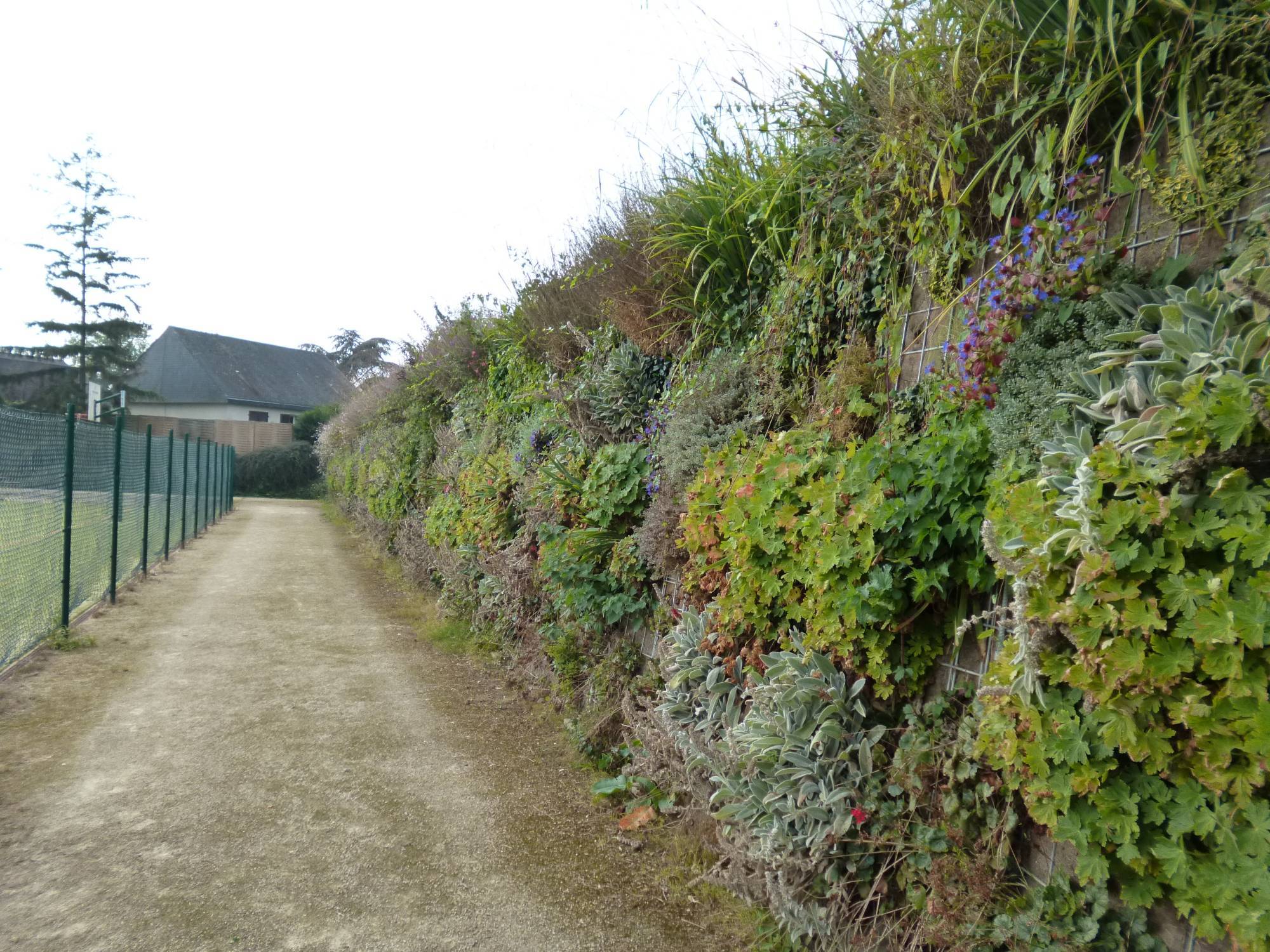

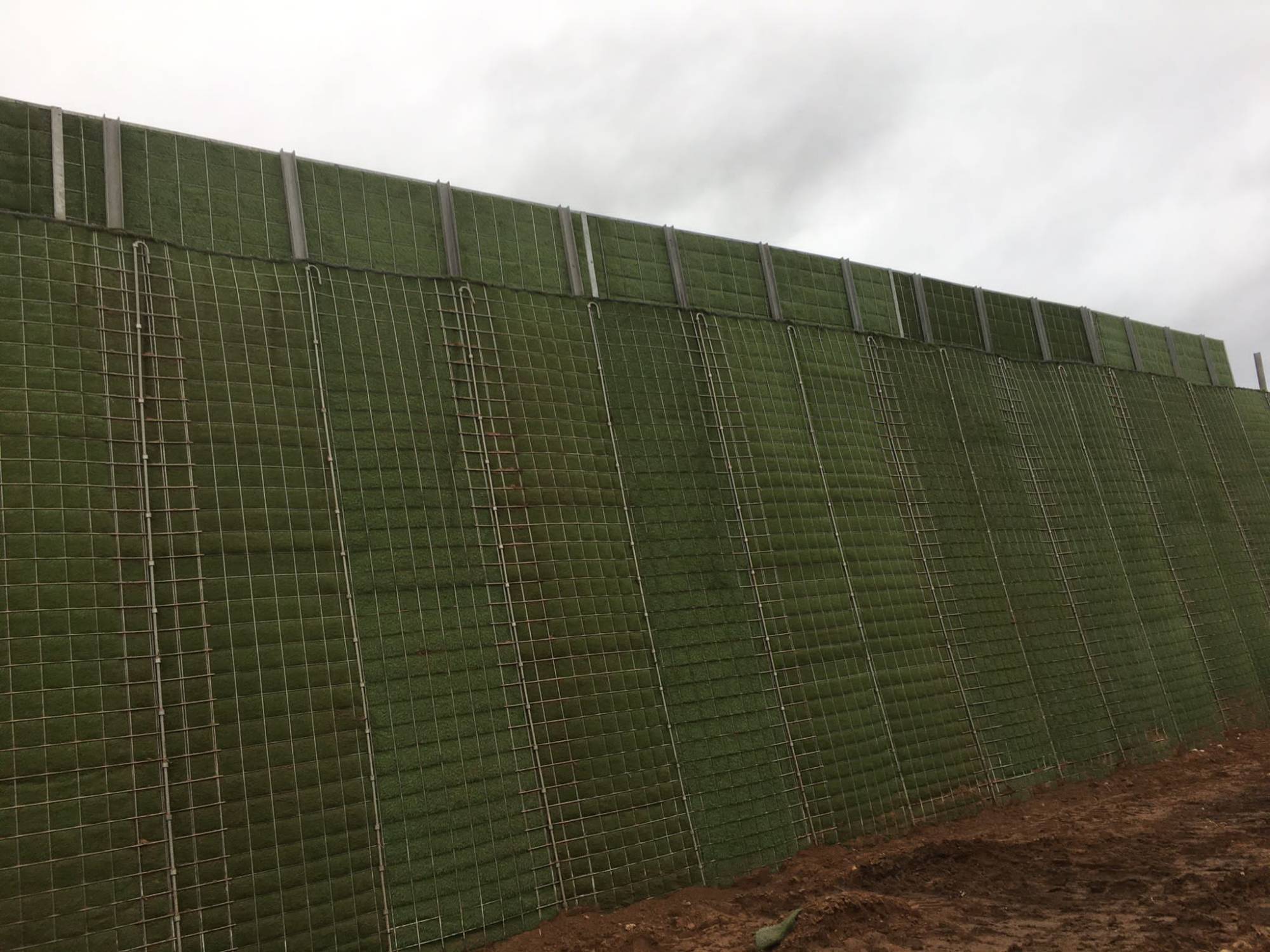

ECOSoundBlok Living Acoustic Barrier - Living Green Noise Barrier System
Verified by manufacturer 4 months ago
Noise barriers providing protection against noise pollution and offering a space-saving alternative to earth bunds.
Application
A revolutionary space-saving alternative to earth bunds. Particularly suited to housing developments and industrial sites.
Description
Noise barriers providing protection against noise pollution and offering a space-saving alternative to earth bunds.
Composed of three component:
- Bespoke self-supporting structural steel framework.
- Acoustic artificial grass.
- Steel vertical supports.
These are put together on site without any bolts and/ or welding for a “zero failure” system upon assembly.
Features and benefits:
- Massive space savings over earth bunds, meaning more space, more units.
- No foundations required up to 3 m high.
- Spoil from site may be used in the construction of the barrier, saving removal cost.
- Life span of 60 years.
- Graffiti resistant.
- Green/ living barrier more acceptable by Local Authority Planning.
- Lower carbon solution
- Huge bio-diversity
General information
Color | Green |
Finish | Woven Guidance for specification option: Matting and artificial grass. Textured Natural |
Material | Steel Soil Other Guidance for specification option: Acoustic matting. |
Shape | Triangle |
Length | Bespoke |
Width | 1000 mm 1200 mm 1400 mm 1600 mm 1800 mm |
Height | 2000 mm 3000 mm 4000 mm 5000 mm 6000 mm |
Uniclass | |
CAWS | Q40/170 Acoustic fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Specification data - Modular unit vertical planting systems
Primary structure | Bespoke self-supporting structural steel framework. |
Secondary support structure | Acoustic outer matting and steel vertical supports. |
Modular panels | |
Growing medium | To suit planting.Not required. |
Planting | None.Artificial grass.Guidance for specification option: Consult manufacturer for details. Vegetation.Guidance for specification option: Insert requirements. |
Dimensions | Guidance for specification option: Insert requirements or e.g. drawing reference/ schedule:
Bespoke heights/ lengths available on request. |
Technical characteristics, other | Barrier rating: A5, B4. |
Weight | 1250 kg/m². |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel Soil Other Guidance for specification option: Acoustic matting. |
Recyclability | 85% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 65 % |
Literature

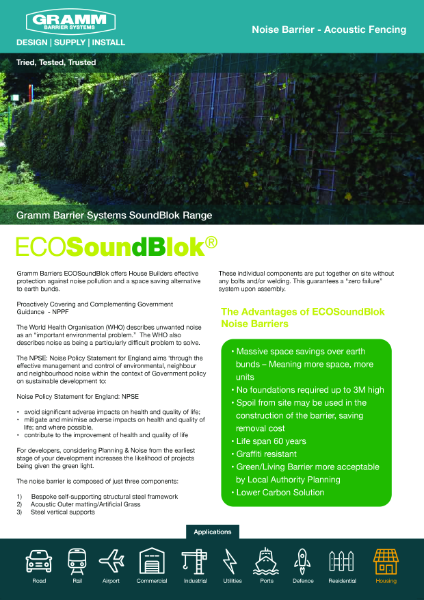

ECOSoundBlok Living Acoustic Barrier
