Ecophon Focus Levels acoustic ceilings and wall panels - Acoustic Panels

Name: Ecophon Focus Levels acoustic ceilings and wall panels - Acoustic Panels
Brand: Saint-Gobain Ecophon
SKU: bwziJks31Kq2EFXLiGWKWo

Verified by manufacturer 10 days ago

20 mm thickness

Saint-Gobain Ecophon

Product certifications:

EPD
Certificate type
M1 emission classification
Certificate type
Indoor Air Comfort – Eurofins
Certificate type
Cradle to Cradle Certified
Certificate type
European Technical Approvals
Certificate type

Acoustic panels for direct fixing to walls, ceilings and soffits.

Jump to:

+44 (0)1256 855208 Website

Application

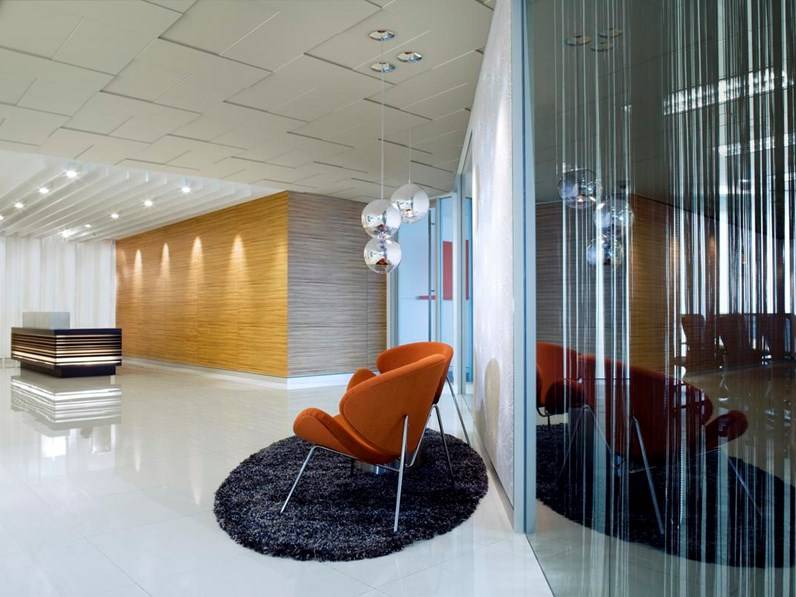

Suitable for cellular offices, corridors, receptions, entrance halls, waiting rooms, team work spaces and other public areas where visual appeal and sound quality are equally important.

Description

Ecophon Focus Levels acoustic ceiling and wall panel system is a creative system with different thicknesses, sizes and colours. The system is glued edge-to-edge directly to an existing soffit, ceiling or wall.

Features and benefits:

Absorption class B.
Painted edges.
Different panel thickness and sizes creates distinctive patterns.

General information

Color	Beige Black Blue Brown Green Grey Orange Pink White Yellow Clear Bronze Copper Cream Gold Ivory Purple Red Silver Turquoise Other Show more
Finish	Coated
Material	Glass mineral wool
Shape	Square Rectangle
Length	600 mm 1200 mm
Width	300 mm 600 mm
Height	20 mm 30 mm 40 mm
Warranty description	Ten year Manufacturer guidance All Ecophon installations can be warranted for ten years.

Uniclass	Pr_35_93_13_80 Sound attenuator infill unitsPrimary
CAWS	K13/170 Acoustic panel lining K13/170 Acoustic panel lining K40/265 Infill units K40/10 Unit/ modular suspended ceilings

SKU Code	Ecophon Focus Levels acoustic ceilings and wall panels

Specification data - Sound attenuator infill units

Standard	To EN 13964:2014.
Third-party certification	Eurofins Indoor Air Comfort® IAC, French VOC A, Finnish M1.
Form	Panel.
Rigidity	Rigid.
Application	Ceiling mounting. Soffit mounting. Wall mounting.
Material	Glass wool.
Acoustic performance	-
Purpose	Absorber.
Sound absorption	Class C to BS EN ISO 11654. Guidance for specification option: 20 mm thick.
Fire performance	-
Reaction to fire	To EN 13501-1, Class A2-s1, d0.
VOC emissions	E1.
Dimensions	-
Size (length x width)	600 x 600 mm. 1200 x 300 mm. 1200 x 600 mm.
Thickness (overall)	20 mm.
Edges	Square.
Finish	Akutex™ FT.
Colour	White frost. Moonlight sky. Highland fog. Sunset heat. Ocean storm. Morning drizzle. Peach rose. Goji berry. Scallop shells. Fresh clover. Sage garden. Eucalyptus leaf. Summer forest. Golden field. Ruby rock. Wet sand. Silent steam. Dark diamond. Cloudy day. Volcanic ash. Silver stone. Silk slate.
Accessories	Not required. Connect Absorber glue.

Moisture resistance	To EN 13964:2014, Class C (relative humidity 95% and 30°C).

Sustainability data

Contains Red List materials	No
Country of material origin	Sweden
Country of product manufacture	Sweden
Material	Glass mineral wool
A1-A3 (production stage)	Embodied carbon as defined in BS EN 15804
Normalised unit
Declared unit	4.32 kg CO₂ eq/m² Certified Lower emissions Guidance for specification option: Focus Levels 20 mm. Focus Levels 30 mm: 5.42 kg CO2 eq/m2. Focus Levels 40 mm: 6.51 kg CO2 eq/m2.
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	64 %
Expected Life	50 year
