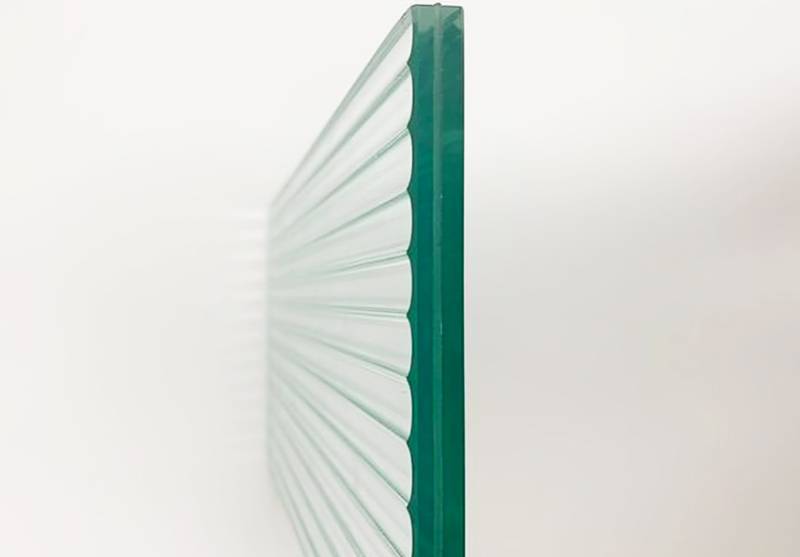

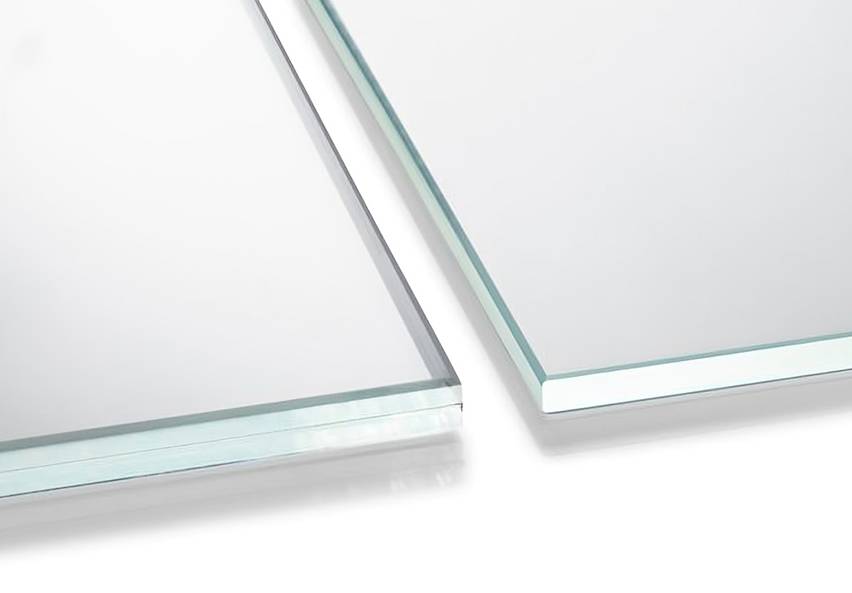

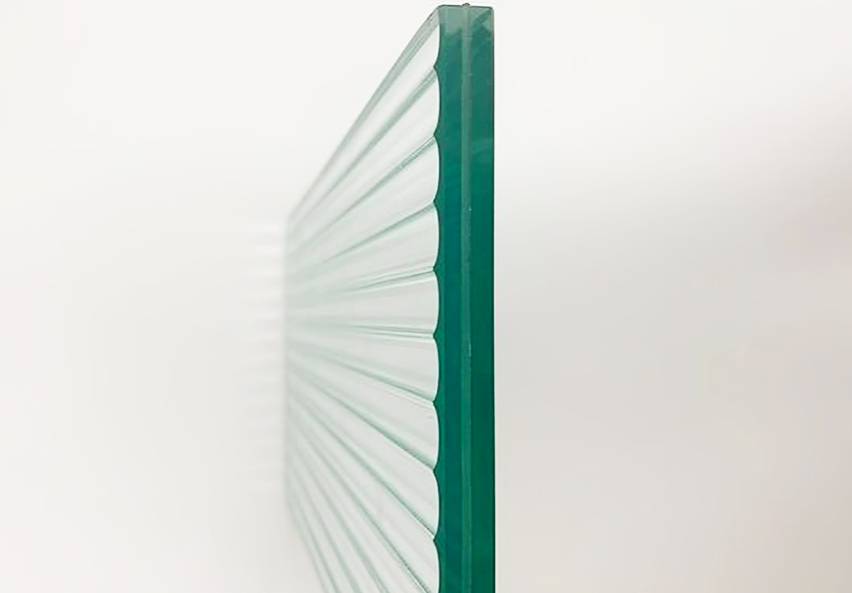

ecoLAM™ Laminated Glass Units

Name: ecoLAM™ Laminated Glass Units
Brand: Futureglass
SKU: iuRScGgDBzL4DB9u8cgQ8V

Verified by manufacturer 7 months ago

ecoLAM™ Laminated Glass Units for use in safety-critical applications including balustrades, balconies, atriums, entrances, overhead glazing, floor glazing, barriers, and other applications.

Jump to:

Request BIM

+44 7537188799 Website

Application

Suitable applications include:

Balustrades,
Balconies,
Atriums,
Entrances,
Overhead glazing,
Floor glazing,
Barriers,
Other applications where structural integrity and post-breakage performance are essential.

Description

High-performance laminated safety glass incorporating advanced interlayer technology for enhanced structural integrity, post-breakage performance, edge stability, and UV protection.

Features and benefits:

Safety classification: Class 1(C)1 to BS EN 12600.
Security rating: minimum P2A to BS EN 356.
Light transmittance: ≥88% (for clear glass).
UV transmittance: ≤0.5%.
Visible light reflectance: ≤8%.
Sound reduction index (Rw): 35–36 dB.
Impact resistance: shall meet or exceed the requirements of BS 6180 for barriers in and about buildings.
Wind load resistance: shall withstand design wind loads in accordance with BS EN 1991-1-4.

Glass composition:

Outer ply:
- Material: fully toughened heat soak tested safety glass to BS EN 12150 and BS EN 14179.
- Thickness: 6 mm (nominal).
- Finish: clear/mid Iron or low iron as specified in schedule.
- Processing: heat soak tested in accordance with BS EN 14179 to minimize the risk of spontaneous breakage due to nickel sulfide inclusions.
Interlayer:
- Material: Kuraray SentryGlas® ionoplast or equivalent high-performance structural interlayer.
- Thickness: 1.52 mm (nominal).
- Properties: high stiffness, superior edge stability, excellent post-breakage performance, and enhanced weather resistance.
Inner ply:
- Material: fully toughened heat soak tested safety glass to BS EN 12150 and BS EN 14179.
- Thickness: 6 mm (nominal).
- Finish: clear/mid iron or low iron as specified in schedule.
- Processing: heat soak tested in accordance with BS EN 14179 to minimize the risk of spontaneous breakage due to nickel sulfide inclusions.
Overall thickness: 13.52 mm (nominal).

General information

Color	Clear
Finish	Glazed
Material	Glass
Shape	Circle Crescent Diamond Elliptical Formless Hexagon Kite Octagon Oval Parallelogram Pentagon Rectangle Rhombus Square Trapezium Trapezoid Triangle Other Show more
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	12 year

Uniclass	Pr_25_71_33_46 Laminated glass sheetsPrimary
CAWS	L10/25 Aluminium windows L10/210 Wood windows L10/10 Wood windows L10/3 PVC-U windows L10/400 Composite windows L10/330 Aluminium windows L10/350 PVC-U windows L30/560 Proprietary balustrades L10/390 Proprietary windows L10/20 Steel windows H10/10 Patent glazing K13/160 Proprietary L10/51 Glazed screen systems L10/460 Rooflights H10/115 Patent glazing L30/55 Proprietary balustrades L10/45 Rooflights L10/33 Proprietary windows K13/160 Proprietary H13/115 Structural glass assembly H11/110 Curtain walling L10/46 Roof windows L10/560 Glazed screen systems L10/310 Steel windows L10/480 Roof windows

SKU Code	ecoLAM™

Specification data - Laminated glass sheets

Classification data
General requirements	Glass generally.
Third-party certification	CE marked/UKCA marked in accordance with the Construction Products Regulation.
Laminate glass type	Safety.
Thickness	13.52 mm.
Outer leaf	Thermally toughened glass.
Inner leaf	Thermally toughened glass.
Interlayer to glass leaves	Kuraray SentryGlas® ionoplast.
Sealing	At perimeter to prevent deterioration due to water or glass joint sealant.
Body colour	Clear. Guidance for specification option: Mid or low iron.
Pattern	- Manufacturer guidance Consult manufacturer and insert requirements or omit.
Performance requirements	-
Fire resistance	-
Integrity	To BS EN 13501-1, Class A1.
Light	Transmittance: ≥88% (for clear glass).
Solar control	UV transmittance: ≤0.5%.
Impact resistance	To BS EN 12600, drop height Class 1.
Security	To BS EN 356, P2A.
Applied detail	- Manufacturer guidance Consult manufacturer and insert requirements or omit.
Light reflectance	≤8%.
Sound reduction index	35–36 dB (Rw).
Edge detail	Polished. Guidance for specification option: Edge processing: polished edges unless otherwise specified. Edge configuration: as per project requirements and application. Edge sealant: where required, edge sealant compatible with the interlayer material to protect against moisture penetration. Other. Guidance for specification option: Consult manufacturer and insert requirements.

Sustainability data

Contains Red List materials	No
Country of material origin	United Arab Emirates
Country of product manufacture	United Arab Emirates
Material	Glass
Expected Life	30 year
