Eco 4 HRU Heat Recovery Unit

Eco 4 HRU Heat Recovery Unit

Heatrae Sadia Heating

Eco 4 HRU Heat Recovery Unit – removes contaminated air and recovers heat in the incoming air supply. Ensures year-round comfort and low energy bills to occupants of the modern airtight home.

Jump to:
+44 (0)344 8711535 www.heatraesadia.com
Description

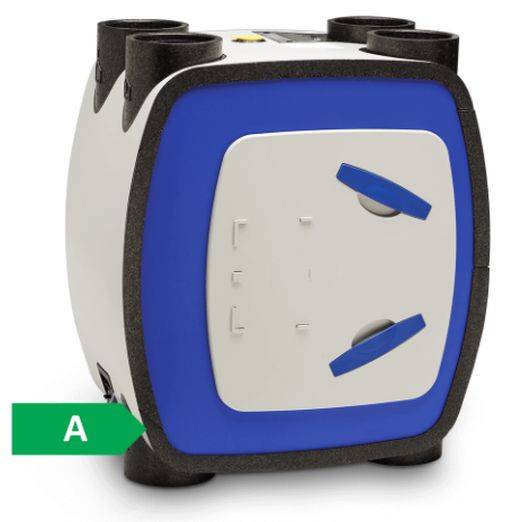

Eco 4 HRU (Heat Recovery Unit) – removes contaminated air and recovers heat in the incoming air supply.

The HRU ECO 4 ensures year-round comfort and low energy bills to occupants of the modern airtight home. While removing contaminated wet air from kitchens, utility rooms and bathrooms, the unit simultaneously introduces fresh preheated air to other rooms in the home.

The HRU ECO 4 diverts up to 91% of heat from the air, leaving the building in the incoming supply. A 100% summer bypass valve prevents unwanted heat entering the home on hotter days, while at the other end of the temperature gauge, a frost protection device prevents the unit from freezing. Suitable for homes with up to 175 m2 of floor space, the HRU ECO 4 uses less energy than intermittent fans.

Included in object:

  • Eco 4 Apartment.
  • Eco 4 House.

General information

Color

Blue/White/Black

Features

Available in house and apartment configurations, hard wired or remote wireless control available, light weight and compact, built in frost protection device, built in 100% summer bypass, 91% heat exchanger efficiency

Material

Aluminium casing, polypropylene

Shape

Rectangular

Size

477 x 730 x 848 mm

WarrantyDescription

Manufacturer warranty

Uniclass 2015

Pr_60_65_03_86 Supply air handling unitsPrimary
Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 2 2.0
IFC
IFC2X3 1 1.3
IFC
IFC2X3 1 1.3
Download now from NBS National BIM Library
