EBD 44 Riser

Name: EBD 44 Riser
Brand: EBD Steel Doors (formerly Eurobond Doors)
SKU: 8bGGzXTf6TotAeJNGTM2eU

Verified by manufacturer 5 months ago

Single door - Non Fire Rated

EBD Steel Doors (formerly Eurobond Doors)

Third party certifications:

Certifire Certificate
Certificate type

Fire rated steel riser doorsets (FD60/120/240(s)).

Jump to:

+44 (0)2920 36 11 11 Website

Application

Suitable for commercial applications.

Description

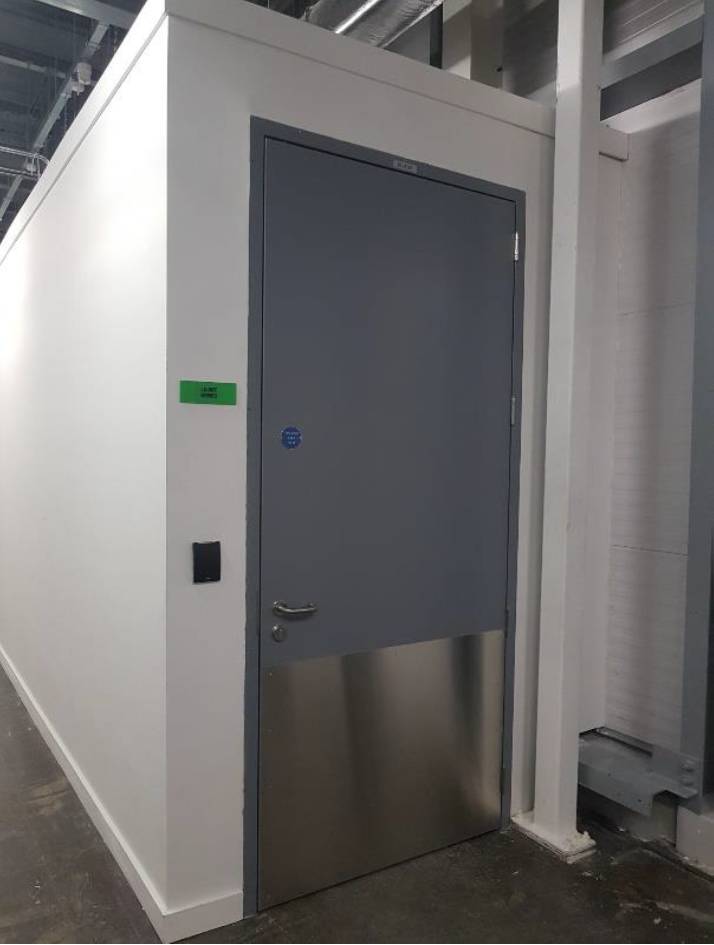

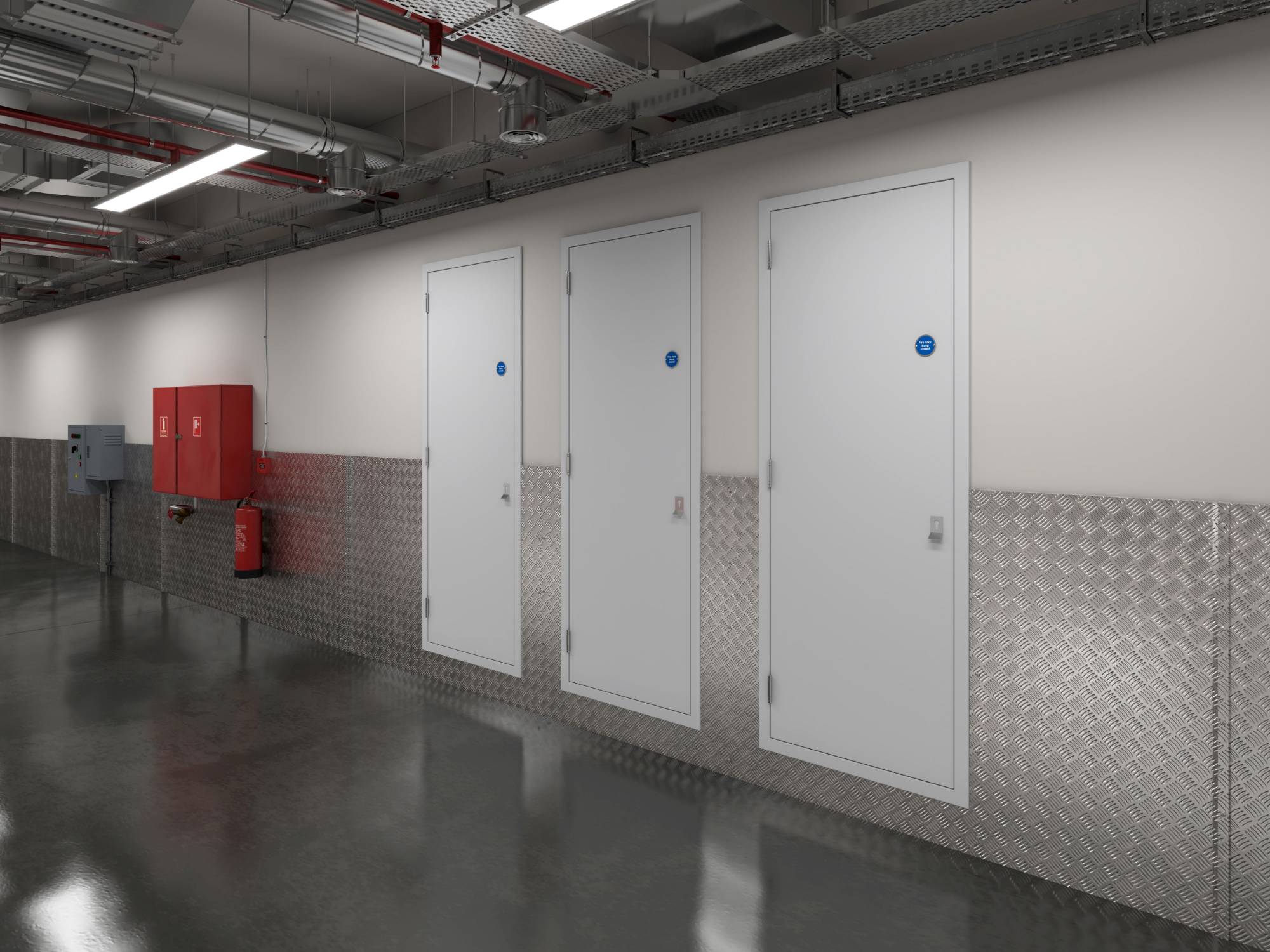

Fire-resisting metal doorsets for service cupboards, service risers and other non-personnel secondary rooms. The steel riser door provides the containment and fire performance required by these areas of the building.

Features and benefits:

Provides fire resistance of up to 240 minutes.
Double and single doorsets are available.
Available with a range of frame and louvre options.

General information

Color	Other Guidance for specification option: Available in the standard RAL colour range.
Finish	Powder-coated
Material	Steel
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	One year

Uniclass	Pr_30_59_24_52 Carbon steel doorsetsPrimary
CAWS	L20/55 Doorsets L20/480 Doorsets

Specification data - Carbon steel doorsets

Configuration	Single leaf, left hand opening. Single leaf, right handed opening.
Doorset size	Guidance for specification option: Refer to data sheet for sizes. Insert requirements or refer to a schedule.
Performance	-
Fire resistance	-
Integrity	Not required.
Smoke leakage	Not required. To EN 1634-3:2004, Sa.
Acoustic performance	Not required. To BS EN ISO 10140-2, sound reduction index Rw 32 dB.
Thermal	2.1 W/m²K.
Frame	-
Material	1.2 mm galvanized steel.
Threshold	EBD standard threshold. Drop seal. Aluminum threshold. Without threshold. Raindrip threshold.
Perimeter seals or inserts	Teardrop self adhesive silicon cold smoke seal pre-fitted to the internal rebate of the frame to BS 476-31.1 and EN 1634-3. Manufacturer guidance Gasket.
Finish	-
Coating	Powder-coated.
Texture	30% gloss (matt).
Colour	RAL colour range. Guidance for specification option: Standard RAL colour range, paint finish 30% gloss (matt) minimum 40 microns. Insert requirements.
Door leaf	-
Thickness	44 mm.
Core	Dufaylite corrugated cardboard.
Material	1.2 mm galvanized steel interlocked to the back face and fixed on the top and bottom edge of the door blade.
Finish	-
Coating	Powder-coated.
Texture	30% gloss (matt).
External colour	RAL colour range. Manufacturer guidance Standard RAL colour range, paint finish 30% gloss (matt). Insert requirements.
Internal colour	RAL colour range. Manufacturer guidance Standard RAL colour range, paint finish 30% gloss (matt). Insert requirements.
Film thickness (minimum)	40 micrometres.
Door accessories	Not required. Kickplates - stainless steel brush finish. Guidance for specification option: Standard height 200 mm (up to 1250 mm from FFL, other heights available to order). Kickplates - aluminium chequer plate. Guidance for specification option: Standard height 1250 mm from FFL.
Hardware	Pull handle - Deadlocking. Lever handle - Nightlatch.

Door frame profile	Fixed rebate frame. Guidance for specification option: Frame width: 96 mm. Applications: Blockwork and masonry walls. Reinforced concrete walls. Architrave frame. Guidance for specification option: Frame width: Wall thickness + 30 mm. Applications: Plasterboard steel stud partitions. White wall sandwich panels. Please contact manufacturer to verify approved systems. Clamp frame. Guidance for specification option: Frame width: Wall thickness + 7 mm. Applications: White wall sandwich panels. Please contact manufacturer to verify approved systems.
Meeting stiles	Single astragal. Plain.
Louvres	AFDL.44 Anemostat metal louvre - double 457 x 457 mm. AFDL.44 Anemostat metal louvre - lower 457 x 457 mm. AFDL.44 Anemostat metal louvre - upper 457 x 457 mm. AFDL.44 Anemostat metal louvre - large 457 x 1546 mm.
Hinges	Grade 14 concealed bearing hinge - EN 1935:2002 and CE marked. Guidance for specification option: Satin stainless steel finish.
Door closer	EN 1154, CE or UKCA marked. Guidance for specification option: Cam Motion or Rack and Pinion.

Sustainability data

Country of product manufacture	United Kingdom
Recyclability	100
Recycled content As defined in clause 7.8 of BS EN ISO 14021	35 %

BIM objects

Platform	Compatible	Version
Revit	-	1

Third party certifications

Certifire Certificate

CF6007 - Internal HD Uninsulated Steel Fire Doorset

Certifire Certificate

CF 5960 - Internal MD Uninsulated Steel Fire Doorset

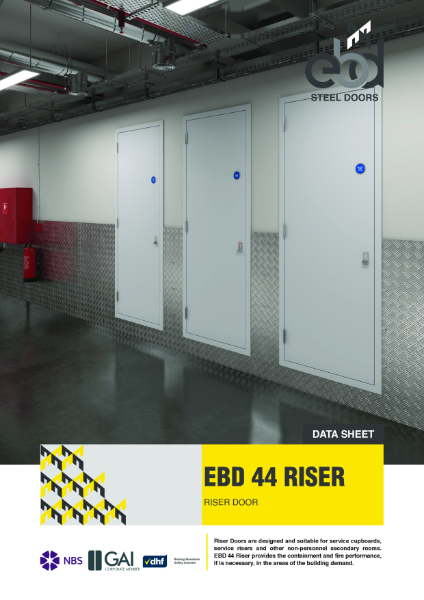

Literature

Riser Door

Case studies

Riser Doors and Access Controlled Doors for Multi-level Data Centre
