Eaves Lintels

Description

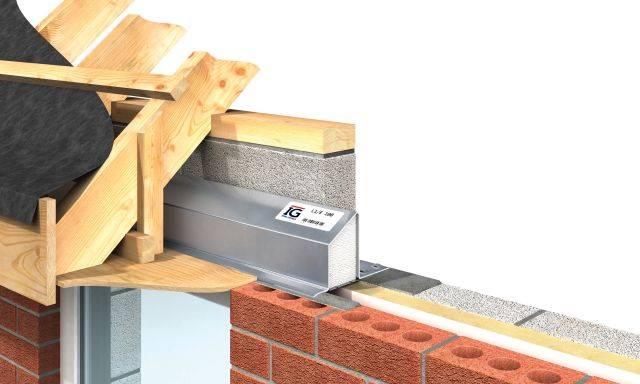

The eaves lintel has a shortened outer flange to allow the underside of the soffit board to be positioned tight against the window frame. It must be noted that brickwork cannot be built onto the outer flange of an eaves lintels. Masonry is built on the inner leaf only. The loading figures are achieved by considering the lintel and masonry as a composite unit. The IG eaves lintel also incorporates a thermal break plate on the underside of the lintel for superior structural performance. Eaves lintels are insulated with expanded polystyrene and conform to BS 13163: 2008. Profiled CFC-free insulation.

General information

Material

Galvanized steel

To BS EN 10346: 2009. DX51D plus Z600 or grade Z275 to BS 5977-2: 1983 (BS EN 845-2: 2003).

Stainless steel

Grade 304 2b 1.4307 to BS EN 10088-2. Other grades available on request: contact manufacturer.

Uniclass 2015

Pr_20_85_48_11 Carbon steel lintelsPrimary

CAWS

F30/755 Prefabricated steel lintels

F30/85 Prefabricated steel lintels

Specification data - Carbon steel lintels

Product Reference

Eaves Lintel

Type

L1/E 50

For cavity widths 50–85 mm.

L1/E 100

For cavity widths 90–125 mm.

Material

Galvanized steel

To BS EN 10346: 2009. DX51D plus Z600 or grade Z275 to BS 5977-2: 1983 (BS EN 845-2: 2003).

Stainless steel

Grade 304 2b 1.4307 to BS EN 10088-2. Other grades available on request: contact manufacturer.

Length

As drawing

As schedule

Product Options

Length:

Manufactured in 150 mm increments:

- L1/E 100 lintels, 600–1500 mm:

  • Height: 95 mm.
  • Thickness: 2.0 mm.
  • Total UDL (19:1): 18 kN.

- L1/E 100 lintels, 1650–2100 mm:

  • Height: 144 mm.
  • Thickness: 2.0 mm.
  • Total UDL (19:1): 20 kN.

- L1/E 100 lintels, 2250–2400 mm:

  • Height: 163 mm.
  • Thickness: 2.0 mm.
  • Total UDL (19:1): 22 kN.

- L1/E 100 lintels, 2550–2700 mm:

  • Height: 164 mm.
  • Thickness: 2.5 mm.
  • Total UDL (19:1): 25 kN.

Eaves Lintel is also available for cavity widths 50–85 mm. Consult manufacturer for further details.
