Eaves Beam

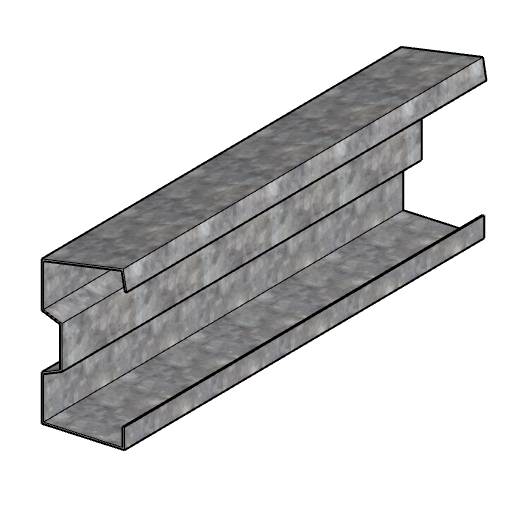

Galvanised Eaves Beam.
Designed to combine the function of purlin, cladding rail and gutter support at the eaves position Supported by a complete range of accessory components and brackets to complement the existing range of Zeta, Zeta II and Zed purlin and cladding rail systems.
| Material | Hot dipped zinc coated steel |
| Uniclass 2015 | |
| CAWS | G10/170 Cold-formed galvanized steel G10/30 Cold-formed galvanized steel |

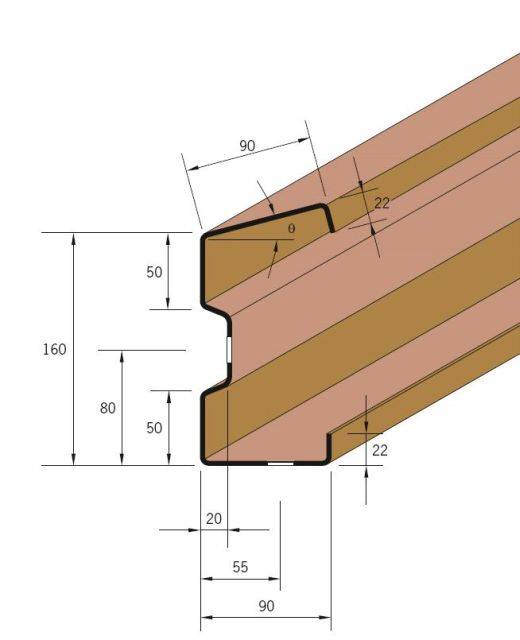

| Product Reference | EB16020160 mm deep, 2.0 mm thick. EB16025160 mm deep, 2.5 mm thick. EB16032160 mm deep, 3.2 mm thick. EB24020240 mm deep, 2.0 mm thick. EB24025240 mm deep, 2.5 mm thick. EB24032240 mm deep, 3.2 mm thick. EP16020160 mm deep, 2.0 mm thick. EP16025160 mm deep, 2.5 mm thick. EP16032160 mm deep, 3.2 mm thick. EP24020240 mm deep, 2.0 mm thick. EP24025240 mm deep, 2.5 mm thick. EP24032240 mm deep, 3.2 mm thick. |
| Length | Insert requirements |
| Accessories | FL16 fixing bracketsFL24 fixing bracketsFR16 fixing bracketsFR24 fixing bracketsS16 fixing bracketsS16/125S16/140S16/150S16/155S16/170S16/175S16/185S16/200S16/225S16/245S16/265S16/285S24 fixing bracketsS24/125S24/140S24/150S24/155S24/170S24/175S24/185S24/200S24/225S24/245S24/265S24/285EB160 restraint bracketEB240 restraint bracketFB fixing bracketEaves tie |
| Standard product features | Material: - Eaves beam: Manufactured from galvanized steel S450GD + Z275, with minimum guaranteed yield strength of 450 N/mm². - Fixing brackets: Made from grade S275 to BS EN 10025 hot dipped galvanised finish to BS EN ISO 1461. |
| Product Options | Technical characteristics:
|
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 IFC | - | 5 | 2.1 |
 Revit | - | 5 | 2.1 |
