Eaves beam LEC

Verified by manufacturer 2 months ago

Kingspan Insulated Panels Third party certifications:
  • NSAI Agrément Certificate

    NSAI Agrément Certificate

    Certificate type

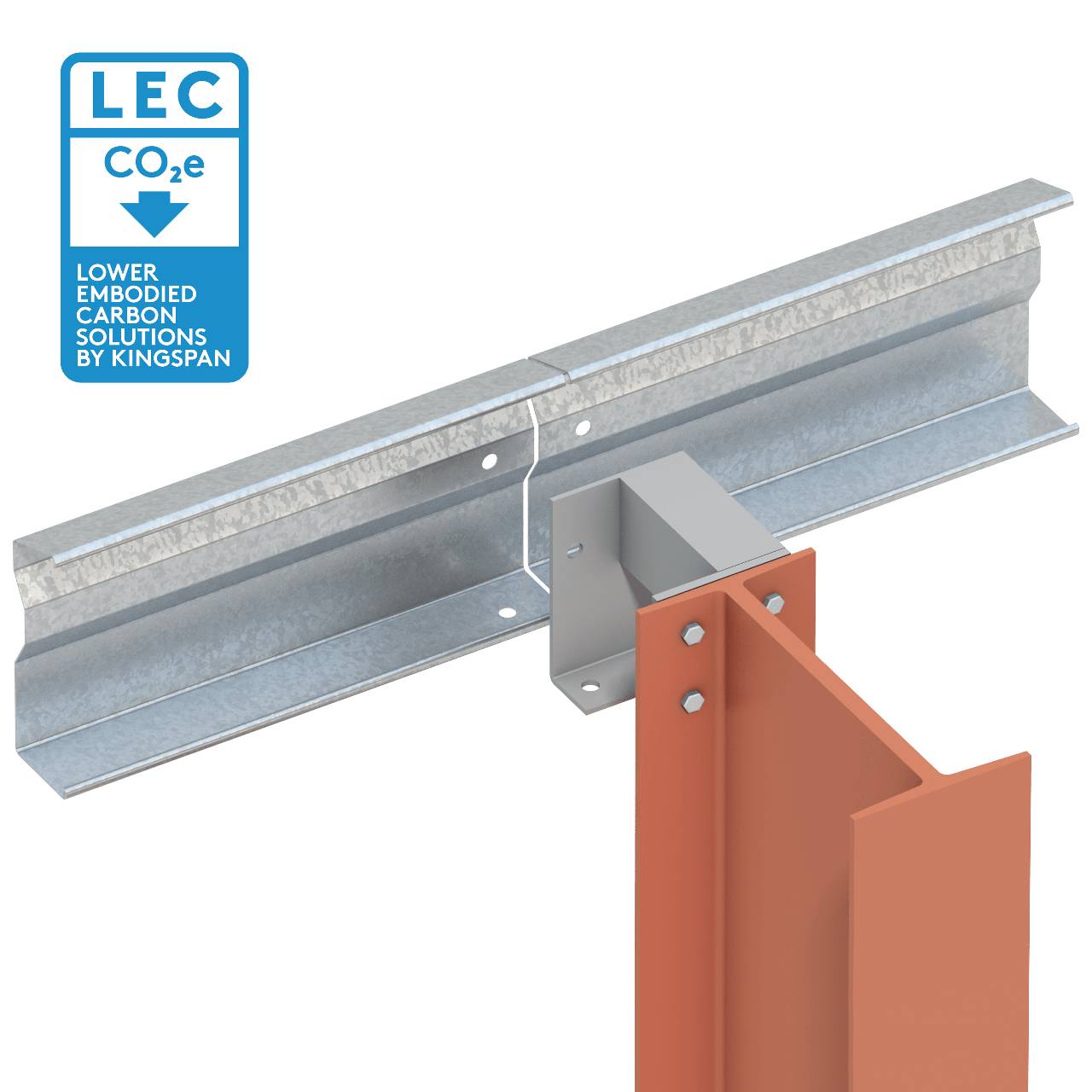

Eaves beam LEC is lower embodied carbon steel solution.

Jump to:
+44 (0)1352 716100 Website

Application

Can be used with all types of modern roof cladding systems.

Description

Eaves beam LEC suits all types of modern roof construction with bay sizes up to 15 metres and rails designed specifically to support metal clad walls in horizontal or vertical applications.


Features and benefits:

  • Caters to a variety of roof pitches and gutter types
  • Firewall solution available
  • Roof slopes from -6° to +30° achievable using advanced manufacturing methods
  • Internal or external gutter arrangements
  • A variety of section heights and weights are available allowing greater design flexibility and efficiency
  • 75% recycled content.


General information

Finish

Galvanized

Material

Carbon steel

Shape

Other

Length

Bespoke

Width

92 mm

122 mm

172 mm

Height

185 mm

215 mm

265 mm

Uniclass

Pr_20_76_51_12 Carbon steel beams, columns, channels and teesPrimary

CAWS

G10/150 Steel framing system

Specification data - Carbon steel beams, columns, channels and tees

Dimensions

Guidance for specification option:

Consult manufacturer and insert requirements.

Size

185 x 92 mm section.

215 x 122 mm section.

265 x 172 mm section.

Sustainability data

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

75 %

Third party certifications

NSAI Agrément Certificate

NSAI Agrément Certificate

NSAI Certificate of Conformity

NSAI Agrément Certificate

NSAI Agrément Certificate

NSAI Welding Certificate
