Application

For pedestrian access control.

Description

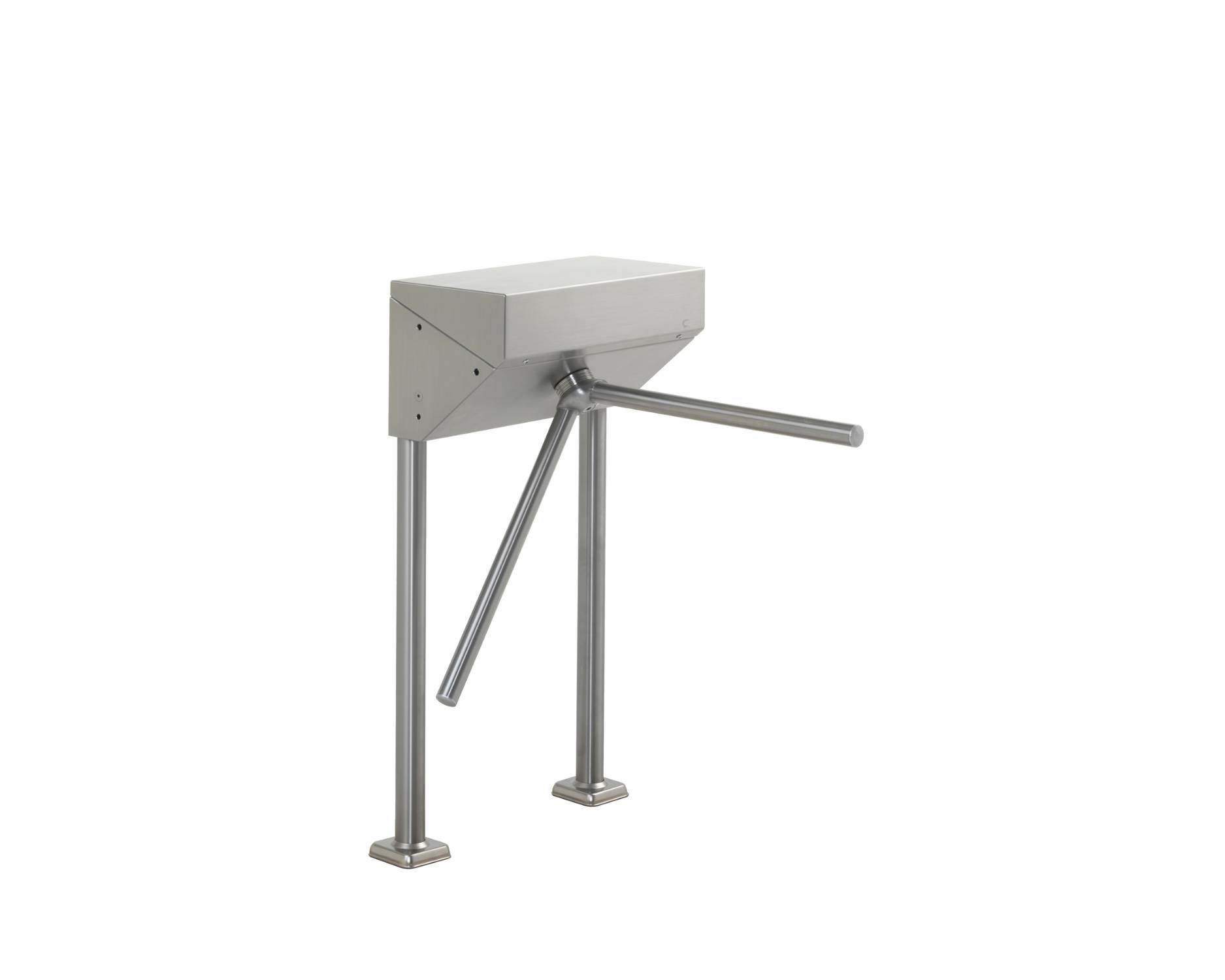

Motor-driven variable turnstile, with a compact design and variable usage options. It is efficient in use for many years, in a wide variety of situations. Provides reliable individual entry separation with minimal space requirements. Operation using card reader, coin operation, operating panel, ticketing system or to custom requirements.

Features and benefits:

  • Space-saving solution for assembly on walls or uprights.
  • Compact stainless steel housing.
  • Available with two or three arms.

Application:

For pedestrian access control.

General information
Finish

Polished

Powder-coated, RAL

Insert colour requirement.

Features

Space-saving solution for assembly on walls or uprights, compact stainless steel housing, 2 arms, climb over and crawl under protection, light sensors to start arm rotation contactlessly

Space-saving solution for assembly on walls or uprights, compact stainless steel housing, 3 arms, climb over and crawl under protection, light sensors to start arm rotation contactlessly

Material

Stainless steel

Size

930 x 525 mm

Uniclass 2015
Stainless steel half-height turnstiles (Pr_30_59_34_88)Primary
Specification data - Stainless steel half-height turnstiles
Product Reference

EasyGo

Type

Two arms

Three arms

Rotation

Freely rotating

Control unit

Card reader, operating panel, button

Finish

Polished

Powder-coated, RAL

Insert colour requirement.

Operating temperature

-25 to + 50°C

Function

Access can be combined with ESD technology

Barrier elements

120° rotation

Drive

Electromotor swivel unit – low-maintenance, backlash-free, long service life, adjustable motor speeds, freely rotatable when power supply is disconnected

Weight

45 kg

Passage rate

For one-time release of up to 25 people per minute

Accessories

None

Attachment board for additional connection options

Base support set

Climb-over/ crawl-under protection

Control panels

Emergency OPEN switch

Galaxy port

Guidance elements

LED release signal

Light sensors to start contactless barrier arm rotation

Mechanical or electrical gates for wheelchair-accessible passage

Standard product features

Material:

Stainless steel housing with polished stainless steel arms.

Size:

930 x 525 mm.

Technical characteristics:

  • Electricity supply: 230 V, 50–60 Hz.
  • Consumption: 20 Wh.
  • Power consumption: 200 VA.
  • Rated current: 0.88 A.
  • Protection class: I
  • Protection class for the turnstile/ controls/ power unit: IP 22.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
