EasyGate SPT Outdoor - Half-height access control gates
Verified by manufacturer 7 months ago

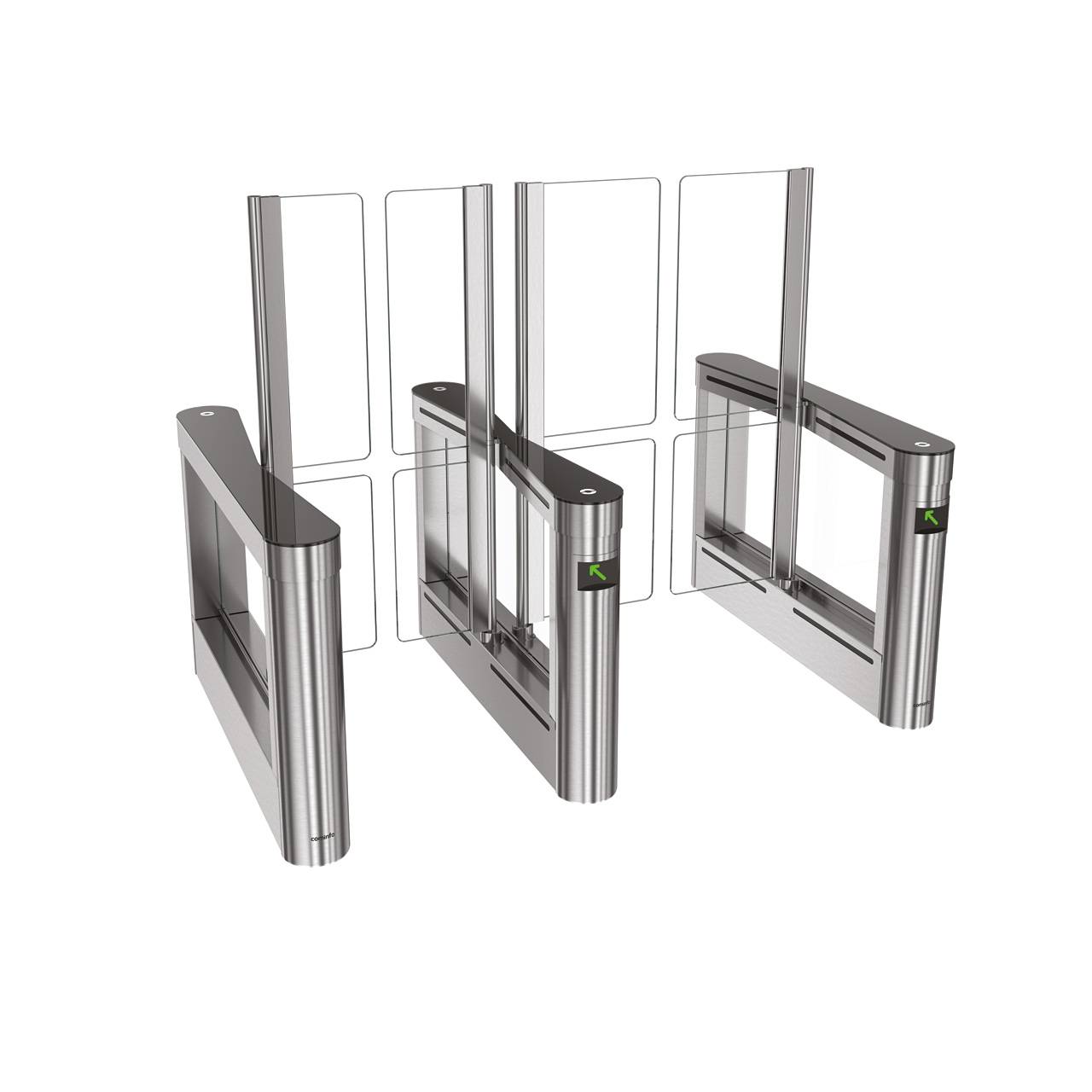

SPT-G Outdoor Single Wing (Round cabinet design)
SPT-G Outdoor Single Wing (Round cabinet design)
The SPT Outdoor Speed Gate provides access control to outdoor areas with no shelter required.
Application
Entrance control solution suitable for:
- Offices
- Higher education – universities and colleges
- Government
- Local government
- Leisure centres and gyms
- Stadiums and arenas
- Data centres
Description
Absolute convenience from entrance control
With no requirement for shelter for the SPT Outdoor Speed Gate, it has the ability to withstand harsh weather conditions, including snow and humidity. It manages this with the IP53-rated ingress protection, allowing it to be suitable for the outdoors.
Aesthetics and reliability in one
The SPT Outdoor Speed Gate has glass wings up to 1800mm high, with the option to select either a round or square cabinet design. As well as beautiful aesthetics that the SPT Outdoor offers, it also supplies reliability with its motor drive that features 30 million mean cycles before failure.
Optimal performance from security
This Speed Gate delivers top performance with excellent throughput of an opening barrier time of 0.5 seconds, allowing users to get through safely and quickly. Additionally, it has maximum locking performance due to the hardened tooth lock brake.
Features and benefits:
- High throughput
- Optional solution for bike access
- IP53 Rated to make it suitable for outdoor applications
- Climb-over detection
General information
Color | Black Bronze Gold Brown Copper |
Finish | Brushed Polished Powder-coated |
Material | Stainless steel |
Shape | Rectangle Guidance for specification option: Rectangular cabinet end. Circle Guidance for specification option: Rounded cabinet end. |
Length | 1500 mm |
Width | 180 mm |
Height | 2200 mm |
Warranty description | One year |
Uniclass | |
CAWS | L20/490 Automatic doors L20/60 Doors |
Specification data - Half-height access control gates
Properties | |
Safety features | Waist height and low level sensors; Fail safe - Open manually or automatically (with optional power back-up). |
Configuration | Swing gate. |
Housing | |
Material and finish | Brushed stainless steel 304. |
Panel | |
Type | Single wing. |
Rotation | Swing - Bidirectional (90°). |
Speed of opening | 0.5 seconds. |
Material and finish | 10 mm toughened safety glass. |
Colour | Transparent. |
Manifestation | Etched.Printed. |
Size | |
Clear opening width (minimum) | 550 mm.Guidance for specification option: Maximum 600 mm. |
Overall width | Variable based on the configuration. |
Length | 1500 mm. |
Height | 1800 mm. |
Fixing | Surface fixed to finished floor.Fixed to unfinished floor (optional subframe available). |
Security | Anti-tailgating detection. |
Credential Reader | |
Controls | Various.Guidance for specification option: Consult the manufacturer for further details. |
Number of transactions (minimum) | 30–40 per minute. |
Control unit | Touch panel.EasyTouch panel. |
Power supply | 230 V a.c. |
Communications | RS-485.USB.Ethernet. |
Accessories | Not required.RFID Reader integration (flush mounted).Edge light - LED visual lane guidance.Lane light - visual lane guidance.Wing light - Glass wing illumination.Hinge capping.Anti-vault detection - pressure sensing top lids.EasyTouch - Touch screen control panel - multiple lanes.Touch panel - capactive touch control panel - 3/4 lanes.TMON control panel - PC based.Integrated visitor card collector.EasyScan - QR/ Barcode Reader.Integrated 3rd party terminals – ticket readers/ biometrics.WAV player - audible notifications.RF remote control.Low iron glass wings.Bespoke top lid.Speed Gate plinth - surface mounting.Post mounted infill barriers.Cantilever glass barriers.Glass manifestation.Solid infill panels.Speed Gate sub frame. |
Barrier Height | 1200-1800 mm. |
Lid | Black glass panel. Bespoke coloured glass. Stainless steel with black glass ends. |
Barriers | 10 mm tempered glass wing. Tempered Low Iron glass wing. Laminated glass wing. |
Sensors | 36 pairs. |
Operating temperature | +10°C to +50°C (-25°C to +50°C with heating module). |
Door wings | One. |
Sustainability data
Country of product manufacture | Czechia |
Material | Stainless steel |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
