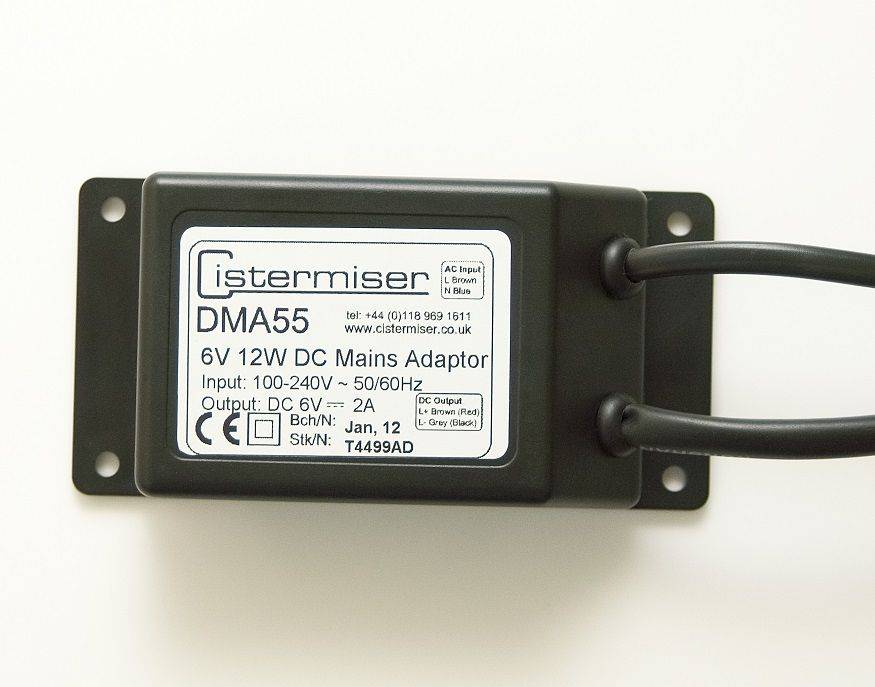

Easyflush Mains Power Adapter
Description

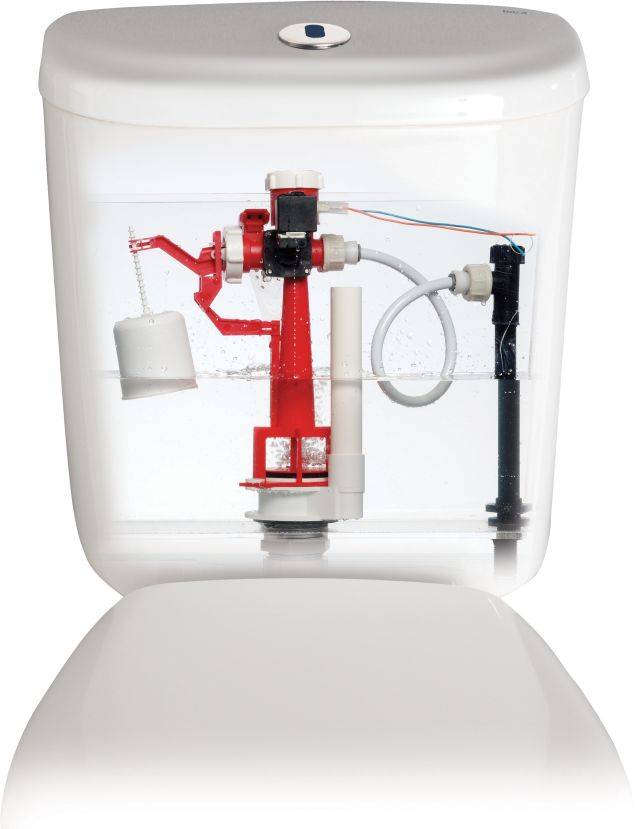

A no-touch dual flush WC cistern valve promotes best practice in water economy and hygiene in domestic and commercial washrooms.

Features:

  • Both the Wave and Walkaway sensors meet the DDA requirements and are Part M compliant.
  • Easyflush is two interlinked valves in one: a lift/ drop valve which empties the cistern and a delayed action float valve which controls refilling.
  • It also includes an integral overflow pipe to prevent flooding.
  • The compact single-piece unit is located over the outlet by a bayonet-type locking device which simplifies installation.

Benefits:

  • Infrared sensor operated WC cistern flush valve.
  • Defaults to part flush as low as 2 L for maximum water savings.
  • No-touch means no cross-contamination; hygienic.
  • Installer programmable flush volumes; improved water economy.
  • Flush (outlet) and delayed action fill (inlet) valves combined in one unit.
  • Available in active (‘wave’) or passive (‘walkaway’) mode.
  • BREEAM Wat 01 compatible product.

General information

Size

100 x 27 x 50 mm

WarrantyDescription

1 year + 2 Years extendable warranty (parts only)

Uniclass 2015

Pr_75_50_46_42 Infrared flush controllersPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

N13/302 WCs and flushing valves

Specification data - Infrared flush controllers

Product Reference

Easyflush Walkaway

Concealed installation.

Easyflush Wave

Exposed installation.

Operation

Batteries

Mains supply

Cistern

Not required

Required

Multi product supply unit

Not required

Required

To power up to 20 sensors from a single fused spur.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 2 2.0
Revit
Revit 2016 2 2.0
Download now from NBS National BIM Library
