Eastbrook Cycle Shelter

Verified by manufacturer 1 month ago

The Bike Storage Company Third party certifications:
  • Constructionline

    Constructionline

    Certificate type

  • Acclaim Accreditation

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • Certificate of Compliance

    Certificate type

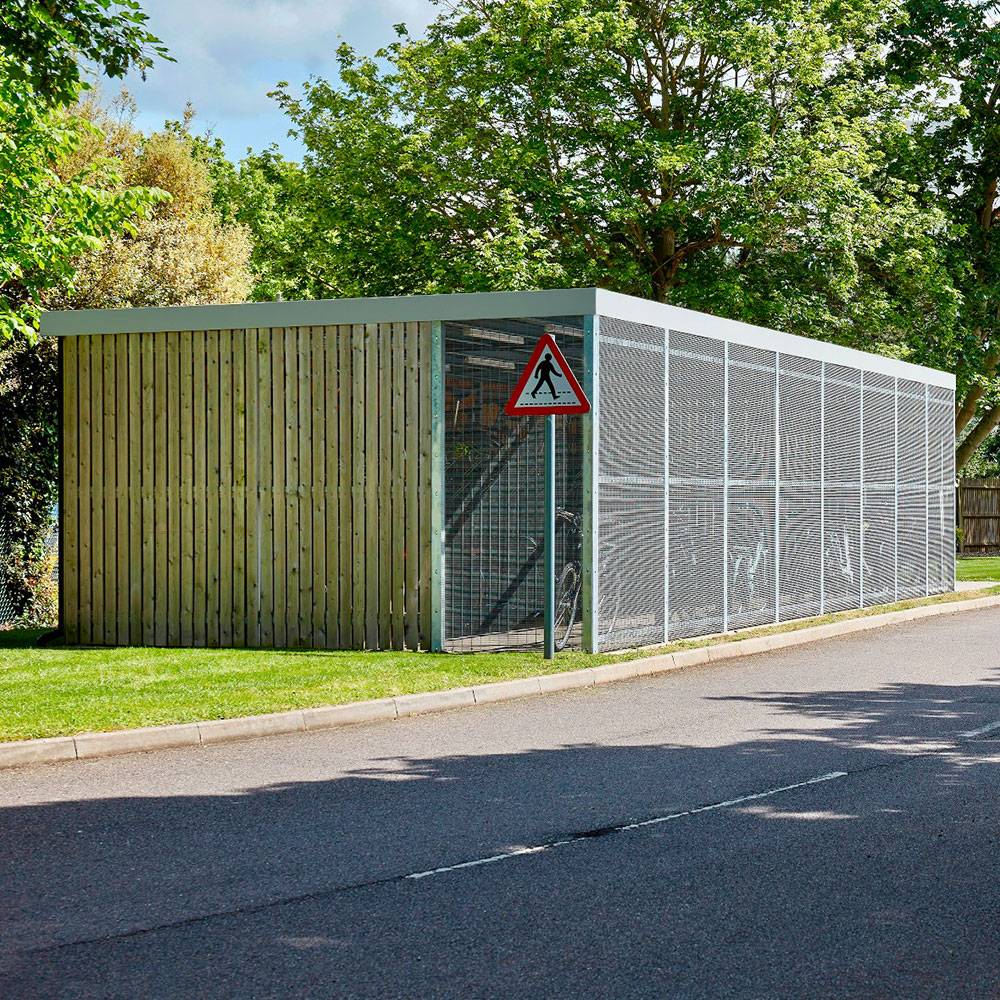

Timber and mesh clad cycle shelter.

Jump to:
+44 (0)800 2461723 Website

Application

Suitable for housing developments, offices, schools and universities.

Description

The Eastbrook Cycle Shelter is fabricated from an 80 mm box section frame with a combination of 358 high-security mesh and FSC softwood or hardwood panelling and the option for internal mesh where increased security is required. Internally IP65 rated LED lighting with PIR activation and a swipe card access control unit provides security to the single swing gate. Offered with the Two Tier Cycle Rack as standard, this shelter is also suitable for Semi Vertical Bike Racks or Toastracks to provide lower head heights.


Features and benefits:

  • Selection of hard and softwood timbers.
  • Different mesh options.
  • 80 mm box section frame.
  • Fully bespoke options.
  • Variety of lock options.
  • Sedum roofing available.
  • PIR lighting available.
  • Fire retardant version available.
  • Ten-year manufacturing defects warranty.
  • Made in Britain.
  • Full installation service across UK and Ireland.

General information

Color

Brown

Black

Blue

Bronze

Copper

Show more

Finish

Galvanized

Powder-coated

Material

Steel

Timber

Shape

Rectangle

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Guidance for specification option:

Manufacturing defects warranty.

Uniclass

Pr_20_65_78_77 Semi-closed sheltersPrimary
Pr_20_65_78_15 Composite panelled shelters
Ss_20_10_70_84 Storage shelter systems

CAWS

B91/340 Cycle shelter

B91/385 Shelter

B91/330 Canopy

Specification data - Semi-closed shelters

Description

-

Manufacturer guidance

Use this item to provide the intended scope for the use of this clause, for overarching or higher-level information relating to this clause content. Omit if not required.

Manufacturer

The Bike Storage Company.

Shelter description

Rectangular, flat roofed.

Dimensions

-

Plan size

-

Manufacturer guidance

Bespoke. Consult manufacturer and insert requirements or refer to a drawing.

Height

-

Manufacturer guidance

Bespoke. Consult manufacturer and insert requirements or refer to a drawing.

Frame

-

Material

Structural steel.

Finish

Galvanized.

Powder-coated.

Colour

-

Manufacturer guidance

All products can be powder-coated in any colour. Insert requirements.

Cladding

-

Material

Sapele.

Larch.

Thermopine.

Black Thermopine.

Stained Thermopine, RAL.

Guidance for specification option:

Stained to any RAL colour. Insert requirements.

Fire Treated, Euro Class B/C.

Treated Softwood.

Western Red Cedar.

Canadian Red Cedar.

Composite Cladding.

Manufacturer guidance

Refer to manufacturer's literature for details.

Roof covering

Manufacturer's standard.

Sedum.

Accessories

Not required.

PIR lighting.

80 mm SHS uprights.

Guidance for specification option:

A non-structural upgrade for a more heavy-duty aesthetic.

Roof fascia.

Guidance for specification option:

Finishes are matched to shelter frame or available in contrasting RAL.

Twin wire mesh inlay (internal).

Drip fascia.

Cycle motif.

Mesh

358 mesh.

Guidance for specification option:

As standard.

10 gauge mesh.

Twin wire mesh.

Locking

Not required.

Swing gate digi lock.

Sliding gate code lock.

Access control lock.

Padlock latch.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Timber

Recyclability

Product can be recycled at any licensed recycling facility.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Expected Life

20 year

Third party certifications

Constructionline

Constructionline

Bronze Member

 Acclaim Accreditation

Acclaim Accreditation

Certificate of Health & Safety Accreditation

 Acclaim Accreditation

Acclaim Accreditation

Certificate of Health & Safety Accreditation

Constructionline Gold

Constructionline Gold

Gold Memeber

Constructionline

Constructionline

Silver Member

Certificate of Compliance

Certificate of Compliance

Social Value

Literature

Shelter Options Guide

Shelter Options Guide

Timber Information Sheet

Timber Information Sheet
