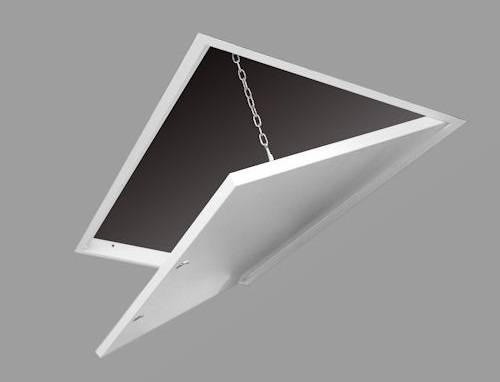

Easi-Klix Access Panels
Access panels that are suitable for complex ceiling and wall applications.
Application
Suitable for interior applications in which access to functions that are hidden is necessary (such as pipes or wires).
Description
Features and Benefits:
- Their access panels meet customer specified needs to provide an effective and unobtrusive solution.
- They are designed to allow easy access to voids and cavities where services, controls, piping, electronics etc. need to be accessible for maintenance or emergency work.
- Standard panel range are fire rated to EN 1634-1: 2008 with 60 minutes' integrity performance.
- All standard Komfort panels are coated in DuPont Alesta® AM Powder Coatings. This effectively inhibits the growth of bacteria such as Staphylococcus Aureus, (MRSA strain) and E-coli; independent tests show a reduction of 99.9% in these micro-organisms after contact with Alesta® AM coated surfaces.
- This highly protective coating means the Komfort range of standard panels are suitable for environments such as hospitals and healthcare establishments, education facilities, and food service and packaging areas.
General information
Size | 300 x 300 mm 450 x 450 mm 550 x 550 mm 600 x 600 mm 900 x 600 mm Hinged on long side. |
Uniclass 2015 | |
CAWS | K10/115 Metal stud partition system K10/125 Metal stud partition system K10/15 Lining on timber K10/215 Suspended ceiling system K10/220 Proprietary suspended ceiling system K10/245 Ceiling lining on timber K10/25 Lining on timber framed ceilings K10/30 Metal stud K10/50 Suspended ceiling on metal framing K30/115 Relocatable partition/ Ceiling system K40/10 Suspended ceilings K40/105 Suspended ceiling system K40/115 Unit/ modular suspended ceiling system K40/135 Board-suspended ceiling system K40/280 Access units L20/630 Hatches |
Specification data - Access panels Enhanced data
Fire performance | - |
Reaction to fire classification | EN 1634-1: 2008 with 60 minutes' integrity performance. |
SizeOther sizes are available upon request; contact manufacturer for details. | - |
Latch or lock type | Not required.5 mm double barb insert lock.Square insert lock.Suited key lock.Suited tamper proof lock.Triangle insert lock.Unsuited key lock.Unsuited tamper proof lock. |
Panel Typehe following access panel ranges are available (consult manufacturer's literature for exact product code required): | EK1PC: Metal door access panels; picture frame for wall or ceiling. EK1BD: Metal door access panels; beaded frame for wall or ceiling. EK1PCF: Metal door access panels; picture frame for wall or ceiling, 60 minute fire rated. EK1BDF: Metal door access panels; beaded frame for wall or ceiling, 60 minute fire rated. EK2: Entry level access panels for wall or ceiling. |
