E497 StrengThin 100 - Rigid Coupling
Verified by manufacturer 4 months ago
WRAS
Certificate type
ISO 9001 Quality Management
Certificate type
Rigid coupling for thin wall stainless steel pipe, DN50(2")-DN300(12"). Coupling is WRAS approved for Potable water applications
Application
- Provides a rigid pipe joint on ISO thin wall stainless steel pipe [304/304L & 316/316L] pipe per BS EN 10217-7 in sizes DN50 through DN300.
- Used on LTHW, CHW, CON applications.
- WRAS approved coupling, can be used on potable water applications.
Description
Rigid coupling for thin wall stainless steel pipe, DN50(2")-DN300(12"). Coupling is WRAS approved for Potable water applications
Features and benefits:
- Designed for ISO thin wall stainless steel pipe [304/304L & 316/316L] pipe per BS EN 10217-7.
- Sizes from 2–12″ | DN50–DN300.
- Accommodates pressures ranging from full vacuum up to 1600 kPa/16 bar.
- Working pressure dependent on wall thickness and size of pipe.
- Operating temperature range dependent on gasket selection.
- No welding or hot works required to joint stainless steel pipe.
General information
Color | Grey Orange Blue |
Finish | Galvanized Coated Zinc plated |
Material | Iron Guidance for specification option: Ductile iron. EPDM |
Shape | Circle |
Width | 130 mm 159 mm 168 mm 207 mm 235 mm |
Height | 102 mm 118 mm 133 mm 165 mm 197 mm |
Warranty description | One year |
Uniclass | |
CAWS | S90/530 Stainless steel pipework |
Specification data - Mechanical couplings
Finish | Hot dipped galvanized conforming to ASTM A123. Guidance for specification option: Standard. Orange coating. Guidance for specification option: Optional. Blue zinc coating. Guidance for specification option: Atmospheric corrosivity category C4 in accordance with ISO 12944.1 This coating is only available on imperial and metric sized couplings; it is not available on JIS sized couplings. |
Housing | Ductile iron conforming to ASTM A536, Grade 65-45-12; EN 1563, Grade EN-GJS-450-10; and ISO 1083, Grade JS/450-10/S. |
Gasket | Grade "EF" EPDM. Grade "EHP" EPDM. Guidance for specification option: This gasket is only available for sizes 2", 76.1 mm, 3", 4", 139.7 mm, 165.1 mm and 216.3 mm. Grade "T" Nitrile. Grade "EW" EPDM. Manufacturer guidanceConsult manufacturer's literature for service compatibility. |
Bolts | Carbon steel oval neck track bolts and carbon steel hex nuts, zinc electroplated. Guidance for specification option: Standard. Stainless steel oval neck track bolts and stainless steel heavy hex nuts. Guidance for specification option: Optional. |
Washers | Not required. Hardened steel washers meeting ISO 7089/DIN 125.4. Guidance for specification option: Only available on 6–12"/DN150–DN300 galvanized or orange enamel coated couplings and 2–12"/DN50–DN300 blue zinc coated couplings. |
NominalSize | DN50. DN65. DN80. DN100. DN125. |
Accessories | None. RG3600 StrengThin 100 Tool. |
Standard | To BS EN 10311. |
Sustainability data
Material | Iron Guidance for specification option: Ductile iron. EPDM |
Recyclability | recyclable |
Third party certifications
WRAS

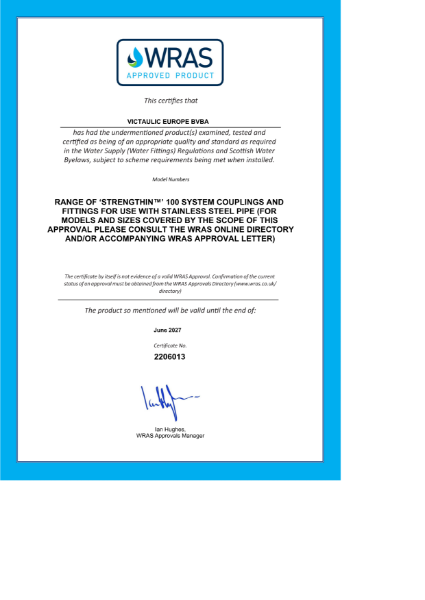

StrengThin 100 WRAS Approval
ISO 9001 Quality Management
ISO Certificate
Literature

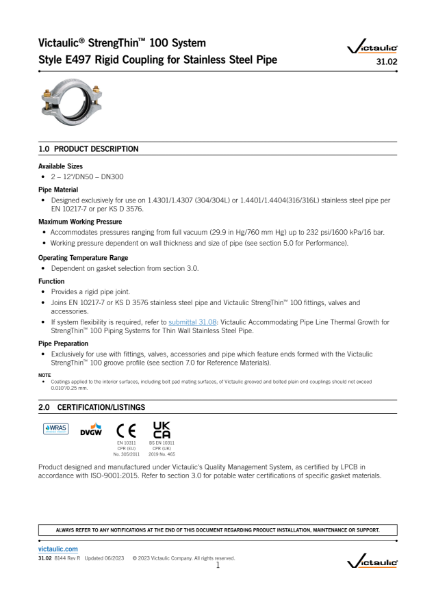

Victaulic® StrengThin™ 100 System
