Description

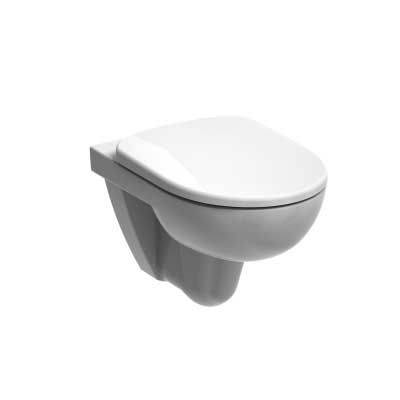

Wall-hung WC suite with concealed cistern and horizontal outlet.

Outlet connector:

Compatible with

  • WF1240WH, P trap outlet connector.
  • WF1241WH, S or turned P trap connector.

General information
Material

Vitreous china

Uniclass 2015
WC suites (Pr_40_20_93_97)Primary
Specification data - WC suites
Product Reference

E100 Round Wall Hung WC

Pan

E11708WH

Horizontal outlet.

Cistern

CX9564XX

6/ 4 L dual flush, lever action

Operation

Not applicable

For lever action cistern only.

CF9002CP

Air button, dual flush, small button, chrome plated. For 3-40 mm panel depth.

CF9022CP

Air button, dual flush, plastic large plate 150 x 230 mm chrome plated. Minimum 75 mm panel depth.

CF9032CP

Air button, dual flush, mini plate 80 x 124 mm chrome plated. Minimum 65 mm panel depth.

CF9301CP

Flushsense infrared sensor, 100 mm diameter, chrome plated.

Seat and cover

E17810WH

Plastic hinges.

E17815WH

Metal hinges, bottom fix.

E17861WH

Metal hinges, top fix.

E17851WH

Soft close mechanism.

E17857WH

Quick release soft closing mechanism.

Fixings

SR8138XX

Support bracket and fixing kit.

Standard product features

Material:

Vitreous china.

Colour:

White.

Fixings:

Support brackets screwed to floor for non-load bearing walls up to 100 mm thick.
