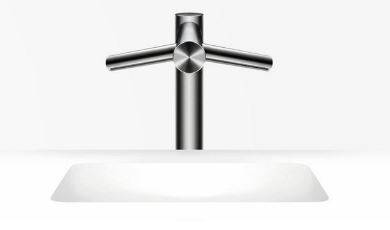

Dyson Airblade™ Wash+Dry Tap Hand Dryer - Long (WD05)

Verified by manufacturer 26 days ago

Dyson Third party certifications:
  • Quiet Mark Certification

    Quiet Mark Certification

    Certificate type

Touch-free tap with Airblade™ technology.

Jump to:
BOS
08003457788 Website

Application

Compatible with most sink types (ensure plugs are not installed in the sinks). Sinks with highly polished surfaces (reflective chrome) should be avoided. Porcelain or brushed metal are ideal.

Description

Surface mounted, long-neck, touch-free tap with Airblade™ technology, and no need to move to a separate hand drying area.


Features and benefits:

  • Touch free operation.
  • 14 second drying time.
  • Uses a HEPA filter to capture 99.95% of particles, including bacteria and viruses, from the washroom air.
  • Costs less to run than other traditional hand driers or using paper towels.
  • Low impact on the environment (produces up to 82% less CO2 emissions that single-use paper towels) and also saves water.
  • No water on the floor.
  • Quick to clean.
  • HACCP & Carbon Trust certified.

General information

Color

Silver

Finish

Brushed

Material

Stainless steel

Length

286 mm

Width

303 mm

Height

309 mm

Warranty description

Five year

Uniclass

Pr_40_20_87_15 Combined tap and hand dryersPrimary

CAWS

N13/30 Washbasins

N13/335 Washbasins

N13/472 Hand dryers

Product range

Hand Dryers

Specification data - Combined tap and hand dryers

Form

-

Hand dryer

High-velocity air through HEPA filter.

Operation

-

Tap

Infra-red.

Hand dryer

Infra-red.

Flow rate (maximum)

1.9 L/minute.

Electrical supply

-

Power rating

1.0 kW.

Rated operational voltage (Ue)

200–240 V.

Frequency

50–60 Hz.

Noise level at 1 m (maximum)

81 db (A).

Body

-

Material

Stainless steel.

Finish

Brushed.

Colour

Natural.

Ingress protection (minimum)

IP35.

Dimensions

309 x 286 x 303 mm.

Mounting

Surface mounted.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
ARCHICAD
-

1

Revit

Revit 2017

7

IFC
-

7

AECOsim
-

1

Third party certifications

Quiet Mark Certification

Quiet Mark Approval

Quiet Mark Certification

Quiet Mark Approval - Dyson Airblade Wash+Dry Hand Dryer (Short, Tall and Wall)
