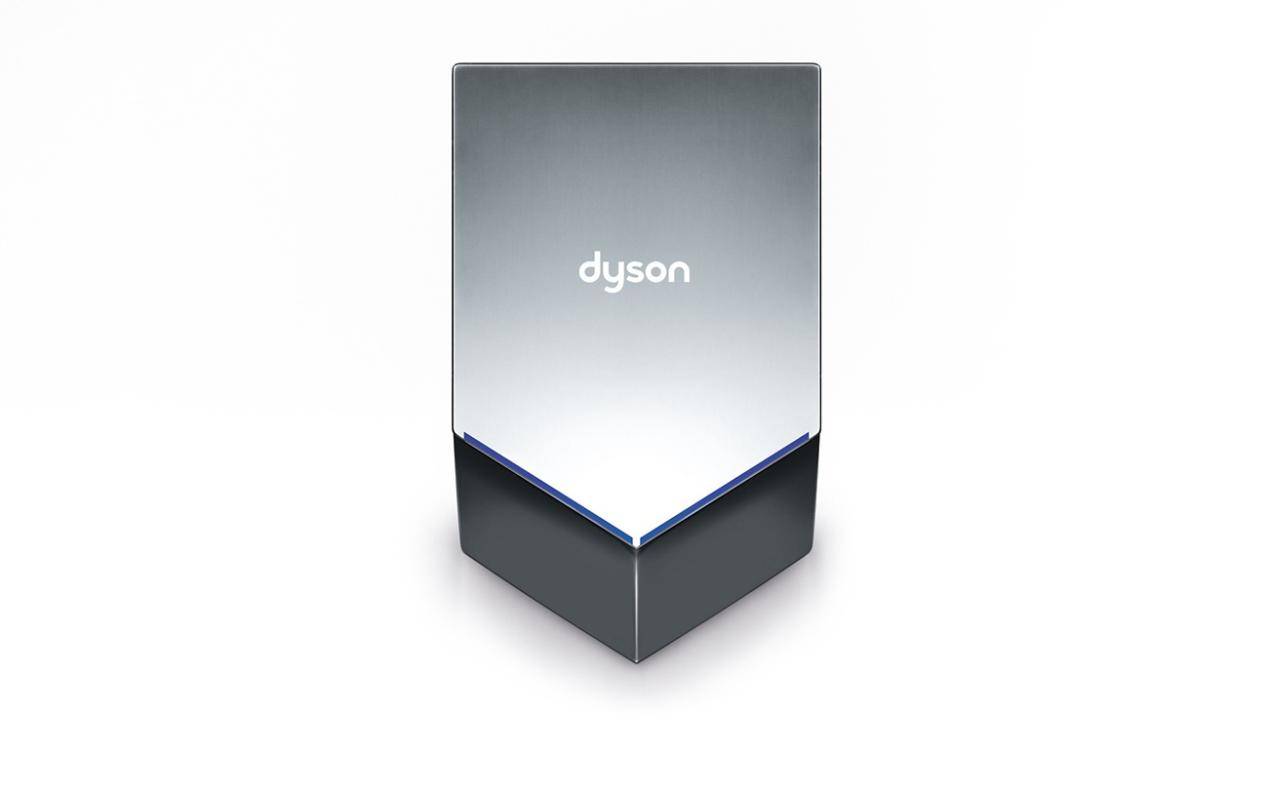

Dyson Airblade™ V Hand Dryer (HU02)
Verified by manufacturer 9 months ago
Quiet Mark Certification
Certificate type
A slim profile hand dryer that protrudes only 100 mm from the wall, due to the size of the Dyson 1000 W digital motor.
Application
Designed for compact spaces - protrudes just 100 mm from the wall.
Description
A hand dryer that protrudes only 100 mm from the wall, due to the size of the Dyson 1000 W digital motor.
Features and benefits:
- Slim profile.
- Touch-free operation.
- 12-second drying time.
- Hygienic - uses a HEPA filter to capture 99.95% of particles, including bacteria and viruses, from the washroom air.
- Costs less to run than other traditional hand dryers or using paper towels.
- Low impact on the environment (produces 72% less CO2 than some other hand driers) and saves water.
- Quick to clean.

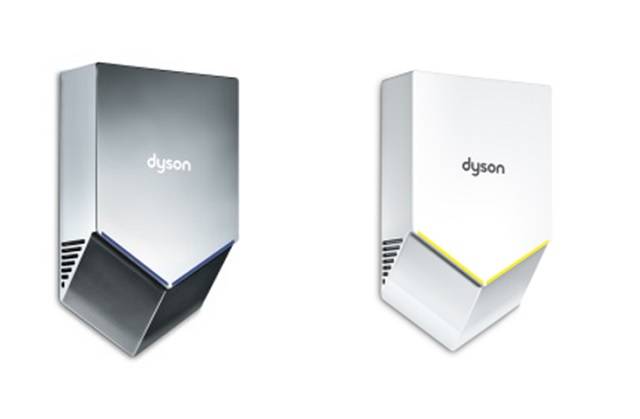

- Available in two finishes.
- Five-year guarantee.
General information
Color | White Silver |
Finish | Smooth |
Material | Polycarbonate |
Length | 100 mm |
Width | 234 mm |
Height | 394 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/472 Hand dryers |
Product range |
Specification data - Hand dryers
Form | High velocity air through HEPA filter. |
Operation | Automatic.Guidance for specification option: Touch-free proximity capacitive sensor activation. |
Timer | 12-second drying time. |
Electrical supply | |
Power rating | 1.0 kW (1000 W).Guidance for specification option: Dyson digital brushless d.c. motor V4. Standby power consumption <0.5 W. Motor speed: 83 000 rpm. |
Rated operational voltage (Ue) | 220–240 V a.c. |
Frequency | 50–60 Hz. |
Body | |
Material | Polycarbonate.Guidance for specification option: Antimicrobial coated. |
Finish | Polished. |
Colour | White.Sprayed nickel. |
Ingress protection (minimum) | IP24. |
Dimensions | 394 x 234 x 100 mm.Manufacturer guidanceHeight x length x width. |
Noise level at 1 m (maximum) | 79 dB. |
Weight | 2.9 kg. |
Sustainability data
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 6 |
 ARCHICAD | - | 1 |
 AECOsim | - | 1 |
 IFC | - | 6 |
Third party certifications
Quiet Mark Certification
Noise Abatement Society: Quiet Mark - Certified
Quiet Mark Certification
Quiet Mark Approval
Quiet Mark Certification
Quiet Mark Approval - Dyson Airblade V Hand Dryer
Literature
Dyson V Hand Dryer Case Study - Royal Institute of British Architects
Case studies
Welcome Break
Queen Mary, University of London
