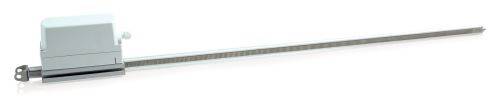

DXD Linear Actuator

Description

A range of linear actuators, suitable for façade and roof windows.

Features and benefits:

  • Can be used for window and vents for smoke exhaust; D+H Euro SHEV in accordance with EN 12101-2 and for daily ventilation.
  • With integrated BSY+ motor and synchronised electronics controlled via microprocessor.
  • High-speed function (HS) for especially fast opening windows in case of fire (SHEV).
  • Option of up to four drives in one synchronous group.
  • Groove in the drive tube for flexible installation and configuration of the swivel range.
  • Option of cable infeed above and below.
  • Programmable drive functions and different drive parameters.
  • Running speed in closed direction decreases to 5 mm/s (passive closing edge protection).
  • Time-controlled reversing when an obstacle is detected in the closed direction (active closing edge protection).

General information

Uniclass 2015

Pr_75_50_02_46 Linear actuatorsPrimary

CAWS

L10/10 Wood windows

L10/15 Wood windows

L10/20 Steel windows

L10/210 Wood windows

L10/25 Aluminium windows

L10/250 Wood windows

L10/260 Wood windows

L10/30 PVC-U windows

L10/31 PVC-U windows

L10/310 Steel windows

L10/315 Steel windows

L10/33 Proprietary windows

L10/330 Aluminium windows

L10/335 Aluminium windows

L10/350 PVC-U windows

L10/360 PVC-U windows

L10/380 PVC-U windows

L10/390 Proprietary windows

L10/400 Composite windows

L10/410 Composite windows

L10/45 Rooflights

L10/460 Rooflights

L10/480 Roof windows

L10/490 Roof ventilators

L10/50 Roof windows

L10/650 Metal louvres

Specification data - Linear actuators

Product Reference

DXD Linear Actuator

Type

See 'Options' below and insert reference.

Accessories

None

Brackets

Various options available consult literature and insert product reference(s).

Cables

Standard product features

Technical characteristics:

  • Supply: 24 V d.c (5 A). Except for '- K' drives which requires 230 V (50 Hz).
  • Duty cycle: 30 %.
  • Force of pressure: 3000 N.
  • Tensile force: 2000 N.
  • Nominal locking force: 2200 N.
  • Service life: > 10 000 double strokes.
  • Open running speed: 7.1 mm/s.
  • Open running speed - HS: 17 mm/s.
  • Closed running speed: 7.1 mm/s.
  • Ingress protection rating: IP 64.
  • Fire resistance: B300 (30 min/ 300°C).
  • Housing: Aluminium.
  • Surface: Anodized white aluminium (~RAL 9006).
  • Connection: 2.5 m cable.
  • Standards: EN 12101-2 CE certified.
  • Stroke: 1000 mm.
  • Weight: 6.70 kg.

Product Options

Type:

  • DXD 300-BSY+ drive (24 V d.c).
  • DXD 300-K-BSY+ drive (direct control via 230 V).
  • DXD 300/600-BSY+.
  • DXD 300/800-BSY+.
  • DXD 300/1000-BSY+.
  • DXD 300/1200-BSY+.
  • DXD 300-BSY+ - Bespoke, variable equipment possible.
  • DXD 300/600-K-BSY+.
  • DXD 300/800-K-BSY+.
  • DXD 300/1000-K-BSY+.
  • DXD 300/1200-K-BSY+.
  • DXD 300-K-BSY+ - Bespoke, variable equipment possible.
