DuraPost® Z-Boards
Verified by manufacturer 4 months ago
Z shaped fencing board.
Application

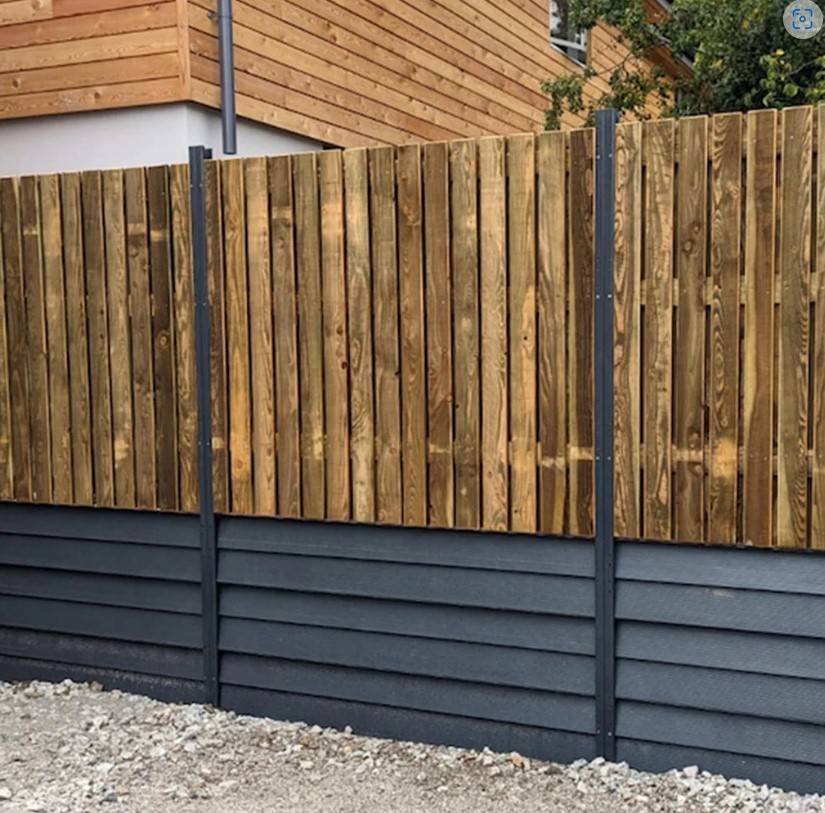

This system is designed specifically for commercial applications when there are drops in elevation between properties or boundaries, up to 600 mm.
- Boundary with elevation change.
- Retention perpendicular to ‘Classic’ DuraPost fence system.
- Retention requiring stone/ gravel backfill.
- Gradually reducing retention elevation.
- Stepped garden retention.
- This system is not a retaining wall.
Description

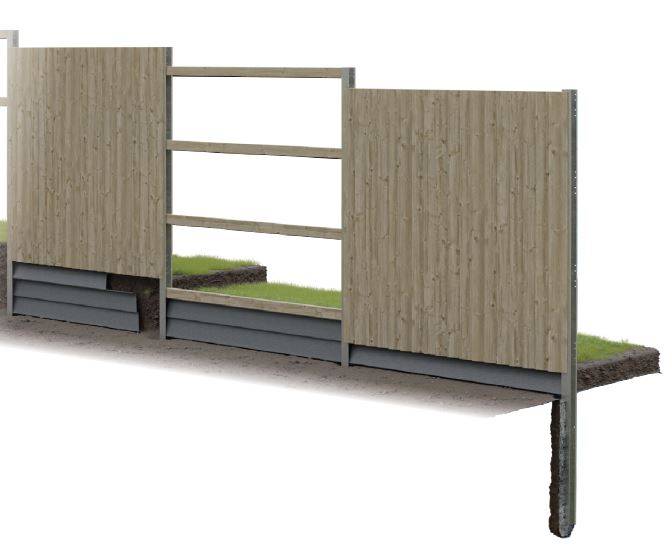

1.8 m DuraPost® Z-Board Retention Solution, a fencing system designed to work with retention scenarios from 150–600 mm height, for example; between two house boundaries with elevation differences on a construction site. Retention Weight (SLS) 237.4 kg/board.
The base system consists of ‘Commercial’ DuraPosts® (specified separately) and combinations of 150 and 300 mm Z-Boards. There are several optional extras also available, if required.
The unique ‘Z’ profile shape allows Z-Boards to be stacked
tightly and efficiently on pallets or in storage.
The boards are manufactured from glass fibre reinforced plastic (GFRP), a high quality composite using two main raw materials: unsaturated polyester resin and glass fibre. Using GFRP has many benefits:
- Lightweight
- High mechanical strength
- High impact resistance
- Rustproof Structure
- High corrosion resistance
- High resistance to chemicals and antibacterial
- Stain Resistant
- High UV and thermal resistance.
The GFRP material used to construct Z-Boards has been UV resistance tested to a duration of 500 hours and showed no visible or structural signs of weathering or weakening.
General information
Color | Grey Brown Green |
Finish | Grained |
Material | Glass Fibre Plastic |
Shape | Rectangle |
Length | 1800 mm 2400 mm |
Width | 50 mm |
Height | 150 mm 300 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | Q40/380 Plastics Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Specification data - Plastics panels
Material | PVC-U. |
Dimensions | |
Height | 150 mm.300 mm. |
Width | 1800 mm. |
Colour | Anthracite grey.Olive grey.Sepia brown. |
Accessories | Z-Board Fixing Spacers, 300 x 50 mm.Z-Board Fixing Spacers, 150 x 50 mm.Damp Proof Membrane, 0.9 x 1.8 m x 250- 300 μm.Hex Head Slash Point Screwswith EPDM Washer and BlackCap, 6.3 x 60 mm.Manufacturer guidanceOptional. |
Impact strength | 316.7 kJ/m². |
TensileStrength | 545.6 MPa. |
CompressiveStrength | 540.2 MPa. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Glass Fibre Plastic |
Literature
DURAPOST COMMERCIAL 1.8M Z-BOARD RETENTION SOLUTION
