Application

Designed to compliment the DuraPost® fencing system or with any standard fencing.

Description

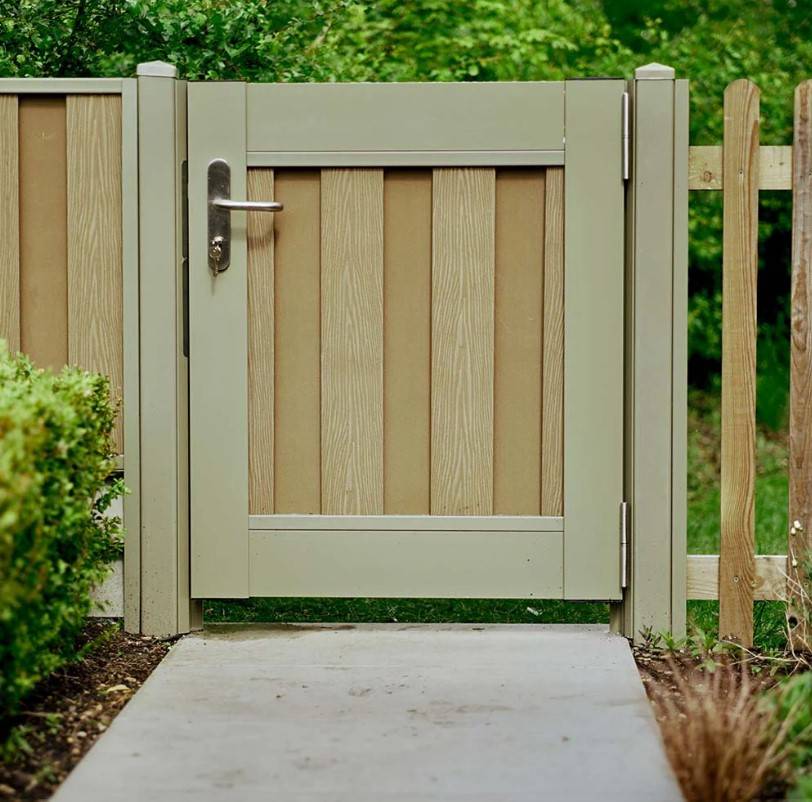

An aesthetically pleasing aluminium gate which is designed to work well with both the DuraPost® fencing system and with any standard fencing. Constructed from EN/AW - 660 grade aluminium this gate is strong and secure and comes in three powder coated finishes: anthracite grey, sepia brown and olive grey.


Opening frame size: Maximum frame opening is 1.234 m. If reducing the gate width, the opening needs to be gate width plus 46 mm. Minimum recommended width: 0.5 m.


The aluminium gate composite infill panels (49.5 x 150 mm) have the same profile as the DuraPost® composite gravel board and are constructed from the same materials; extruded from PVC-U, manufactured and fully UV stabilized to BS EN ISO 21306-1. The material is extruded with a full through colour so if the board is damaged or scratched, the area is not clearly visible and will not cause any detrimental

effects to the board.


Over the lifetime of the product a gradual minor loss of shine may be noticeable, but this will have not detrimental effect to the material.

Available in three matching colours to complement the DuraPost® product range: Anthracite Grey RAL 7016, Olive Grey RAL 7002 and Sepia Brown RAL 8014.


Gate frame and slam receivers:

The gate frame is constructed from EN/AW - 660 grade aluminium, and powder coated. All powder coatings are salt spray tested to 1000 hours to BS 3900F4, impact resistance to BS 3900E3, scratch resistance to BS 3900E2 and humidity minimum 1000 hours to BS3900F2.


Hinges:

The gate hinges are constructed from mm thick Stainless Steel, 1.4301 (304) grade. The anti-theft design orients the hinges in such a way that the gate cannot be removed when closed.


Lock and latch:

The gate is supplied with a DIN standard lock, to BS/EN 12209, with a 72 mm centre, and 60 mm back set.

A cylinder is also supplied, made in the UK, to BS/EN 1303:. The catch direction can be easily switched simply by pulling out the catch and twisting.


Corner brackets:

The corner brackets are an integral part of the DuraPost®

Aluminium Gate, providing a rigid structure and a solid steel fixing point for the corners.


The steel packer and the black plastic packer work together

with the steel bracket to provide accurate fixing points


Timber infill panels:

When using timber infill panels (supplied by others), it is recommended to not exceed a maximum weight of 16 kg. For example, ten 150 x 19 x 1000 mm oak planks, weighing 1.6 kg each.

General information

Color

Grey

Brown

Black

Green

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Width

1188 mm

Height

1770 mm

Warranty description

25 year

Uniclass

Pr_30_59_34_02 Aluminium gatesPrimary

CAWS

Q40/570 Gates

Q40/45 Gates

Specification data - Aluminium gates

Standard

To BS EN ISO 21306-1.

Dimensions

-

Span (opening)

-

Manufacturer guidance

The maximum cleared opening (for an unaltered gate) is 1.234 m, and the minimum width recommended is 0.5 m. Consult manufacturer for details and insert requirements.

Height

1770 mm.

Posts

Aluminium.

Gate leaves

Aluminium.

Hardware

-

Hinges

Required.

Securing

Supplied with lock and handle.

Finish as delivered

-

Applied finish

Powder coated.

Colour:

Anthracite Grey (RAL 7016).

Black (RAL 9005).

Olive Grey (RAL 7002).

Sepia Brown (RAL 8014).

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium
