Durafit 500
Verified by manufacturer 4 months ago
Pure Green Supply Certificate
Certificate type
EPD
Certificate type
Reinforced crumb rubber underlay.
Application
Suitable for the double-stick and stretch-fit installation of carpets and natural floor coverings. Also suitable for underfloor heating, however it is not recommended that the underlay is used with an electric mat or dry underfloor heating system.
Description
Double-stick rubber crumb carpet underlay.
Features and benefits:
- Heavy-wear.
- Increases carpet life.
- Enhanced resilience compared to lighter weight alternatives.
- Green stripe backing ensures correct installation.
- 5.25 mm thickness.
- 100% recyclable at end of life.
- Green Label Plus certified.
- End Use Classification (BS 5808:1991/ BS EN 14499:2015): HC/U, Heavy Contract Use.
- Produced in a factory accredited to ISO 9001, 12001 and 45001.
General information
Color | Black |
Material | Rubber Guidance for specification option: Reinforced crumb rubber. |
Shape | Other |
Length | 11000 mm |
Width | 1370 mm |
Height | 5.25 mm |
Warranty description | Manufacturer guidanceGuaranteed for the serviceable lifetime of the carpet when used in accordance with the End Use Classification. |
Uniclass | |
CAWS | M50/170 Carpeting M50/25 Carpeting |
Specification data - Rubber crumb underlays
Standards | To BS 5808 and BS EN 14499. |
Use class | HC/U. |
Thickness (minimum) | 5.25 mm. |
Recycled content | Pre-consumer, 65% (minimum); post-consumer, 0%; virgin, 35%. |
Nominal weight | To BS EN 14499:2015, 2100 g/m². Manufacturer guidanceNominal square weight. |
Nominal density | 400 kg/m³. |
Roll weight | 31.6 kg. Manufacturer guidanceNominal roll weight. |
Area | 15.07 m². Manufacturer guidanceRoll area. |
Compression component | To BS 4908, BS 4052 and ISO 2094: Work of compression (minimum 50 J/m²): 75 J/m²; Retention of work of compression (minimum 40%): 88.5%; Compression after dynamic loading: 2.0 mm. |
Strength | To EN ISO 13394 BS 2576, 700 N (length), 300 N (width). Manufacturer guidanceBreaking strength. |
Extension | To EN ISO 13394 BS 2576, 1.0% (length), 0.5% (width). Manufacturer guidanceExtension under force, max. 15% @ 30 N. |
Resistance | To EN 14499 and BS 5808, pass. Manufacturer guidanceResistance to cracking (not greater than 50 mm). |
Thickness | To BS 4052 and ISO 2094, 6.0% (after dynamic loading); to ISO 3415/ 3416 and BS 4939, 6.5% (after static loading). Manufacturer guidanceLoss in thickness. |
Flammability | To BS 4790 & BS 5287, low radius of ignition. Manufacturer guidanceHot metal nut test (tested in conjunction with Axminster 80:20 carpet). |
Reaction to fire classification | Tested to ENISO9239-1 and 11925-2, rated to EN13501-1, Bfl-s1. Manufacturer guidance(Tested in conjunction with Axminster 80:20 carpet). |
Odour | No objectionable odour. |
VOC | Complies A+. Manufacturer guidanceFrench VOC emission regulations. |
Thermal resistance | To BS 4745, 0.88 togs. Guidance for specification option: To BS 4745, R Value: 0.113 (SI Unit); 0.642 (USA Unit). |
Impact sound reduction | To BS EN ISO 10140-3:2010, 26 dB. |
Insulation | To ASTM E989-06, 56. Manufacturer guidanceImpact insulation class (IIC). |
Colour | Black. |
Backing | Woven polypropylene with green stripes. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 34.20 kg CO₂ eq/unit |
Recyclability | At the end of the underlays useful life, it can be 100% recycled. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 65 % Guidance for specification option: Contains not less than 65% post-consumer recycled material. |
EPD
Third party certifications
Pure Green Supply Certificate
Green Label Plus, indoor air quality testing program
EPD
Renu EPD
EPD
Fire-compliant underlay with certificate
Literature
Durafit 500 Specification

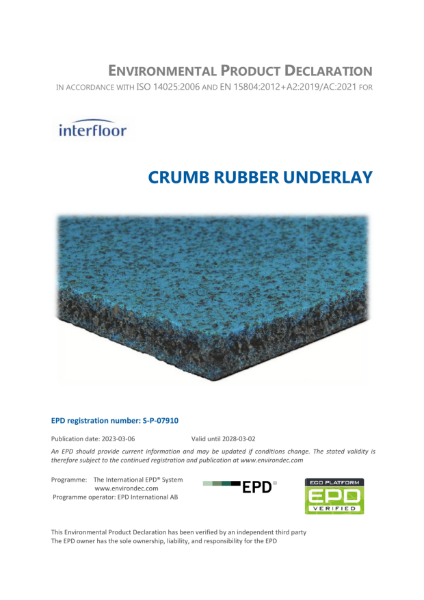

Crumb Rubber
Case studies
Changi Airport, Singapore (144,000m2 Duralay Durafit 500.)
Marina Bay Sands, Singapore (60,000m2 Durafit 500, 34,000m2, New Supreme, 57,000m2 Softwalk and 32,000m2 FR7).
