Dura Deck® Aluminium Free-Drain 18mm - Fire rated aluminium decking

Verified by manufacturer 29 days ago

Dura Composites Ltd Product certifications:
  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

  • Member of UK Slip Resistance Group (UKSRG)

    Member of UK Slip Resistance Group (UKSRG)

    Certificate type

Easy to install, A2 fire-rated aluminium decking systems for all applications. Each board has a double skin with an anti-slip surface and uniform underside to provide an attractive in-built soffit.

Jump to:
BOS
+44 (0)1255 423601 Website

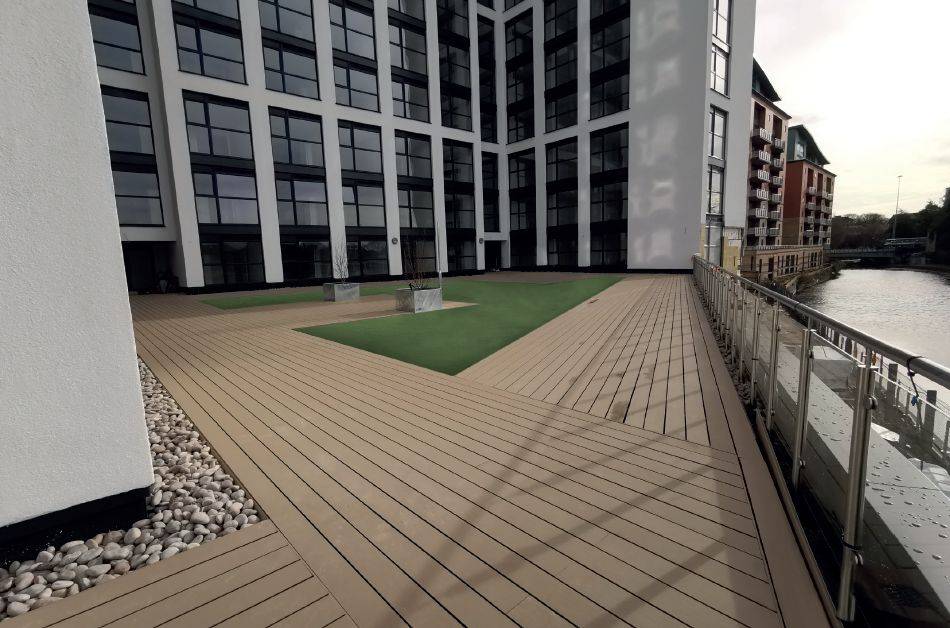

Application

  • Balconies.
  • Rooftop Terraces.
  • Walkways.
  • Commercial Flooring.
  • Hotels.
  • Pub & Restaurant Terraces.
  • Park Homes & Holiday Lodges.
  • Schools & Universities.
  • Student Accomodation.
  • Hospitals.
  • Public Buildings.
  • Pedestrian Bridges.

Description

The Dura Deck® Aluminium Free Drain solution allows water to drain through the gaps between the planks onto the area below. It is ideal for replacing degraded or non-compliant timber on balconies less than 6m2 that do not require water management (Patent No. GB 2584725).

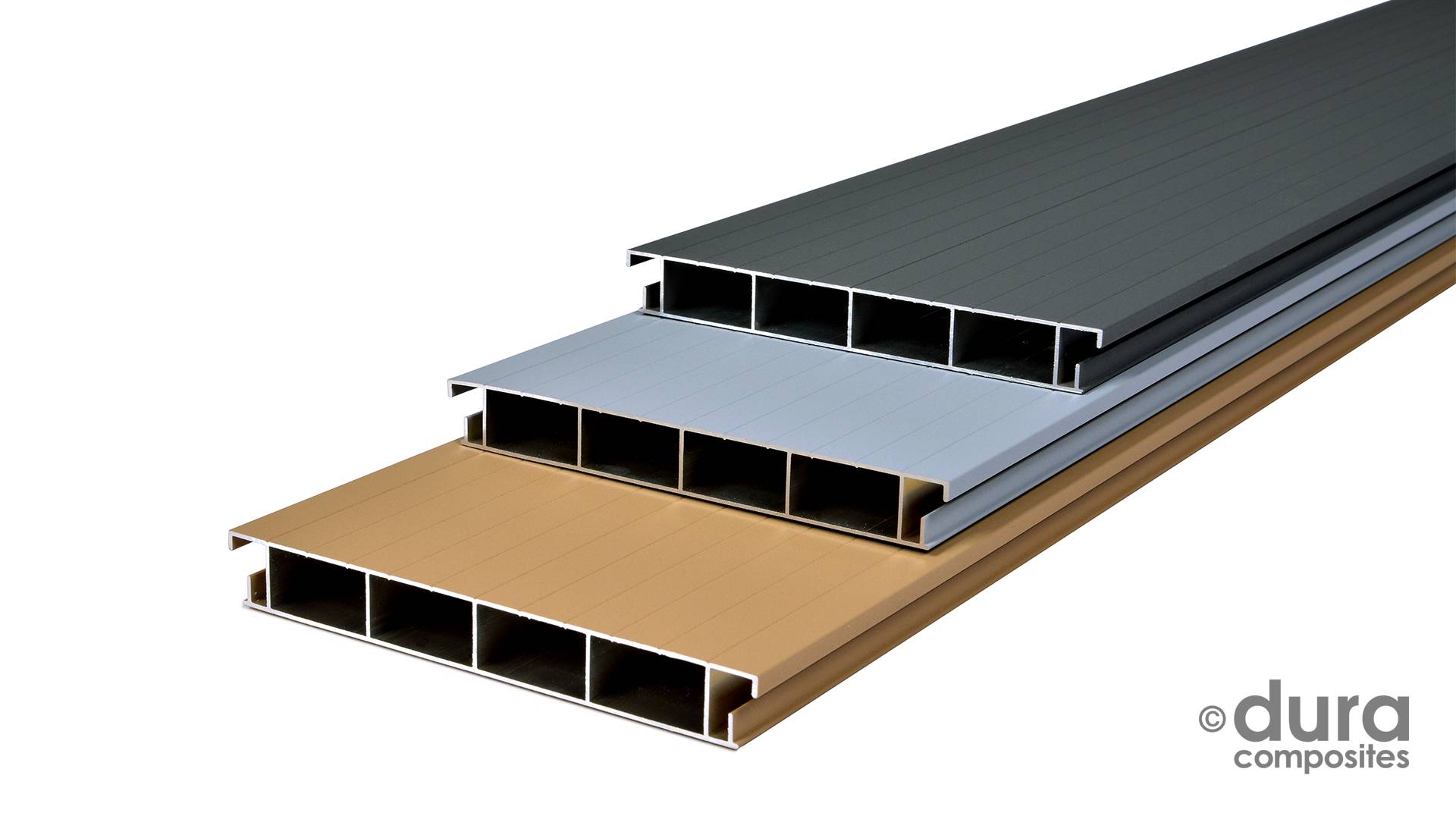

The boards feature a unique design which is suited for use with ‘slide-on’ casette balconies, minimising the need for on-site finishing. The V-Groove surface is cool in hot weather and has low slip potential in all directions. Available in 3 beautiful matt-finish colours, Anthracite, Cedar and Mist, each aluminium board has a double skin with an extensively tested anti-slip surface and uniform underside to provide an attractive in-built soffit detail.


The innovative Dura Deck Aluminium Free-Drain 18mm integrates seamlessly with our aluminium joist and pedestal system to meet even the lowest of build-up heights, and our proprietary fixing clip can be used to create a free draining balcony installation.


Our 30-year warranty covers material or manufacturing defects for your peace of mind, whilst the product boasts a minimum life expectancy of 60-years.


  • Patent Granted - No. GB 2584725
  • A2 Fire Rated - Ideal for any application that requires an A2 Fire Rating (A2fl-s1) in accordance with BS EN13501.
  • Best-in-Class Slip Resistance - Engineered with a unique paint formula for unrivalled low slip potential, achieving 63 in the dry and 54 in the wet taking the 4S Slider Slip-Resistance Test.
  • Lightweight - Profile spans 850mm centre to centre capability.
  • 30 Year Warranty - A 60 year life expectancy.
  • Cool Touch Surface - Warmth is dissipated evenly across the board.
  • Full Cell Construction - With built-in soffit.
  • Sustainable - Fully recyclable at end of life.


Related Products

Dura Deck® Aluminium Positive-Drain 18mm

Dura Deck® Aluminium Positive-Drain 27mm

Dura Aluminium Bearers

Dura Aluminium Pedestals

General information

Color

Grey

Brown

Other

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Length

3660 mm

Width

150 mm

Height

18 mm

Warranty description

30 year

Guidance for specification option:

Subject to a correct and proper maintenance regime.

Uniclass

Pr_25_71_51_04 Aluminium profiled sheet deckingPrimary

CAWS

Q55/380 Deck boards

Product range

Dura Deck

Specification data - Aluminium profiled sheet decking

Grade

6063 T6.

Guidance for specification option:

Meets specifications and guidelines for aluminium structures as recommended by AA ADM 1 and required by International Building Code (IBC).

Profile

-

Depth (overall)

18 mm.

Top surface

Powder coated.

Board colour

Mist (RAL 7001).

Cedar (RAL 1019).

Anthracite (7043).

Fire rating (to BS EN 13501)

A2fl-s1.

Board length

3660 mm.

Width

150 mm.

Fixing

To suit substructure.

Slip resistance

Low (dry/ wet).

Guidance for specification option:

Consult manufacturer for details.

Accessories

None.

Standard main clip.

Guidance for specification option:

Length x width x thickness: 3660 x 27* x 9 mm.

*Visible width: 15 mm.


Also available in 50 mm lengths.

Cut-down clip.

Guidance for specification option:

Length x width x thickness: 3660 x 7 x 18 mm.

Start/ stop clip.

Guidance for specification option:

Length x width x thickness: 3660 x 6* x 9 mm.

*Visible width: 7 mm.

End closure clip.

Guidance for specification option:

Length x width x thickness: 3660 x 10 x 19 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Material

Aluminium

A1-A3 (production stage)

Normalised unit

Declared unit

13.2 kg CO₂ eq/unit

Self-declared

Recyclability

100%

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

2

IFC
-

1

Product certifications

BS EN 13501-1

A2-s1,d0 FIRE PERFORMANCE to BS EN 13501-1:2018 for Dura Deck Aluminium Free-Drain & Positive-Drain

BS EN 13501-1

A2fl-s1 FIRE PERFORMANCE to BS EN 13501-1:2018 for Dura Deck Aluminium Free-Drain 18mm & Positive-Drain 27mm

Member of UK Slip Resistance Group (UKSRG)

Dura Deck Aluminium Pendulum Slip Test
