Dura-Coat Cold Applied Liquid Flat Roof

Verified by manufacturer 2 months ago

Garland UK Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

The Dura-Coat waterproofing system provides a fast curing, heavy-duty elastic solution for a wide range of applications.

Jump to:
BOS
+44 (0)1174 401050 Website

Application

Suitable for the repair, renovation and waterproofing of roof systems. The product can also be used for the waterproofing of construction details. Cold roller applied. Consult manufacturer for details.

Description

A heavy duty waterproofing system based polyurethane modified methacrylates.


The Dura-Coat cold applied liquid waterproofing system provides a fast curing elastic solution for a wide range of applications.


Based on unique polyurethane modified methyl-methacrylate (MMA) resins allows for quick installation in as little as 30 minutes, even in temperatures as low as 0°C.


This highly versatile system is suitable for use on a wide variety of decks including concrete, asphalt, metal, wood and existing liquid applied systems.


System components:

  • Dura-Coat Membrane.
  • Dura-Coat Membrane Thix.
  • Dura-Coat Coloured Topcoat.
  • Dura-Systems Catalyst.
  • Dura-Systems Cleaner.
  • Dura-systems Grip Polyester Soft.


Technical characteristics:

- Liquid state:

  • Density: 1.36 g/mL.
  • Solids: 100%.
  • Consumption: 2.8 kg/m² in two layers, to obtain 2 mm thickness.
  • Pot life (at 15–20°C): +15 minutes.
  • Curing time (at 15°C, 50% relative humidity): +30 minutes.
  • Rain resistant: +20 minutes.
  • Application temperature: 0–30°C.


- Cured state:

  • E-modulus (to ISO 527): 23.7 MPa (not aged). 26.3 MPa (after 200 days, 80°C) and 33.7 MPa (after 1000 MJ/m² UV radiation).
  • Tensile strength: 10.7 MPa (not aged). 11 MPa (after 200 days, 80°C) and 8.07 MPa (after 1000 MJ/m² UV radiation).
  • Elongation: 283% (not aged). 263% (after 200 days, 80°C) and 225% (after 1000 MJ/m² UV radiation).


Features and benefits:

  • 20 year single-point guarantee.
  • Uses polyurethane-methacrylate (PUMA) technology with the high elasticity and crack bridging qualities of polyurethane (PU), and the rapidity of methyl methacrylate (MMA).
  • 100% waterproof and ultraviolet (UV) protected.
  • Fast curing: 30 minutes at 15°C.
  • High resistance at both low and high temperatures.
  • No primer needed on most roof surfaces.
  • Can be applied at very low temperatures (0°C).
  • High vapour permeability.
  • Can be applied using a rake, roller or rubber squeegee.
  • Resistant to dynamic and static indentation and water ageing.
  • CE marked (ETA-05/0238).
  • Roller applied.

General information

Color

Grey

Manufacturer guidance

Available top coat colours: RAL 7001, 7015 or clear with coloured flake/quartz to client specification

Finish

Smooth

Material

Polyurethane

Warranty description

20 year

Uniclass

Ss_30_40_30_40 Liquid-applied cold roof covering systemsPrimary

CAWS

J31/10 Warm deck roof coating

J31/110 Cold deck roof coating

J31/120 Warm deck roof coating

J31/130 Inverted roof coating

J31/5 Cold deck roof coating

Product range

Waterproofing

Specification data - Liquid-applied cold roof covering systems

Liquid-applied waterproofing

-

Type

Dura-Coat Membrane, Dura-Coat Membrane Thix and Dura-Coat Coloured Topcoat

Reinforcement

Dura-systems Grip Polyester Soft.

Colour

-

Manufacturer guidance

Insert requirement.

Sustainability data

Material

Polyurethane

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

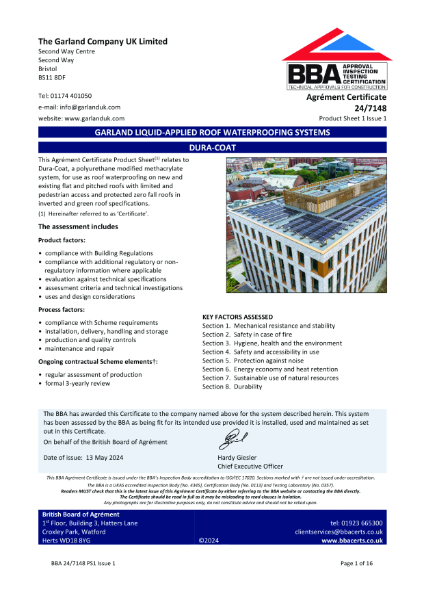

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

Dura-Coat BBA Certificate: 24/7148
