DuoXpand Frame Fixing
Verified by manufacturer 8 days ago

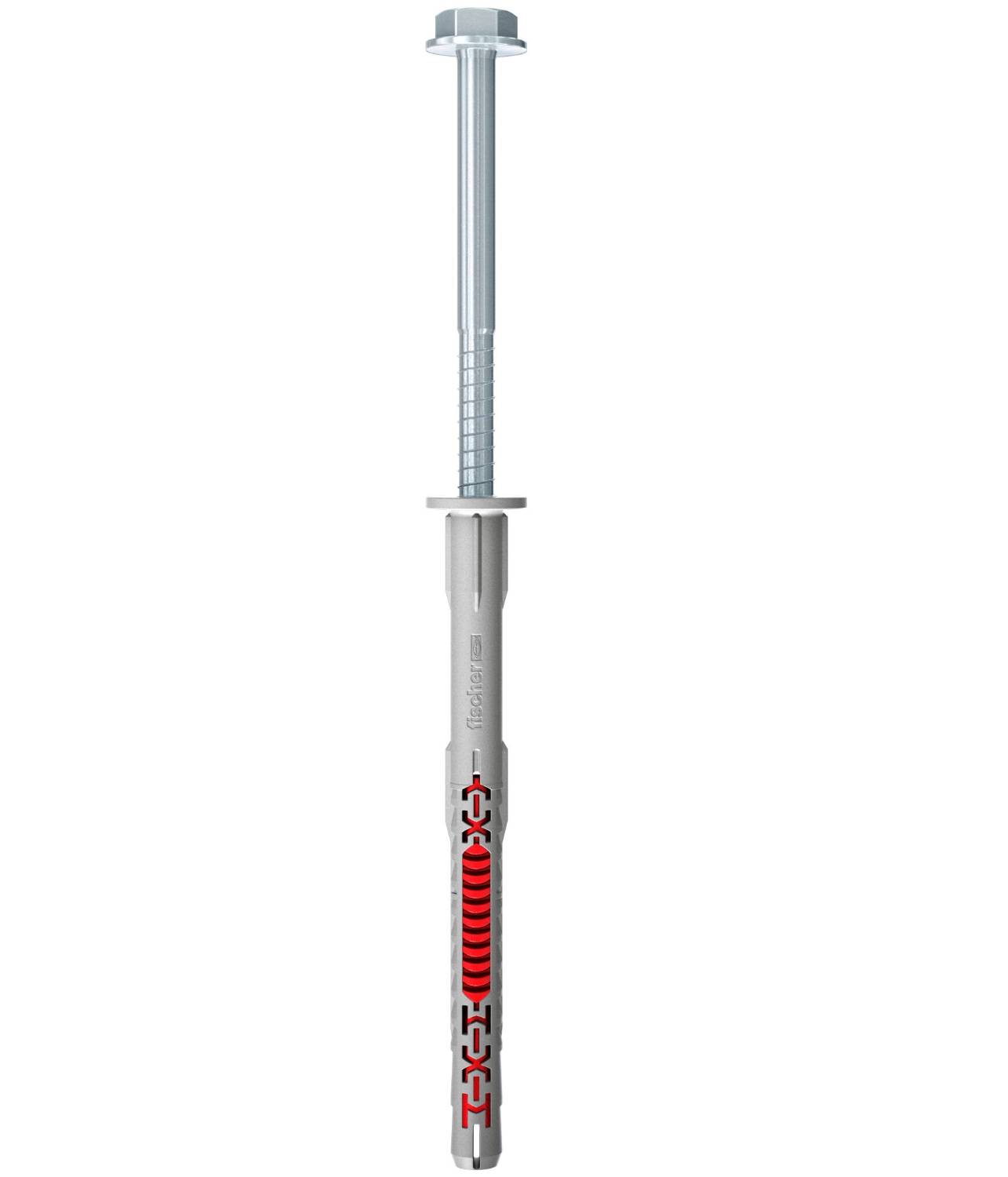

DuoXpand-FUS with hexagon head stainless steel safety screw, 10 mm (1)
DuoXpand-FUS with hexagon head stainless steel safety screw, 10 mm (1)
Frame fixings with or without countersunk or hexagon heads screws.
Application
For non-load-bearing systems in concrete, masonry and aerated concrete. DuoXpand with the countersunk screw is particularly suitable for fixing timber to concrete or masonry.
Applications include:
- Timber facade substructures;
- Carports;
- Wood constructions;
- Metal facade substructures;
- Fire rated applications
- Electrical installations;
- TV consoles;
- Windows frames;
- Kitchen cabinets;
- Hanging cabinets.
Description
Thanks to the clever combination of design and material, the fischer frame fixing DuoXpand bites optimally into all building materials.
While the grey main body, made of high-quality nylon provides a strong hold, the red material component offers additional security in the drill hole.
Features and benefits:
- Approved according to ETA as a multiple fixing for non-load-bearing systems in concrete, masonry and aerated concrete.
- The range includes diameters 8 and 10 mm each with fischer safety screws made of zinc-plated steel and stainless steel, countersunk head and hexagonal head with moulded-on washer.
- Anchor lengths up to 230 mm.
- Fire rated applications on concrete and masonry.
- DuoXpand with the countersunk screw is particularly suitable for fixing timber to concrete or masonry.
General information
Color | Grey Silver |
Finish | Zinc plated Stainless steel |
Material | Steel Stainless steel Nylon |
Shape | Circle |
Length | 80 mm 100 mm 120 mm 140 mm 160 mm |
Width | 8 mm 10 mm |
Uniclass | |
CAWS | G20/580 Framing anchors G20/45 Framing anchors N11/340 Worktops Z20/305 General fixings V90/335 Cable baskets N11/10 Fitted base units and wall units L10/782 Fixing of aluminium frames N11/380 Purpose-made units Z20/350 Plugs Z20/30 General fixings H43/219 Fasteners H31/37 Fasteners N10/135 Storage and display units L10/781 Fixing of steel frames N11/310 Fitted base units N11/20 Worktops L10/780 Fixing of wood frames N11/370 Shelving L10/783 Fixing of PVC-U frames N11/320 Fitted wall units H32/213 Fasteners H31/219 Fasteners H30/219 Fasteners H43/34 Fasteners L10/784 Fixing of composite frames H32/213 Fasteners V90/330 Cable trays |
SKU Code | 562149, 562150, 562151, 562152, 562153, 562154, 562155, 562156, 562157, 562158, 562159, 562160, 562161, 562162, 562163, 562164, 562165, 562166, 562167, 562168, 562169, 562170, 562171, 562172, 562173, 562174, 562175, 562176, 562177, 562178 |
Specification data - Framing fasteners
Certification | European Technical Assessment ETA 21/0324. |
Screw material | Stainless steel. Manufacturer guidanceConsult manufacturer's literature for further details. |
Sleeve material | Nylon. |
Head arrangement | Hexagon bolt with TX socket. Guidance for specification option: With moulded washer and integrated bit recess. |
Anchor length | 80 mm. Guidance for specification option: Minimum drill hole depth for through fixings: 90 mm. 100 mm. Guidance for specification option: Minimum drill hole depth for through fixings: 110 mm. 120 mm. Guidance for specification option: Minimum drill hole depth for through fixings: 130 mm. 140 mm. Guidance for specification option: Minimum drill hole depth for through fixings: 150 mm. |
Thread diameter | 8 mm. Guidance for specification option: Drill hole diameter: 10 mm. |
Sustainability data
Material | Steel Stainless steel Nylon |
