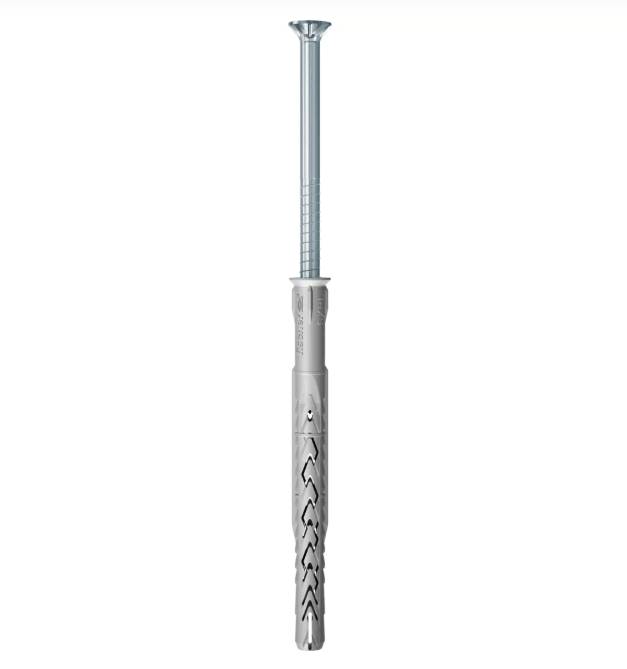

SXRL Frame Fixing

Frame fixings with or without countersunk or hexagon heads screws, the fischer frame fixing SXRL is the most versatile element in the assortment.

Features and benefits:

• The excellent retention values in all building materials, up to three anchorage depths, diameters of 8, 10 and 14 mm and fixing lengths of up to 360 mm enable a wide range of applications.
• The European Technical Approval governs multiple use for the fixing of non-structural systems in concrete, masonry and aerated concrete.
• The SXRL 10 is also approved as single-point fixing in concrete, SXRL 10 and 14 for stand-off installations of façades.
• The SXRL is offered with fischer safety screws made from zinc-plated steel and stainless steel and with a countersunk head and hexagonal head with moulded washer.
• The two expansion elements combine to form one long expansion element in aerated concrete and solid building materials.
• In the case of fixings in thin-walled perforated brick, the first expansion zone expands at the first fillet and spreads between the first and second fillet.
• The second expansion zone only expands slightly at the second fillet, and does not start to spread until behind the fillet.
