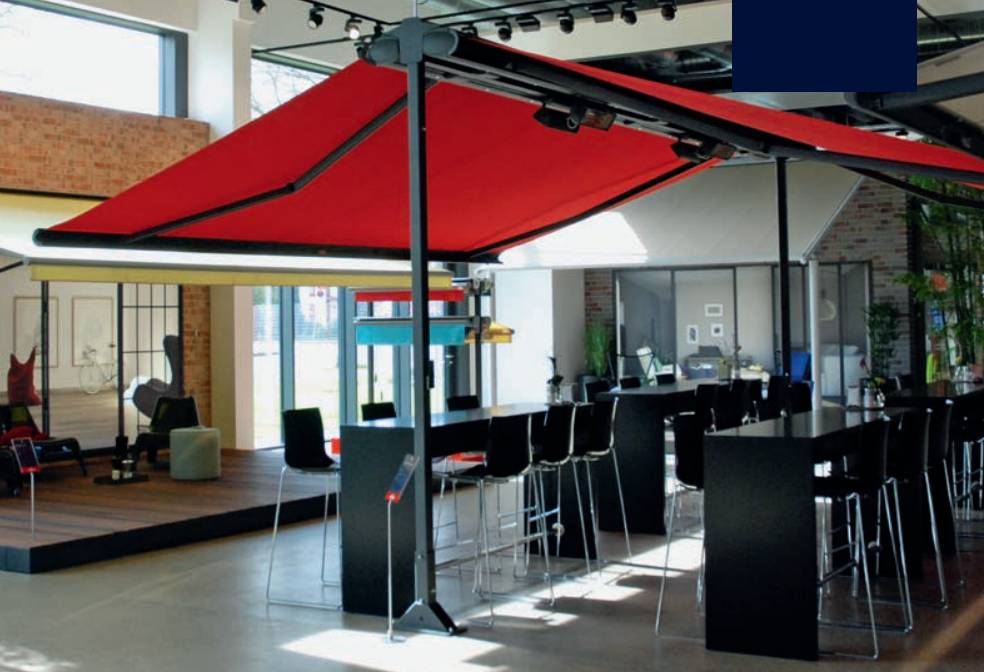

Duofix - Construction for Stand-alone Awnings
Verified by manufacturer 10 months ago
Opal Design II
Opal Design II
Strong and robust frame system suitable for all applications wherever a large area needs to be covered.
Application
Awning frame system suitable for all applications wherever a large area needs to be covered.
Description
Strong and robust frame system suitable for all applications wherever a large area needs to be covered. The back-to-back installation is the ideal solution for weather protection where a free-standing solution is needed
Choice of three different awning options for the Duofix.
In all cases they are fitted either side of the framework resulting in a back to back free standing double awning.
Features and benefits:
- Awnings available: Opal Design II; Topas (with roof); Plaza Viva.
- Integrated lighting (Opal Design II LED only). LED bars also available.
- Robust brackets ensure ideal fixing positions and can be moved axially.
- Range of accessories.
- Screw-in-base, made from stable galvanized and powder-coated steel.
- All awning options are also available as cassette awnings, specified separately.
General information
Color | Beige Black Blue Bronze Brown |
Finish | Textured Galvanized Powder-coated |
Material | Fabric Steel Aluminium |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | 3240 mm 3230 mm |
Warranty description | Other Guidance for specification option: Warranty offered by the approved specialist partner. Please consult manufacturer as various warranties are available. |
Uniclass | |
CAWS | B91/370 Pergola/ arbour B91/330 Canopy |
Specification data - Awnings
Classification data | |
Standard | To DIN 13561. |
Size (width x depth) | Guidance for specification option: Insert requirements:
Maximum shadeable area with one-part constructions: 45.5 m² (22.75 m² per side). |
Frame | |
Format | Retractable. |
Material | Manufacturer's standard. Manufacturer guidanceSee also Frame colour/ finish below. |
Canopy | |
Material | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Colour and pattern | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Headrail | |
Material | Manufacturer's standard, cassette 266 x 155 mm. Guidance for specification option: Cassette width x height. |
Colour | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Operation | |
Mode | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Power supply | Guidance for specification option: Consult manufacturer for requirements and insert details. |
Operating effort | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Mechanism endurance | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Wind resistance | To DIN 13561, class 1. Guidance for specification option: Tested up to wind strength 5 on the Beaufort scale. |
Total solar energy transmission (maximum) | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Accessories | None. Tempura heating system. Guidance for specification option: Consult manufacturer for details. Light options. Guidance for specification option: Consult manufacturer for options and insert requirements, Remote control. Guidance for specification option: Consult manufacturer for details. Safety shield. Guidance for specification option: Consult manufacturer for details. |
Frame colour/ finish | Guidance for specification option: Consult manufacturer's literature for options and insert requirements. More than 200 frame colours to choose from. |
LED lighting | Not applicable. |
Mounting | Screw-in base for mounting on floor. Slab base for mounting on floor. Manufacturer guidanceWall brackets also available, consult manufacturer for details. Multi-section bases where applicable. |
Total height | Approx. 3240 mm. To bottom edge of crossbeam: approx. 3000 mm. Guidance for specification option: Construction head clearance height should be at least 1900 mm at the front. |
Sustainability data
Country of product manufacture | Germany |
Material | Fabric Steel Aluminium |
