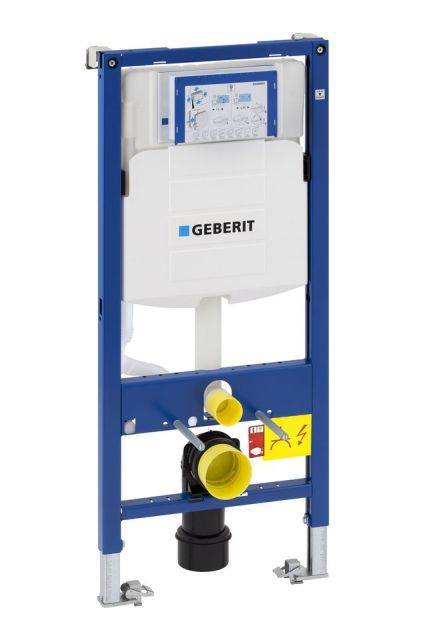

Duofix Frames For Wall Hung WCs with Sigma Concealed Cistern 120 mm

Application

  • For installation in a room-height Duofix system wall in front of a solid or drywall construction.
  • For mounting in front of a solid or drywall construction.
  • For a screed of 0–200 mm (not in room height applications).

Description

Application:

  • For installation in a room-height Duofix system wall in front of a solid or drywall construction.
  • For mounting in front of a solid or drywall construction.
  • For a screed of 0–200 mm (not in room height applications).

Characteristics:

  • Frame with C profile 40/ 40 mm.
  • Powder-coated frame, ultramarine blue.
  • Galvanized leg supports, steplessly adjustable 0–200 mm.
  • Frame with holes ø nine mm for fastening in wood frame construction.
  • Easy to clean coating on glass and metal.
  • Concealed cistern fully insulated against condensation.
  • Water supply connection at centre back or at the top.
  • Dual flush with Sigma80 touchless, Sigma60, Sigma50, Sigma20, Sigma10 touchless, Sigma01 or Bolero flush plates.
  • Single flush with Sigma10 or Tango flush plates.
  • Dual flush with pneumatic and mechanical buttons.
  • Single flush with touchless flush or pneumatic buttons.
  • For pans with contact surfaces smaller than 170 mm (see accessory 111.847.00.1).
  • Note: must be used with pans designed for low volume flush.
  • The cistern can be operated with used water (rainwater) provided it is passed through a filter system first.

General information

Uniclass 2015

Pr_40_20_93_62 Pre-plumbed installation framesPrimary

CAWS

N13/500 Preplumbed frame system

Specification data - Pre-plumbed installation frames

Product Reference

111.383.00.5

H112, Sigma cistern 120 mm.

111.384.00.5

H112, Sigma cistern 120 mm, without fixings or drainage.

111.321.00.1

H112, without cistern.

111.353.00.5

H112, Sigma cistern 120 mm, connection for odour extraction with filtration.

111.399.00.5

H112, Sigma cistern 120 mm, corner installation.

111.352.00.5

H112, Sigma cistern 120 mm, disabled installation.
