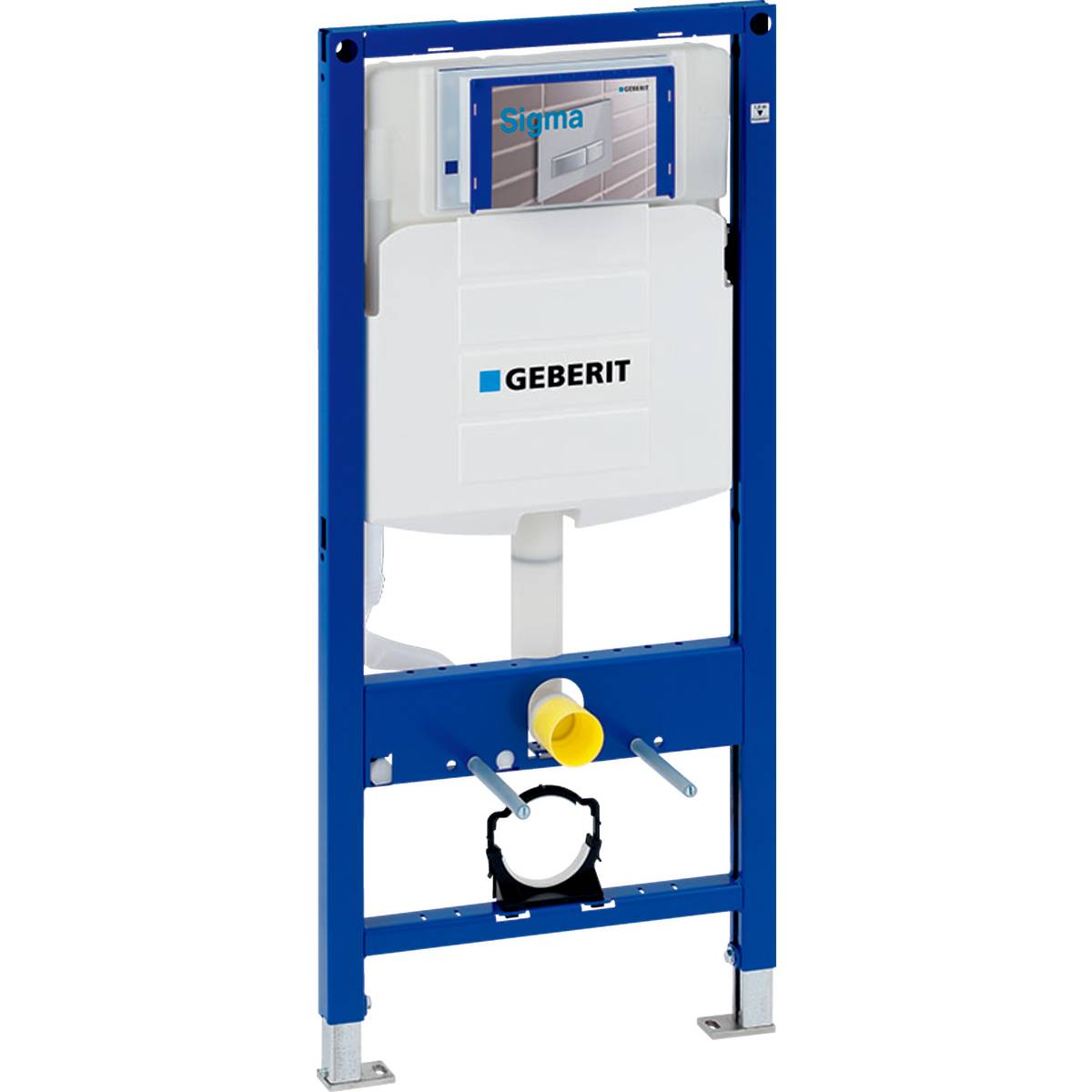

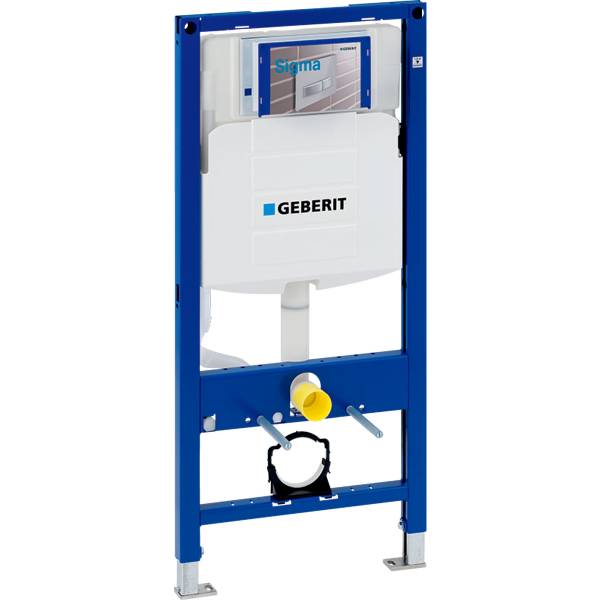

Duofix frame for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm

Duofix frame for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm

Verified by manufacturer 8 months ago

Geberit Sales Ltd

Wall hung WC frame with concealed cistern.

Jump to:
+44 (0)1926 516800 www.geberit.co.uk

Application

Suitable:

  • For drywall construction.
  • For installation in part or room-height prewall installations.
  • For installation in room-height installation walls.
  • For installation in part or room-height Geberit Duofix system walls.
  • For wall-hung WCs with connection dimensions in accordance with EN 33:2011.
  • For wall-hung WCs with projection up to 62 cm.
  • For floor constructions 0–20 cm.

Description

Wall hung WC frame with concealed cistern.


Features and benefits:

  • Self-supporting frame, powder-coated.
  • Frame with ø 9 mm drilling holes for fastening in wood frame construction.
  • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces.
  • Galvanized feet.
  • Feet adjustable 0–20 cm.
  • Non-slip leg supports.
  • Rotatable foot plates.
  • Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails.
  • Connection bend can be mounted without tools at different depths, adjustable range 45 mm.
  • Fastening for connection bend, sound-absorbing.
  • Concealed cistern with front actuation.
  • Concealed cistern, fully insulated against condensation.
  • Cistern fulfils standard requirements in accordance with EN 14055, Class II.
  • Immediate post flush possible with factory setting.
  • Flush bend fitted.
  • Cistern rotatable by 180° for access from service room.
  • Tool-free installation and maintenance work on concealed cistern.
  • Water supply connection on the rear or top centre.
  • Protection cover box for service opening protects against moisture and dirt.
  • Protection box for service opening can be cut to length.
  • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets.
  • With fastening option for electrical connection.
  • Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame.
  • Flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush. Note: must be used with pans designed for low volume flush.
  • Without wall fixings or drainage bend or 90 mm HDPE adaptor.
  • The cistern can be operated with used water (rainwater) provided it is passed through a filter system first.
  • Cistern can be reversed to give access from behind in a duct situation when flushed with pneumatic buttons or touchless flush.


Scope of delivery:

  • Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel.
  • Protection box for service opening.
  • Connection set for WC, ø 90 mm.
  • Protection plug.
  • Two threaded rods M12.
  • Fastening material.


General information

Finish

Powder-coated

Shape

Rectangle

Width

500 mm

Height

1120 mm

Uniclass

Pr_40_20_93_62 Pre-plumbed installation framesPrimary

CAWS

N13/66 Pre-plumbed frame system

N13/500 Pre-plumbed frame system

Specification data - Pre-plumbed installation frames

Form

Support frames with cistern.

Size

Height x width x thickness.

1120 x 500 x 120 mm.

Accessories

Not required.

111.863.00.1, Fire protection set for Geberit Duofix element for wall-hung WC.

111.844.00.1, Duofix set of wall anchors for single and system installation.

111.869.00.1, Duofix fastening set for stud clearance 50–57.5 cm.

242.001.00.1, Concealed outlet for drywall and solid wall construction.

111.848.00.1, Duofix set of foot extensions for floor construction 20–40 cm.

111.847.00.1, Set of support brackets for WC ceramic appliances with small contact surfaces.

111.815.00.1, Duofix set of wall anchors for single installation.

Flush volume

5.8L and 3L (factory setting).

Flush volume small, adjustment range (2–4L).

PressureRange

0.1-10 bar (flow pressure).

MaximumOperatingTemperature

+25°C.

Standards

To EN 14055, Class 2.
