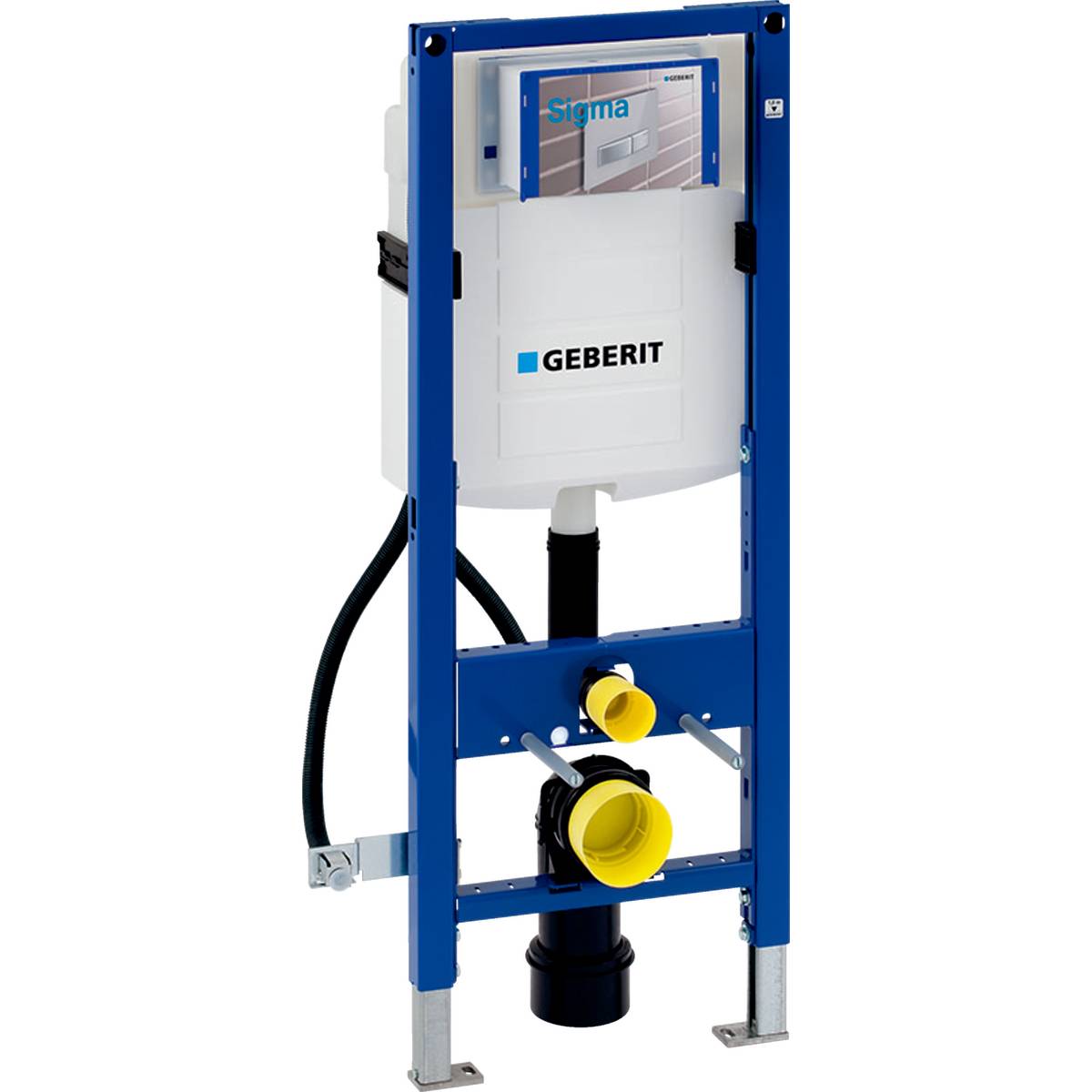

Duofix frame for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm, less-abled installation

Duofix frame for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm, less-abled installation

Verified by manufacturer 8 months ago

Geberit Sales Ltd

Wall hung WC frame with concealed cistern.

Jump to:
+44 (0)1926 516800 www.geberit.co.uk

Application

  • For drywall construction.
  • For installation in part or room-height prewall installations.
  • For installation in room-height installation walls.
  • For installation in part or room-height Geberit Duofix system walls.
  • Suitable for less-abled installation.
  • For wall-hung WCs with connection dimensions in accordance with EN 33:2011.
  • For wall-hung WCs with large projection up to 700 mm.
  • For floor constructions 0–200 mm.

Description

Characteristics:

  • Self-supporting frame, powder-coated.
  • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces.
  • Frame width reduced for placement of support handles next to the element.
  • Adjustable installation height of WC during the installation phase, 410–460 mm.
  • Galvanized feet.
  • Feet adjustable 0–200 mm.
  • Non-slip leg supports.
  • Rotatable footplates.
  • Footplate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails.
  • Connection bend can be mounted without tools at different depths, adjustable range 45 mm.
  • Fastening for connection bend, sound-absorbing.
  • Concealed cistern with front actuation.
  • Concealed cistern, fully insulated against condensation.
  • Cistern fulfils standard requirements in accordance with EN 14055, Class II.
  • Immediate post flush possible with factory setting.
  • Tool-free installation and maintenance work on concealed cistern.
  • Water supply connection on the rear or top centre.
  • Protection cover box for service opening protects against moisture and dirt.
  • Protection box for service opening can be cut to length.
  • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets.
  • With fastening option for electrical connection.

General information

Color

Blue

Height

1120 mm

Width

425 mm

Finish

Powder-coated

Material

Steel

Shape

Rectangle

Size

425 x 170 x 1120 mm

Uniclass

Pr_40_20_93_62 Pre-plumbed installation framesPrimary

CAWS

N13/500 Pre-plumbed frame system

Specification data - Pre-plumbed installation frames

Form

Support frames with cistern.

Materials

Galvanized steel.

Size

1120 mm.

Height.

Accessories

Not required.

111.847.00.1, Geberit set of support brackets for WC ceramic appliances with small contact surfaces

111.815.00.1, Geberit Duofix set of wall anchors for single installation

111.844.00.1, Geberit Duofix set of wall anchors for single and system installation

111.869.00.1, Geberit Duofix fastening set for stud clearance 50–57.5 cm

242.001.00.1, Geberit concealed outlet for drywall and solid wall construction.

Integral accessories

Water supply connection Rp 1/2"–R 1/2", compatible with MF, with integrated angle stop valve and hand wheel; Protection box for service opening; Connection set for WC, ø 90 mm; PE-HD 90° connection bend, ø 90 mm; PE-HD adaptor socket, ø 90/ 110 mm; 2 no. protection plugs; 2 no. threaded rods M12; Fastening material.

Flush volume

5.8 and 3 L.
